Alternate Gable Trim - Part #WS-453

This detail is rarely used. We recommend our most popular gable installation detail, 4 piece gable trim.

Gable trim is used to finish off the edge of your roof. It’s installed on the two high sides of the roof, not the low side of the roof that follows the pitch. There is also a kick-out on the bottom of the gable trim that will help direct water away from your wall.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d15c-1.jpg

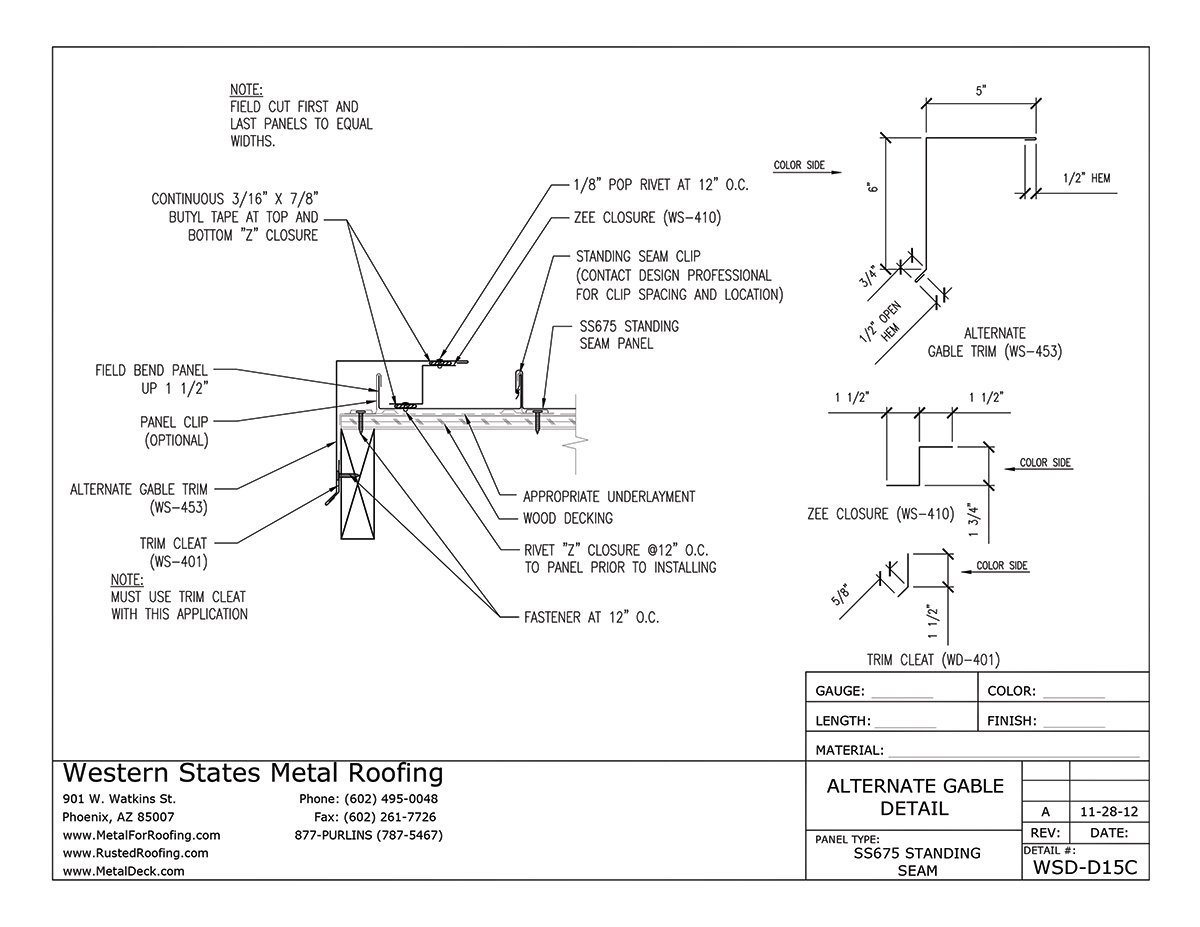

WS-453 - Alternate Gable Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-453-alternate-gable-trim-1.jpg

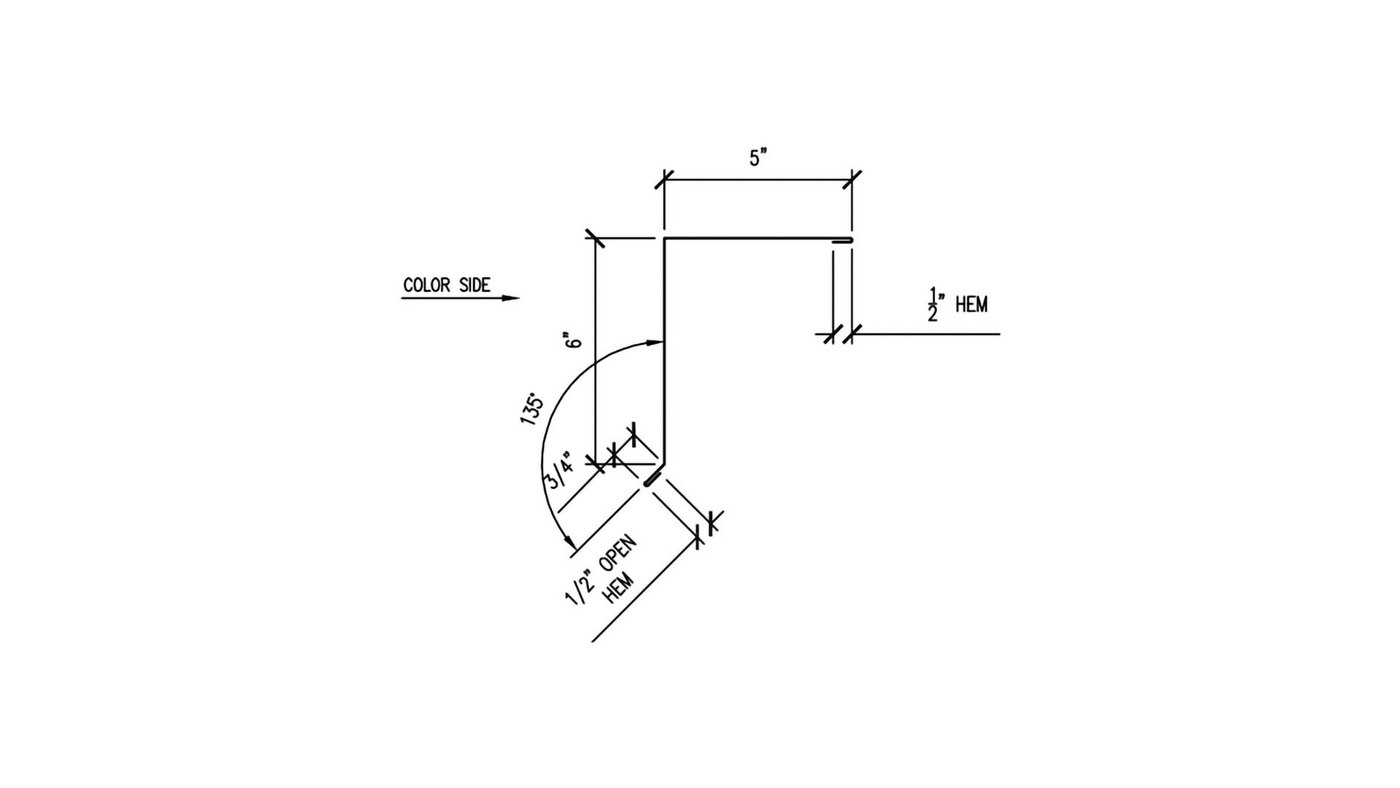

WS-453 Alternate Gable Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-410-zee-closure-1.jpg

WS-410 Zee Closure Dimensions

For every 10' of gable trim, you will need 10' of zee closure.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-401-trim-cleat-1.jpg

WS-401 Trim Cleat Dimensions

For every 10' of gable trim, you will need 10' of trim cleat.

Click To Enlarge

WS-453 - ALTERNATE GABLE - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

1 Piece Gable Trim - WS-453
1 Piece Zee Closure - WS-410
1 Piece Trim Cleat - WS-401
10 Pancake Head Screws (#10X1") NO Washer
Verify Metal To Wood
20 Rivets
20 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
1 1/4 Tube Butyl Sealant
1/4 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.
