LOOKING FOR STANDING SEAM METAL ROOFING INSTALLATION VIDEOS?

INSTALL LIKE A PRO

WESTERN LOCK® STANDING SEAM METAL ROOFING

Cricket/Floating Half Valley Detail - Part #WS-450

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d21-1.jpg

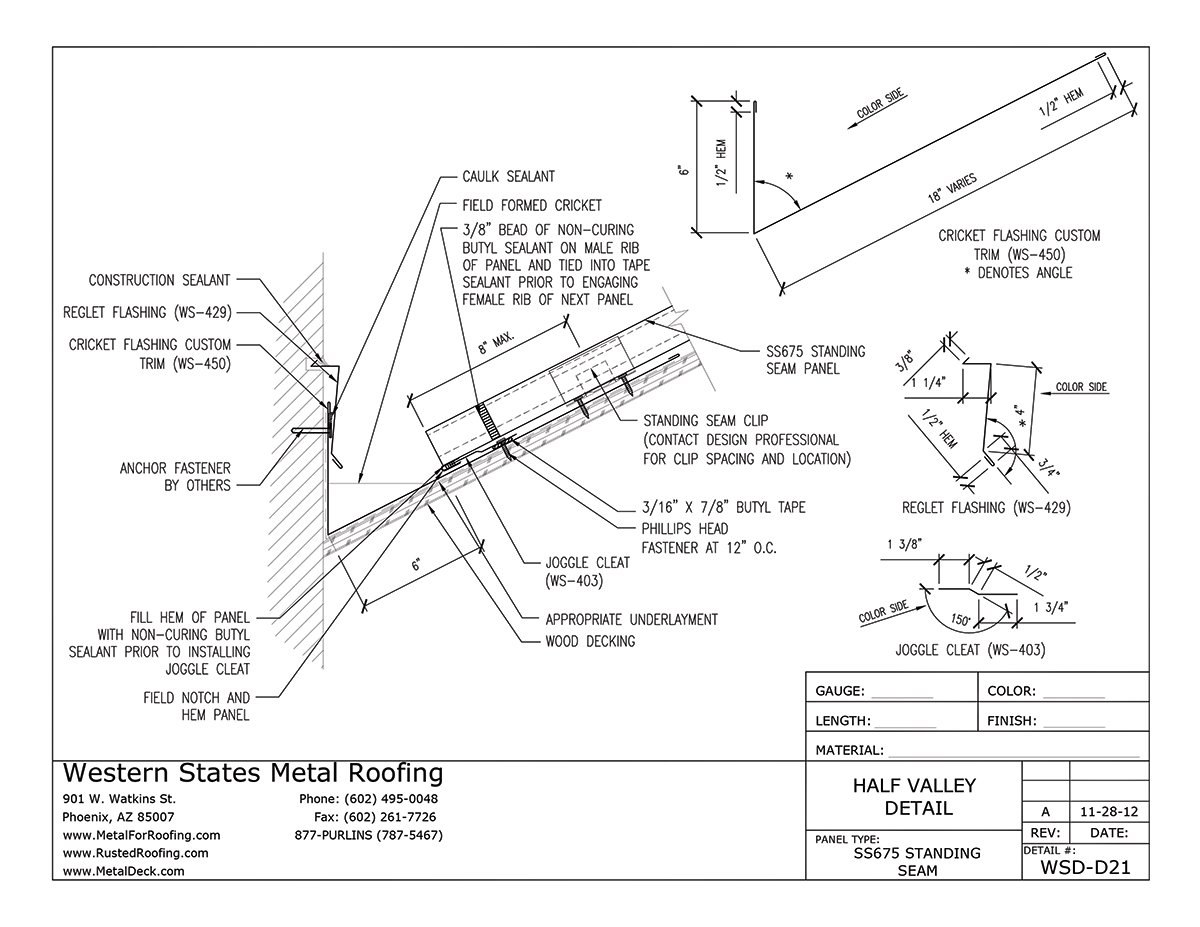

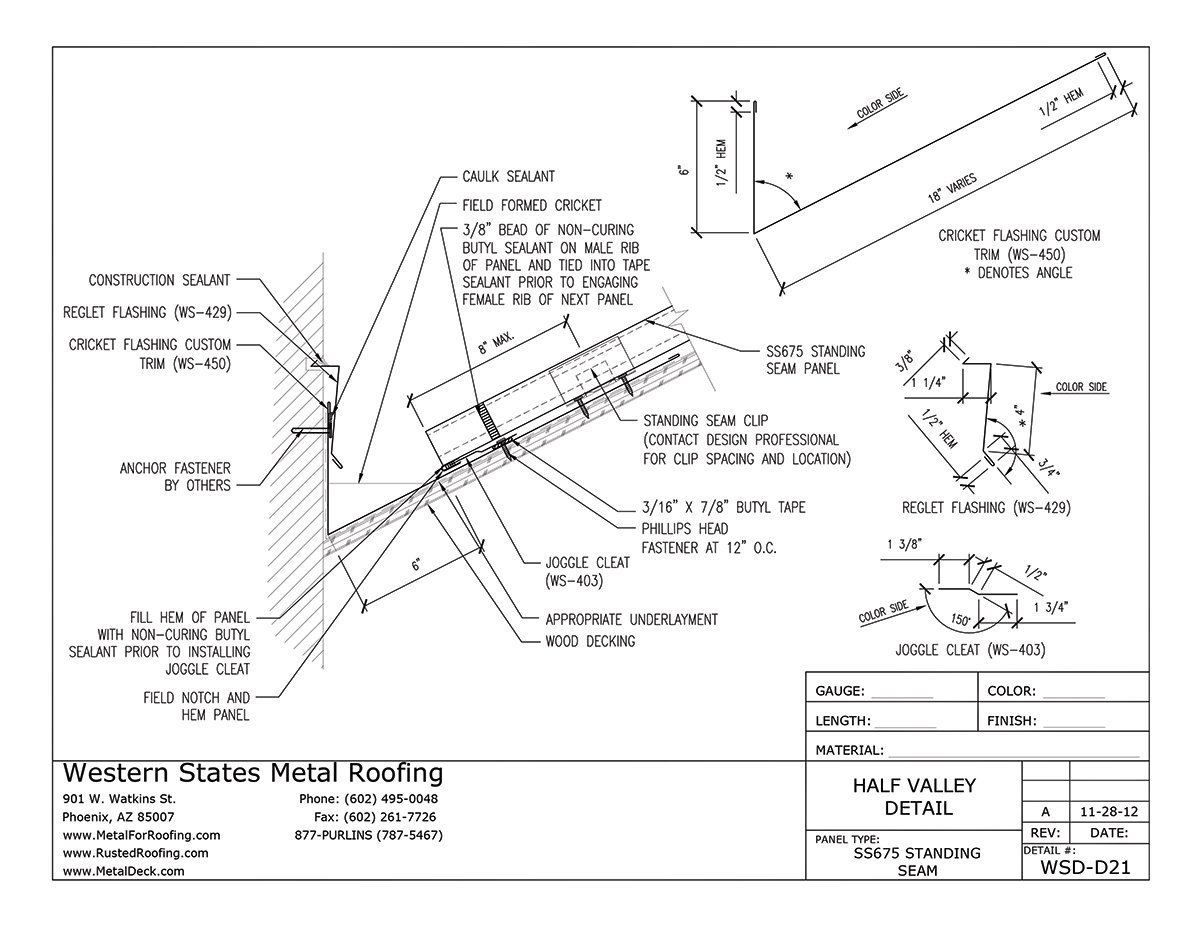

WS-450 - Cricket/Floating Half Valley Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d22-standing-seam-chimney-detail.jpg

Isometric Curb/Chimney Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-450-cricket-flashing-1.jpg

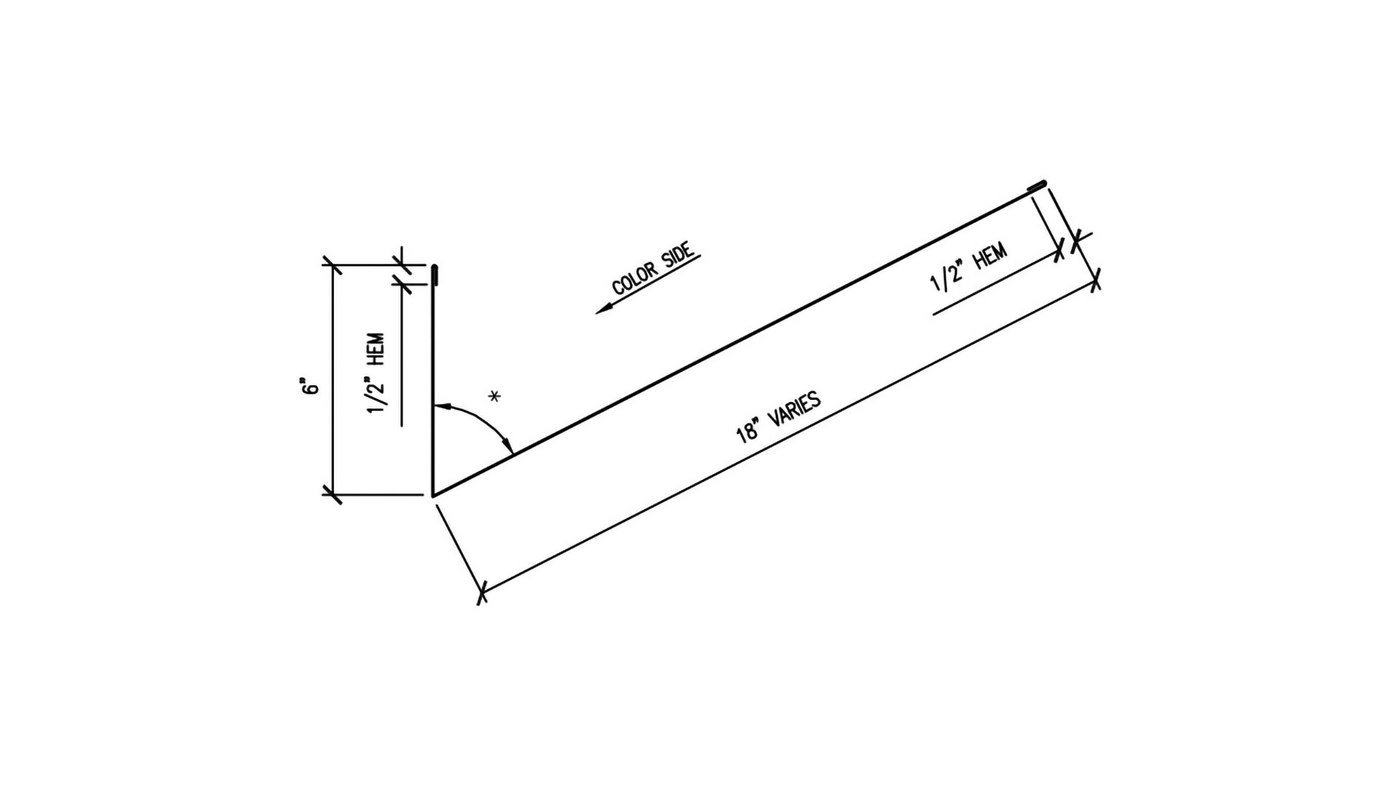

WS-450 Cricket Flashing Dimensions

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-429-reglet-flashing-1.jpg

WS-429 Reglet Trim Dimensions

For every 10' of cricket flashing, you will need 10' of reglet trim.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-403-joggle-cleat-1.jpg

WS-403 Joggle Cleat Dimensions

For every 10' of cricket flashing, you will need 10' of joggle cleat.

Click To Enlarge

WS-450 - CRICKET/FLOATING HALF VALLEY DETAIL - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

  • 1 Piece Cricket Flashing - WS-450
    Roof Pitch Required
  • 1 Piece Reglet Trim - WS-429
  • 1 Piece Joggle Cleat - WS-403
  • 28 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
  • 2 1/4 Tube Butyl Sealant
  • 1/2 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.
