LOOKING FOR STANDING SEAM METAL ROOFING INSTALLATION VIDEOS?

INSTALL LIKE A PRO

WESTERN LOCK® STANDING SEAM METAL ROOFING

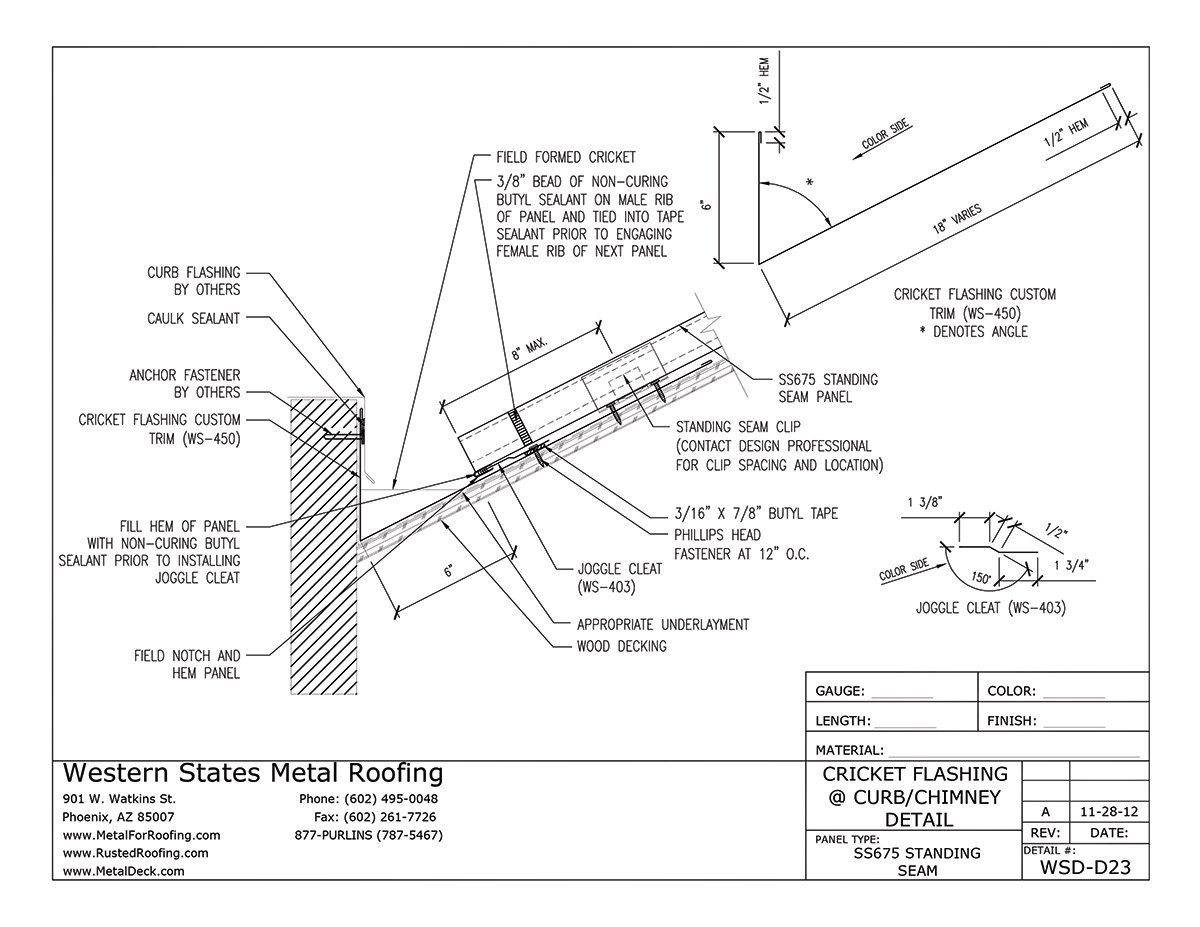

Curb/Chimney - Cricket Detail - Part #WS-450

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d23.jpg

WS-450 - Curb/Chimney Cricket Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d22-standing-seam-chimney-detail.jpg

Isometric Curb/Chimney Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-450-cricket-flashing-1.jpg

WS-450 Cricket Dimensions

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-403-joggle-cleat-1.jpg

WS-403 Joggle Cleat Dimensions

For every 10' of cricket flashing, you will need 10' of joggle cleat.

Click To Enlarge

WS-450 - CRICKET/FLOATING HALF VALLEY DETAIL - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

  • 1 Piece Cricket Flashing - WS-450
    Roof Pitch Required
  • 1 Piece Joggle Cleat - WS-403
  • 10 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 10 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
  • 2 1/4 Tube Butyl Sealant
  • 1/2 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:

DOWNLOAD INSTALLATION GUIDE

Just in case you forgot

ADDITIONAL ITEMS YOU MAY NEED...


Sharkskin Synthetic Roofing Underlayment

  • Ultra SA - Self Adhesive (Best)
    50 Year Warranty
    12 Months UV Resistance

  • Ultra - Non Adhesive (Better)
    50 Year Warranty
    12 Months UV Resistance

  • Comp (Good)
    25 Year Warranty
    6 Months UV Resistance

Learn More


Clips And Fasteners

Clips and fasteners for standing seam metal roofing panels.

  • Clips
  • Rivets
  • Fasteners
  • Metal To Wood
  • Metal To Metal
  • Lap Screws



Learn More


Snow Retention Systems

When snow accumulations begin to melt, the result can be catastrophic as the blanket of snow avalanches off the roof dumping tons of snow onto anything in its path.

It can damage landscape, gutters, adjacent roofs, vehicles and cause injury or death to passers-by. All of S-5!’s snow retention systems dramatically reduce these risks associated with rooftop avalanches while maintaining the clean lines of the roof.
