3 Piece Gable Trim - Part #WS-435

3 Piece gable trim is a difficult installation and should only be installed by professional roofing contractors. The 4 piece gable detail is an easier installation.

Gable trim is used to finish off the edge of your roof. It’s installed on the two high sides of the roof, not the low side of the roof that follows the pitch. There is also a kick-out on the bottom of the gable trim that will help direct water away from your wall.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d15a.jpg

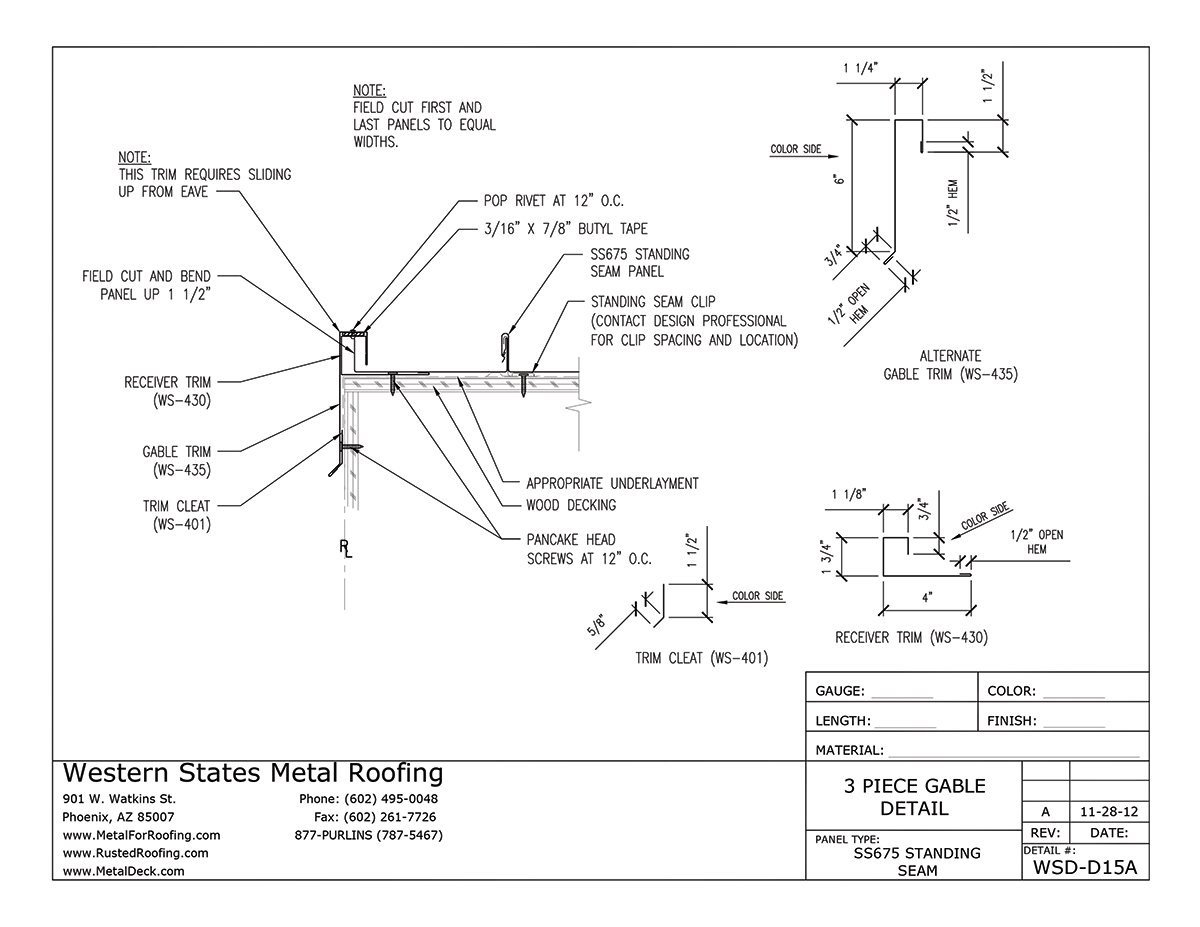

WS-435 - 3 Piece Gable Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-435-alternate-gable-trim-1.jpg

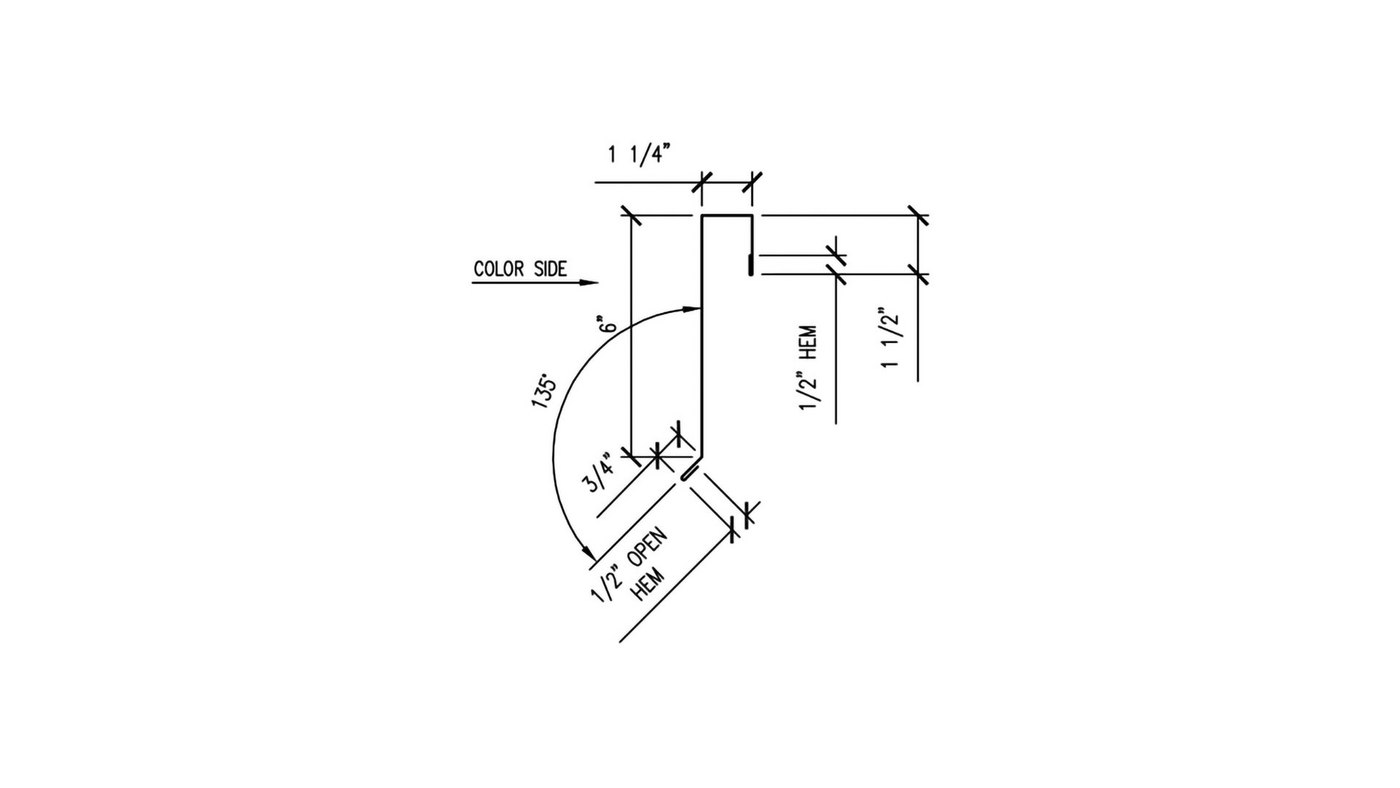

WS-435 Alternate Gable Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-430-receiver-trim-1.jpg

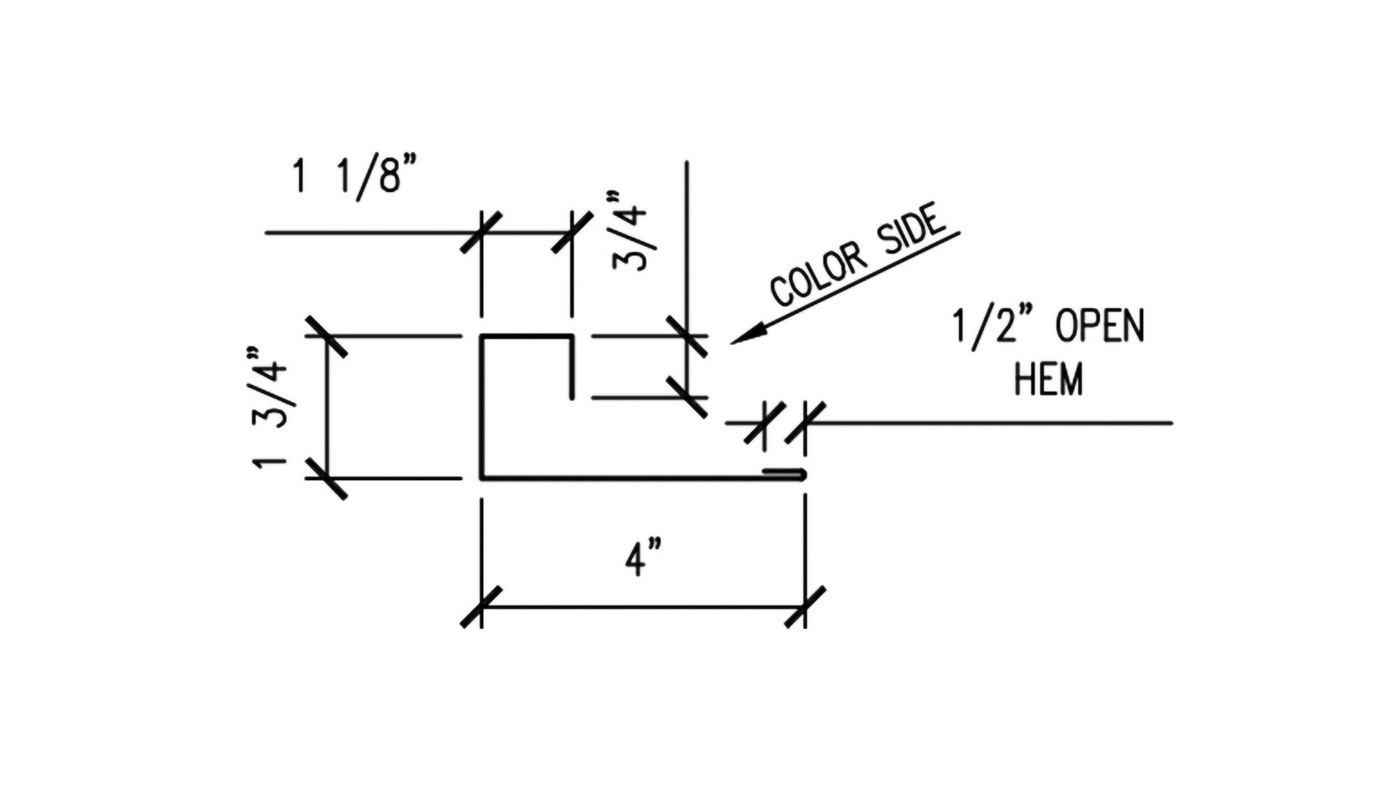

WS-430 Receiver Trim Dimensions

For every 10' of gable trim, you will need 10' of receiver trim.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-401-trim-cleat-1.jpg

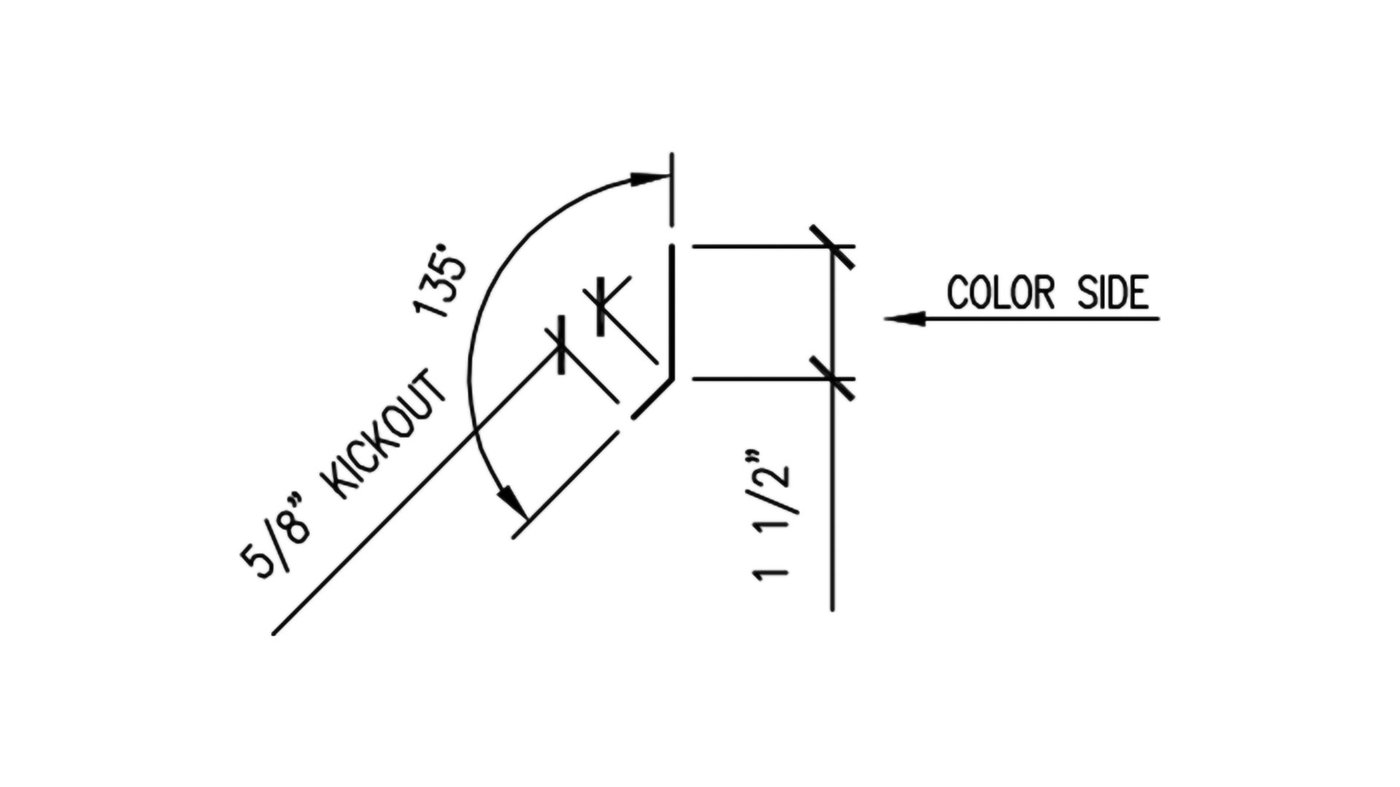

WS-401 Trim Cleat Dimensions

For every 10' of gable trim, you will need 10' of trim cleat.

Click To Enlarge

WS-435 - 3 PIECE GABLE - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

1 Piece Gable Trim - WS-435
1 Piece Receiver Trim - WS-430
1 Piece Trim Cleat - WS-401
20 Pancake Head Screws (#10X1") NO Washer
Verify Metal To Wood
10 Rivets
10 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
1/4 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:

DOWNLOAD INSTALLATION GUIDE

STANDING SEAM METAL ROOFING INSTALLATION VIDEOS

GABLE TRIM INSTALLATION VIDEOS

3 Piece Gable Trim Installation

A 3 Piece gable detail is a more difficult installation than a 4 piece gable. This detail should only be used by professional metal roofing contractors.

Step by step video with installation instructions that includes cutting and finishing the eave and ridge, overlapping, and fastening.

This video specifically covers gable/rake trim installation for snap lock and clip fastened standing seam metal roofing panel.

Watch Now

4 Piece Gable Trim Installation

The 4 Piece gable is our most popular gable detail for standing seam. When compared to a 3 piece gable it's a much easier installation.

Step by step video with installation instructions that includes cutting and finishing the eave and ridge, receiver trim, angle trim, overlapping, and fastening.

This video specifically covers gable/rake trim installation for snap lock and clip fastened standing seam metal roofing panel.

Watch Now
