LOOKING FOR STANDING SEAM METAL ROOFING INSTALLATION VIDEOS?

INSTALL LIKE A PRO

WESTERN LOCK® STANDING SEAM METAL ROOFING

Fixed Ridge Cap With Hems - Part #WS-405H

What Is A Fixed Ridge Cap?

Fixed ridge cap means that the standing seam panels will be pinned in place at the ridge. If you have a fixed point at the ridge, you will need a floating connection at the other end of the standing seam panel. In most instances, this will mean using an eave with a bullnose drip edge or eave with a joggle cleat.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/detail-wsd-d7.jpg

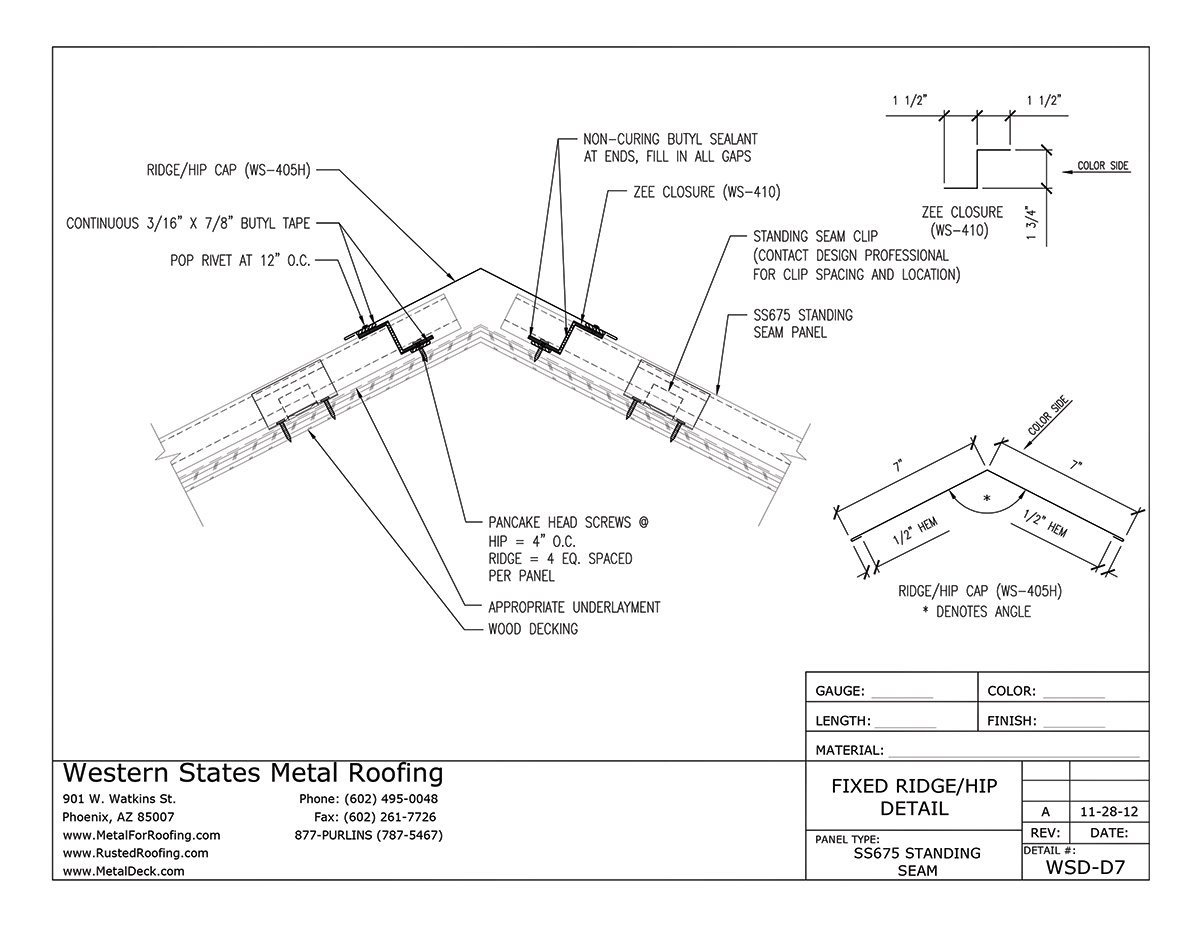

WS-405H Ridge Cap Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-405h-7-inch-ridge-hip-cap-flashing-2.jpg

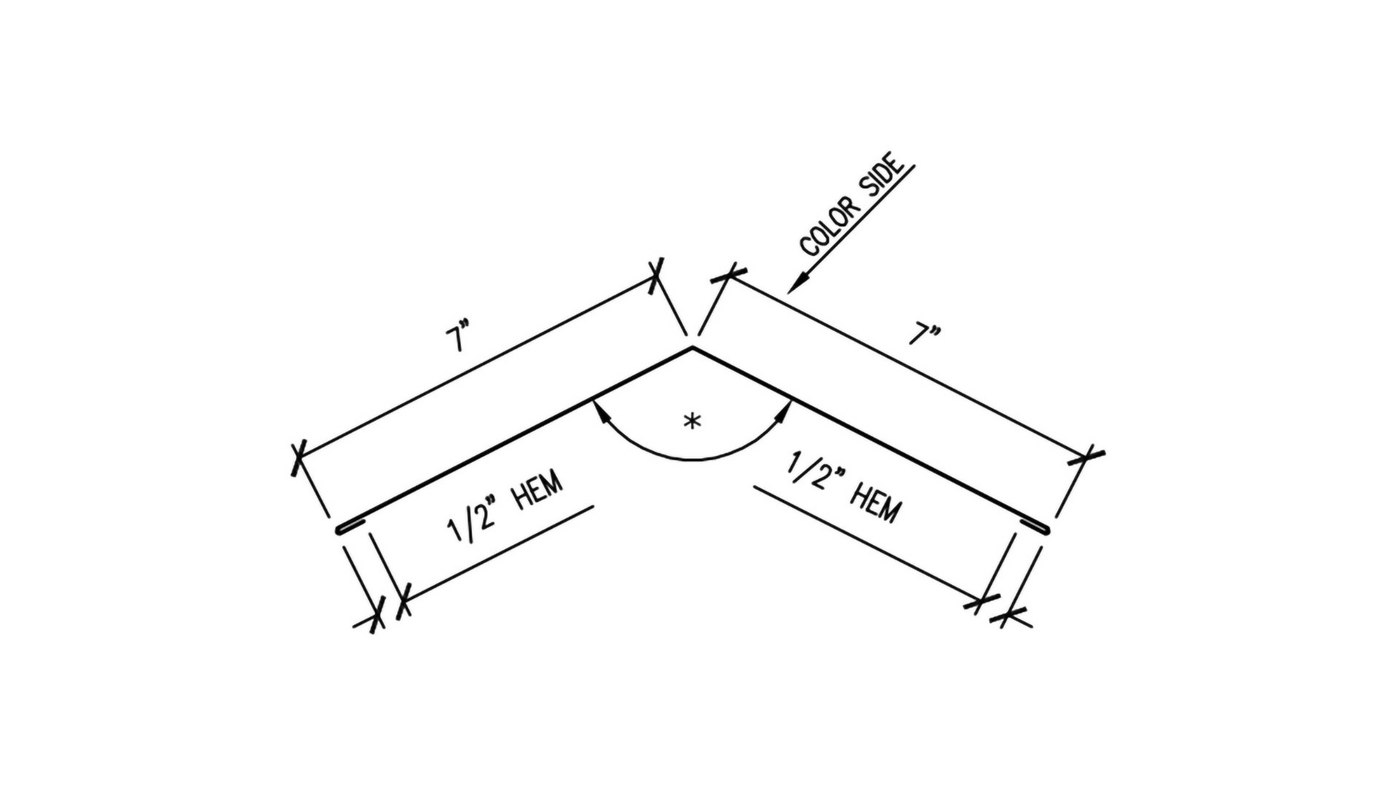

WS-405H Ridge Cap Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/standing-seam/part-ws-410-zee-closure-1.jpg

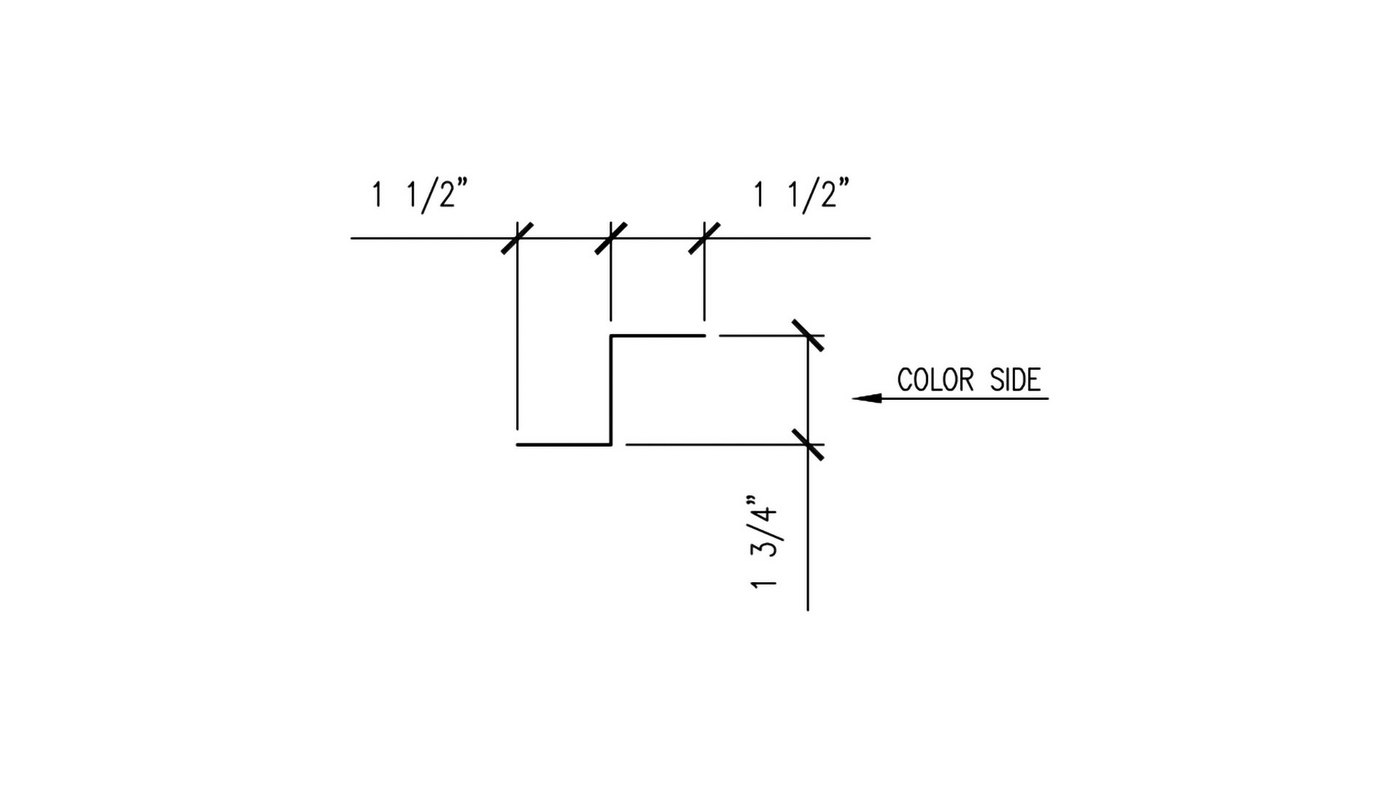

WS-410 Zee Closure Dimensions

For every 10' of ridge cap, you will need 20' of zee closures.

Click To Enlarge

WS-405H - FIXED RIDGE CAP - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List



  • 1 Piece Ridge Cap Trim - WS-405H
    Roof Pitch Required
  • 2 Pieces Zee Closure - WS-410
  • 56 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood or Metal To Metal
  • 20 Rivets
  • 40 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
  • 2 1/4 Tubes Of Butyl Sealant
  • 1/4 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:





DOWNLOAD INSTALLATION GUIDE

STANDING SEAM METAL ROOFING INSTALLATION VIDEOS

RIDGE CAP INSTALLATION VIDEOS


How To Install Unvented Ridge Cap

Step by step video with installation instructions that includes: cutting and finishing the ridge cap at the gable ends ends, overlaps, and fastening.

This video specifically covers fixed ridge cap installation for snap lock and clip fastened standing seam metal roofing panel.

Watch Now


How To Install Vented Ridge Cap

Step by step video with installation instructions that includes: zee closure installation, perforated vent strips, cutting and finishing the ridge cap ends to fit the gable trim, overlaps, and fastening.

This video specifically covers fixed and vented ridge cap installation for snap lock and clip fastened standing seam metal roofing panel.

Watch Now
