Standing Seam Metal Roofing Panels

Do you want instant curb appeal? Standing seam metal roofing has a distinctive look that will complement many home styles. Over 100 colors to choose from. Buy standing seam roofing directly from the manufacturer and save.

Get A Quote Free Metal Samples

Types of standing seam metal roofing
10 Benefits of a Standing Seam Roof

See All Available Trim & Flashing

Click here

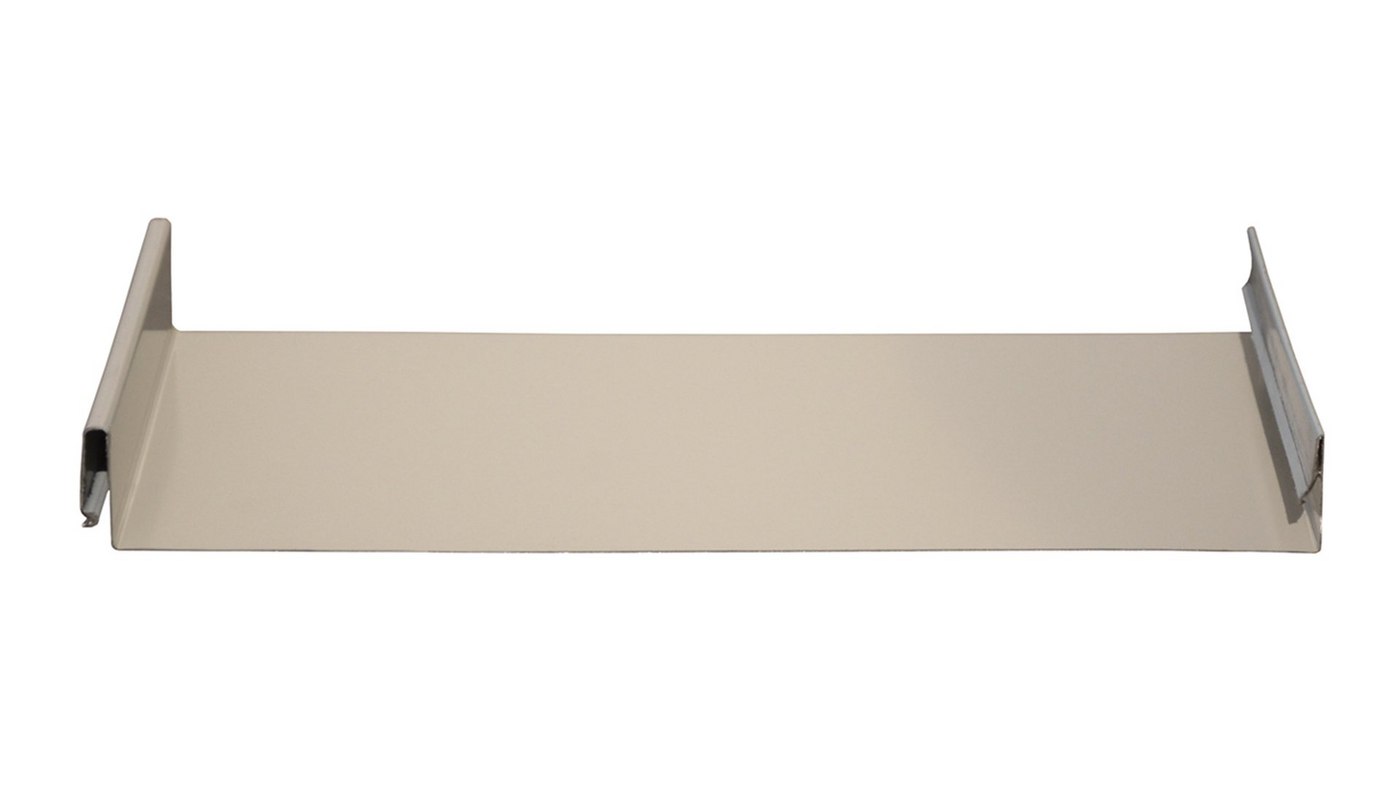

STANDING SEAM CONCEALED FASTENER PANELS

Types of Standing Seam Metal Roofing Panels

There are 3 types of standing seam metal roofing panels and all of them are a concealed fastener system. This means that the fasteners on each metal panel are not visible or exposed to the weather. Concealed fastener panels are more weather-tight and expensive when compared to exposed fastener panels.

  • Mechanically Seamed - The panel edges are connected together with a roof seamer.
  • Snap Lock Panels With Concealed Fasteners And Clips - The clips attach to the panel and fasten directly onto the roof deck.
  • Nail Strip or Nail Flange - A standing seam panel that does not use clips.
https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/images/galleries/gun-metal-gray/gun-metal-MS2.jpg

MS2® Mechanically Seamed

This is the most weather-tight style of standing seam metal roofing. It's ideal for very low sloped roofs with a pitch as low as .5" to 1":12". It's a difficult panel to install and is rarely installed by DIY roofers.

  • Mechanically Fastened Seams
  • Double Lock Or Single Lock
  • 2" Seam Height
  • The Most Expensive Standing Seam

See Panel Details

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/images/galleries/gun-metal-gray/standing-seam-gun-metal-gray-1.jpg

Western Lock® Standing Seam

This type of standing seam panel is the best all-around solution when you consider the performance of the panel, cost, and ease of installation.

  • Snap Lock With Concealed Fasteners And Clips
  • 1.75" Seam Height
  • Our Most Popular Standing Seam

See Panel Details

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/images/galleries/gun-metal-gray/gun-metal-Nail%20Strip.jpg

Western Seam® Nail Strip

Nail strip roofing panels are a snap lock system that uses screws and does not have clips. The male flange has one inch slots that are spaced 6 inches apart and fastened directly to the roof deck.

You sacrifice a lot of performance when you eliminate the clips. It's slightly less expensive and a little easier to install, but it's inferior to MS2® or Western Lock®

  • Nail Strip or Nail Flange System
  • 1" or 1.5" Seam Height



See Panel Details

Standing Seam FAQ

Standing Seam Frequently Asked Questions

At Western States Metal Roofing, we're often asked a number of questions related to standing seam metal.

What is Pre-Notching Standing Seam?

pre-notched-standing-seam-thumb

To save you time, money, and labor, we now have pre-notched standing seam panels available for purchase:

The cost of pre-notching will be less than the labor cost of manually notching the panels on the job-site.

  • 24 Gauge & 26 Gauge = $2.50 Per Panel
  • 22 Gauge = $4.50 Per Panel

LEARN MORE ABOUT PRE-NOTCHING

Watch Video Now

pre-notched-standing-seam-thumb

How much does standing seam metal roofing cost?

standing-seam-cost

A standing seam metal roofing system will cost about twice as much as corrugated metal roofing.

  • If you purchase from a standing seam metal roofing manufacturer, the panels will cost $2 to $4 per sq. ft.
  • The total price including materials and installation will cost $8 to $14 per sq. ft

Watch Video Now

standing-seam-cost

What gauge is standing seam metal roofing?

best-metal-roofing-gauge

The vast majority of standing seam metal roofing jobs are 24 gauge steel. It’s a premium roofing system that’s expected to last 40 plus years. The components must be designed to work as a whole. Standing seam roofing panels are the most expensive panels and use the best paint system. It wouldn’t make sense to use a light gauge steel for minimal savings and lesser performance.

Watch Video Now

best-metal-roofing-gauge

What is the difference between standing seam vs corrugated metal roofs?

standing-seam-vs-exposed-fastener-video

The biggest difference between these two classic metal roofing systems is the method of attachment. Standing seam panels are a concealed fastener system which means the fasteners don’t penetrate the face of the panel during installation and they’re not visible. Corrugated panels are an exposed fastener panel, meaning that you need to drill a screw hole through the panel to fasten it to the structure.

Watch Video Now

standing-seam-vs-exposed-fastener-video

What is oil canning on a metal roof?

stiffening-ribs-striations-thumbnail

Have you ever seen a metal roofing material that looked like it was wrinkled? This is known as oil canning and it's common on standing seam metal roofs.

Oil canning on a standing seam metal panel is an aesthetic issue only. Striations, stiffening ribs, and clip relief can disguise the appearance of oil canning on your metal roofing panels.

Watch Video Now

stiffening-ribs-striations-thumbnail

What Is A Standing Seam Metal Roof?

Standing seam metal roofing has a flat area in the middle and raised vertical seams at both ends. It's a concealed fastener system, meaning that the fasteners are not visible or exposed to the weather. It's water-tight and long lasting, but it's also an expensive panel system.

What Is Snap Lock Standing Seam Metal Roofing?

Snap Lock is a concealed fastener standing seam metal roofing that has a male and female leg that snaps together. It's available as a clip fastened or nail flange fastened panel.

How Do You Install A Standing Seam Roof System?

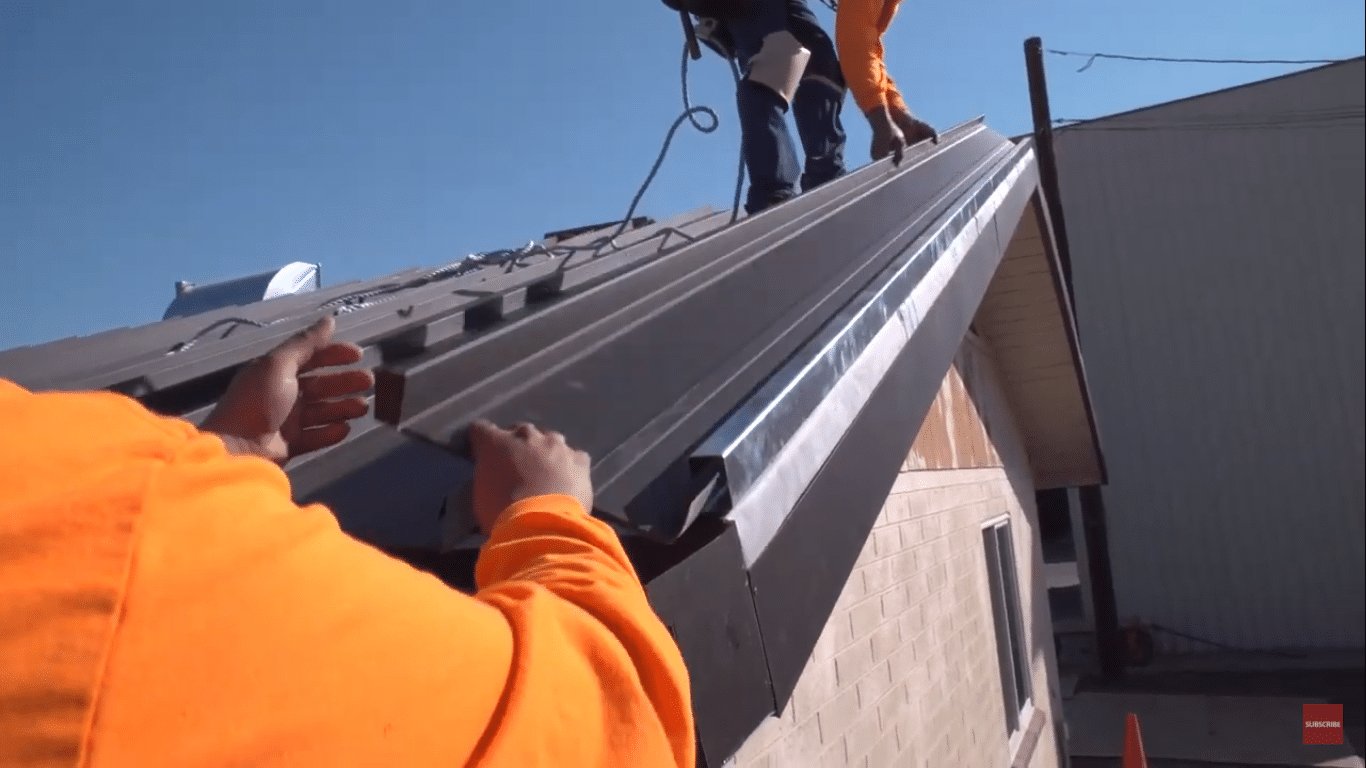

Standing Seam Metal Roof Installation Clip Attachment-4

A metal roof installation for standing seam panels is a detailed process. To help make it easier, we have created a video series that goes over how to do each step of a standing seam roof installation to guide you through the process.

GO TO STANDING SEAM INSTALLATION VIDEO PAGE

Standing Seam Metal Roof Installation Clip Attachment-4
