Standing Seam Panel Hem Detail

After the eave trim is installed you will need to bend the standing seam panels so that they will hook onto the offset cleat. The standing seam roofing will then need to be attached with panel clips and the first and last sheets need to be cut and bent so that they will attach to the gable receiver trim.

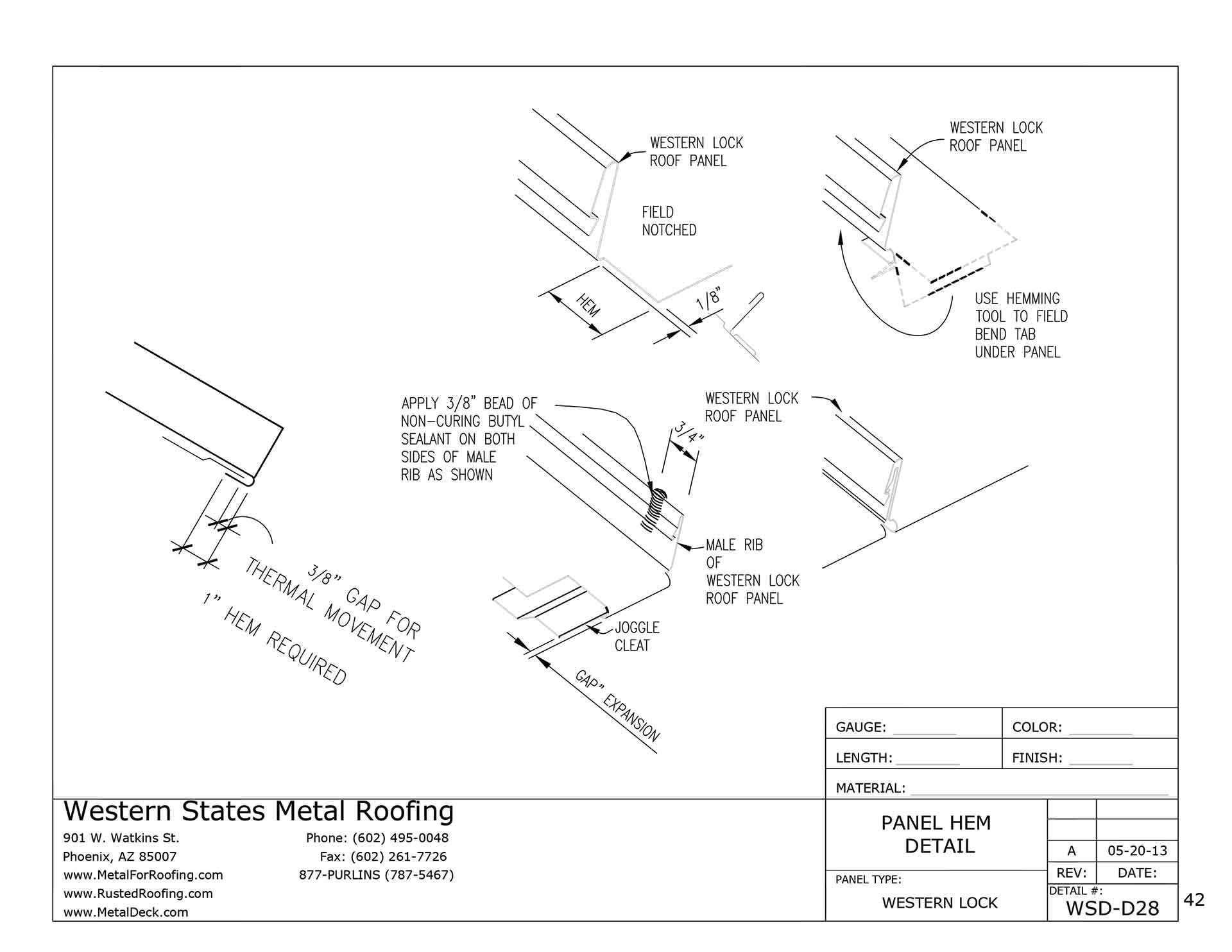

Panel Hem Detail

CLICK TO ENLARGE

STANDING SEAM METAL ROOFING INSTALLATION VIDEOS

Bending Panels At The Eave

First and last sheet placement including clip attachment and folding the panels at the eave ends.

This video specifically covers installation for snap lock and clip fastened standing seam metal roofing panel.

Watch Now
