LOOKING FOR CORRUGATED METAL ROOFING INSTALLATION VIDEOS?

INSTALL LIKE A PRO

Gutter FOR 7/8" CORRUGATED METAL ROOFING

Post Hung Sculptured Gutter - Part #WS-17

A post hung gutter is a gutter that’s installed after the installation of the roof. Its purpose is to divert water off the roof and away from the walls and foundation of a building. When used on a metal roof, it’s a less weather-tight system than a pre-hung gutter.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/part-ws-17-sculpture-post-hung-gutter-1.jpg

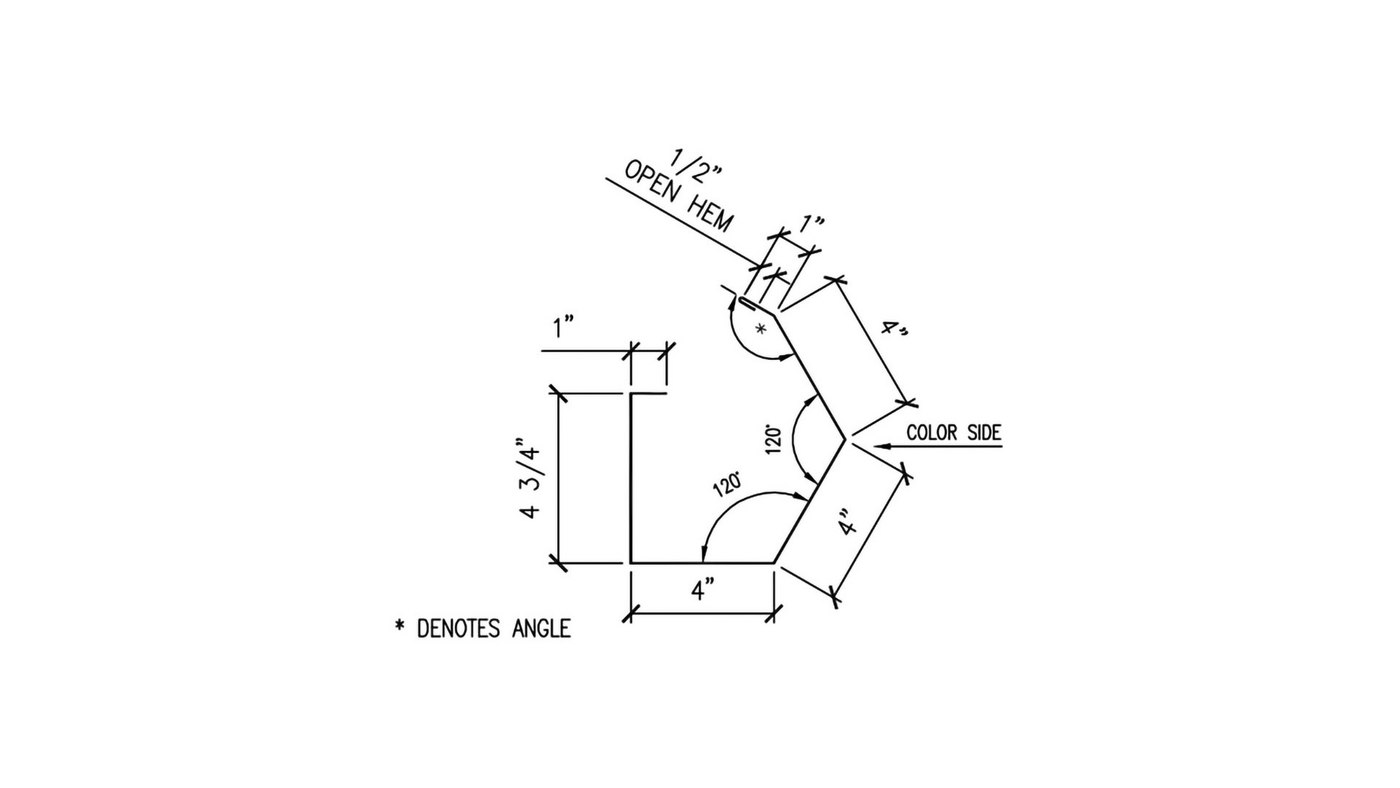

WS-17 Post Hung Sculptured Gutter Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/detail-wsd-eg2.jpg

Post Hung Box Gutter - Detail

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/part-ws-12-gutter-strap-1.jpg

WS-12 Gutter Strap Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/part-ws-49-sculpture-gutter-end-cap-1.jpg

WS-49 Sculptured Gutter End Cap Dimensions

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/part-ws-60-for-sculpture-gutter-splice-1.jpg

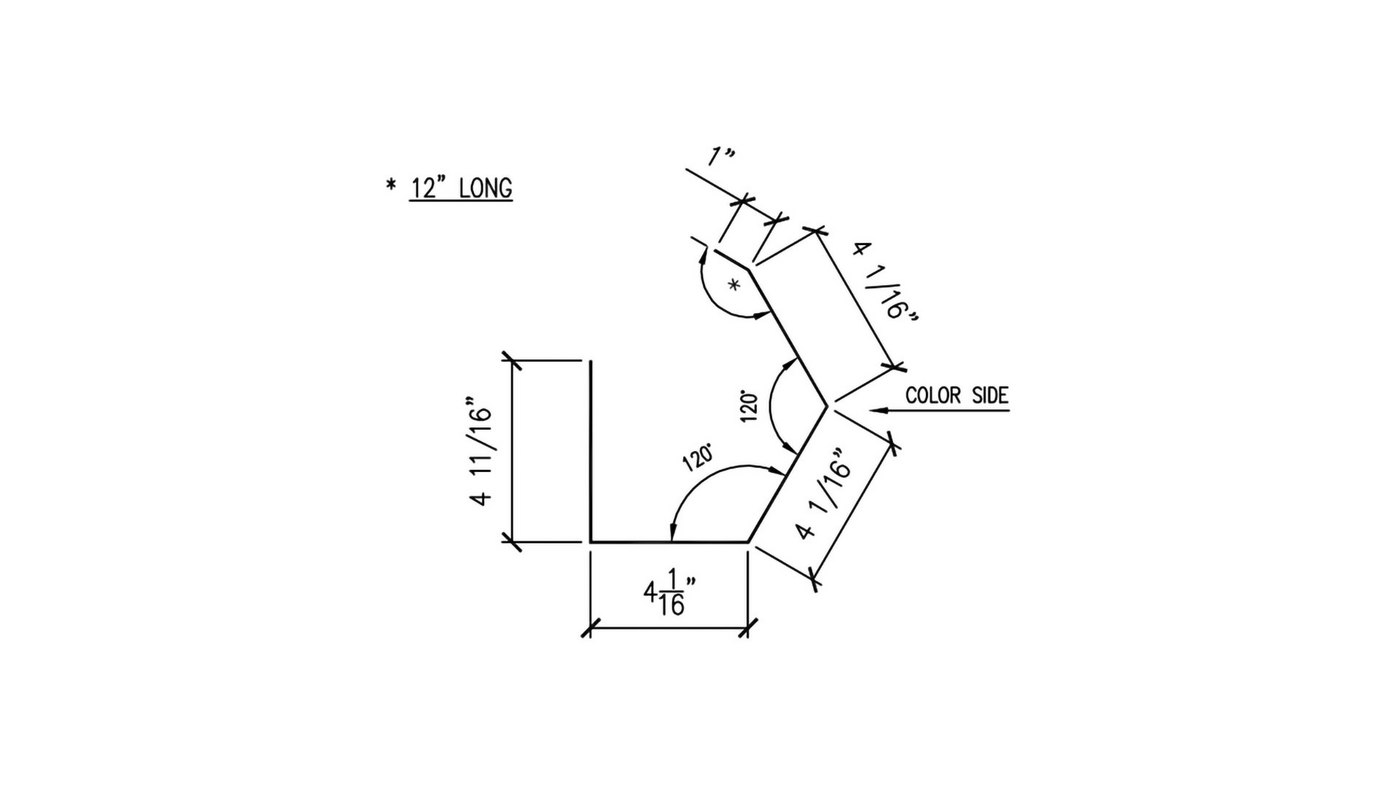

WS-60 Sculptured Gutter Splice Dimensions

Click To Enlarge

WS-17 - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Post Hung Sculptured Gutter - WS-17
    Roof Pitch Required
  • 4 Pieces Gutter Strap- WS-12
  • 2 Pieces Gutter End Caps - WS-14
    You Will Need 1 Left & 1 Right At Gutter Ends
  • 8 Lap Screws (Metal to Metal) With Sealant Washer
  • 10 Metal To Wood Screws With Sealing Washer To Attach Gutter To Fascia
  • 8 Rivets
  • 1/4 Tube Silicone Sealant

    If you have more than one piece of gutter for each gutter run then it will require the following additional pieces:

  • Gutter Splice - WS-13
  • 9 Rivets

DOWNLOAD INSTALLATION GUIDE

How To Install Post Hung Box Gutters

Gutter Installation Video

Step by step post hung box gutter installation instructions that includes downspout outlet, end caps, gutter splice, and fastening. This video covers an exposed fastener metal roofing panel.

post-hung-box-gutter-installation

Additional Gutter And Downspout Installation Videos


Downspout Outlet/Dropout Installation

Step by step installation instructions that show you how to attach downspout drop outlet to a gutter system.

Watch Now


Gutter Strap Installation

Step by step installation instructions for gutter strap installation.

Watch Now


Pre-Hung Gutter Installation

Step by step pre-hung box gutter installation instructions that includes downspout outlet, end caps, gutter splice, and fastening. This video covers an exposed fastener metal roofing panel.

Watch Now


Downspout Installation

Step by step downspout installation instructions that include elbows, downspout strap, and fastening.

Watch Now
