S-5-ZF Mini Clamps

Roofing Accessories

Get A Quote

Find out what your product would look like.

VIEW PRODUCT VISUALIZER

Overview

CAD Drawings

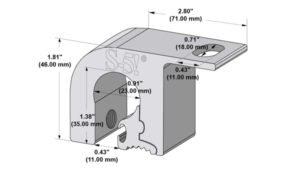

The S-5‑ZF Mini fits bulb-shaped profiles.

https://f.hubspotusercontent30.net/hubfs/6069238/S5ZMiniFL-022514_1.00-300x172.jpg

S-5-ZF Mini Clamps

https://f.hubspotusercontent30.net/hubfs/6069238/S5ZMiniFL-022514_1.00-300x172.jpg

S-5-ZF Mini Flanged Clamps

The S-5-ZF Mini fits bulb-shaped profiles.

Installation For S-5-ZF Mini Flanged Clamp

S5Z-installSteps

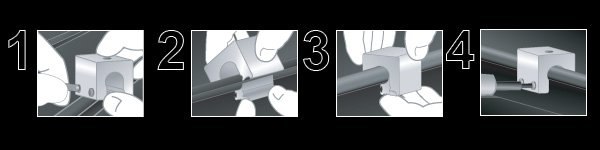

Installation Is Easy

Installation is as simple as placing the clamp on the seam, positioning the insert piece, and tightening the round-point setscrew to the specified tension. Then, affix ancillary items using the bolt provided. Go to the Tools Page for information and tools available for properly attaching and tensioning S-5! clamps.

Please Note: The image on the right illustrates the S-5-Z. The steps remain the same for the S-5-ZF Mini. However, there will only be one setscrew on the flanged mini clamp.

S5Z-installSteps
