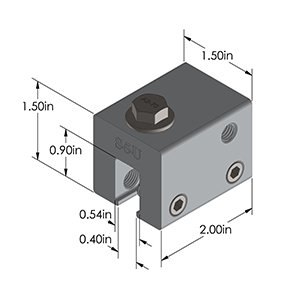

The S-5-U clamp can be used on vertically-oriented seams and, by rotating the clamp 90 degrees, it can also be used on most horizontal 2″ seam profiles. Its simple design, generous dimensioning, and multiple hole orientations are what make the S-5-U clamp so versatile for use with the S-5!® snow retention products, such as ColorGard®, as well as with other heavy-duty applications. The S-5-U Mini clamp is a bit shorter than the S-5-U and has one setscrew rather than two. The Mini is the choice for attaching all kinds of rooftop accessories.
The S-5-U is perfect for S-5!® snow retention products and other heavy-duty applications.

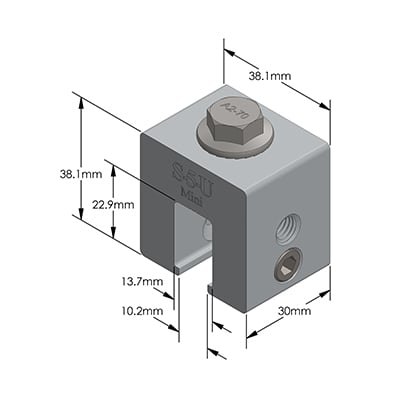

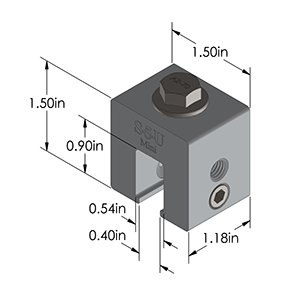

The S-5-Z Mini is a medium-duty, non-penetrating seam clamp. It is a bit shorter than the S-5-U and has one setscrew rather than two. The Mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!*
*S-5!® Mini clamps are not compatible with, and should not be used with, S-5! SnoRailTM/SnoFenceTM or ColorGard® snow retention systems.
The S-5-U and S-5-U Mini clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screwgun. A structural aluminum attachment clamp, the S-5-U is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.
The S-5-U and S-5-U Mini clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screwgun. A structural aluminum attachment clamp, the S-5-U is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.
Installation is as simple as placing the clamp on the seam and tightening the round-point setscrew to the specified tension. Then, affix ancillary items using the bolt provided. Go to the tools page for information and tools available for properly attaching and tensioning S-5! clamps. Thanks to our round-tip setscrews, S-5! clamps do not pierce metal roof paneling, thereby protecting roof coatings and weather tightness warranties.
Please Note: The above image illustrates the S-5-U. The steps remain the same for the S-5-U Mini; However, there will only be one setscrew on the clamp.
