S-5-E Clamps

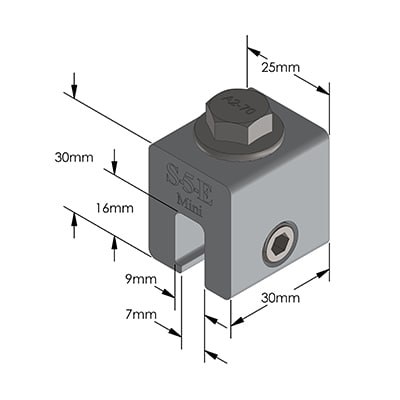

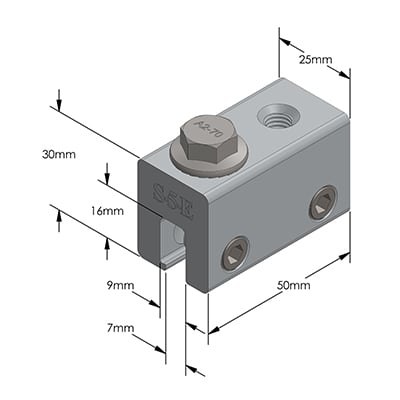

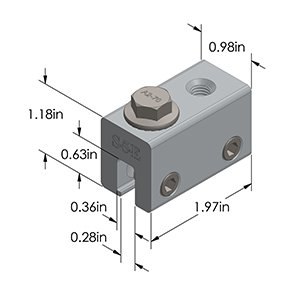

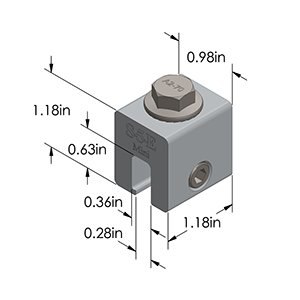

The S-5-E and S-5-E Mini clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screwgun. A structural aluminum attachment clamp, the S-5-E is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.

The S-5-E and S-5-E Mini clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screwgun. A structural aluminum attachment clamp, the S-5-E is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.

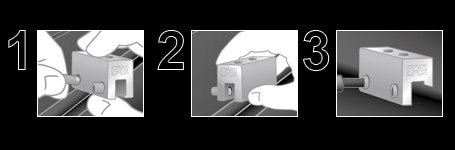

Installation is as simple as placing the clamp on the seam and tightening the round-point setscrew to the specified tension. Then, affix ancillary items using the bolt provided. Go to the tools page for information and tools available for properly attaching and tensioning S-5! clamps. Thanks to our round-tip setscrews, S-5! clamps do not pierce metal roof paneling, thereby protecting roof coatings and weather tightness warranties.

Please note: The image illustrates the S-5-E. The steps remain the same for the S-5-E Mini; however, there will only be one setscrew on the clamp.

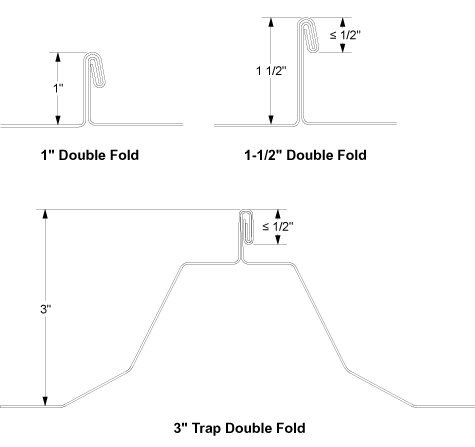

S-5-E AND MINI SEAM PROFILES

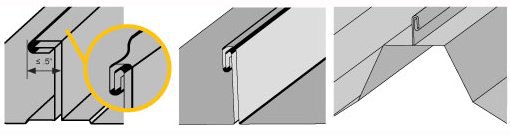

For horizontal seams under .5″, crimp the seam to 180 degrees at desired clamp location. This illustration demonstrates crimping technique, NOT actual location of clamp.
