Round Base Pipe Flashing

Get A Quote

Not the right pipe flashing for your project?

See More pipe flashings Here

Pipe Flashings

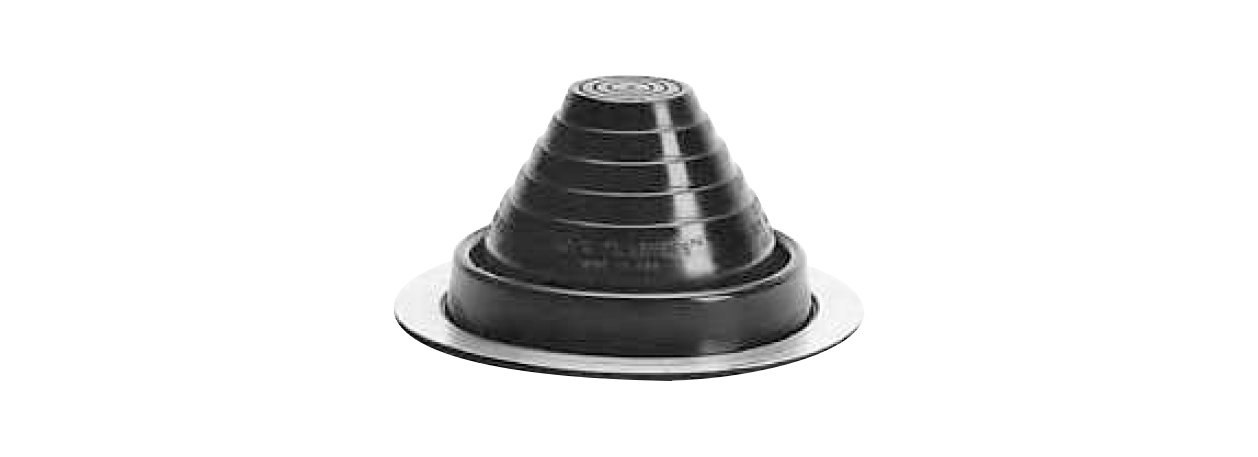

Round Base Pipe Flashing

Round Base Pipe Flashing EPDM is resistant to ultraviolet rays, cracking and weathering. Available in EPDM black.
The aluminum base is corrosion resistant and conforms easily to any panel configuration or roof pitch.

Product Data

  • Pipe opening can be easily customized on job site utilizing clearly marked pipe diameters on each flashing.
  • EPDM is resistant to ultraviolet rays, cracking and weathering.
  • Available in EPDM black.
  • The aluminum base is corrosion resistant and conforms easily to any panel configuration or roof pitch.

Material Specifications

Test Type: Advance Ozone Resistance (test @ 500pphm)

  • EPDM: 70 hrs

Test Type: High Temperature

  • Intermittent: +275° F
  • Continuous: +212° F

Test Type: Low Temperature

  • Resistance Tested To: -65° F
  • Tensile Strength: 1450 psi
round-base-pipe-flashing

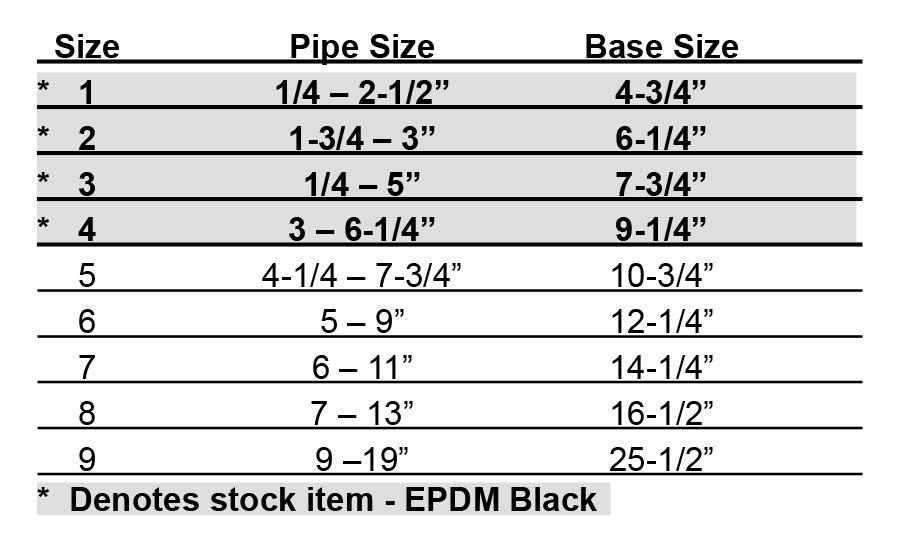

round-base-pipe-flashing-chart
