LOOKING FOR CORRUGATED METAL ROOFING INSTALLATION VIDEOS?

INSTALL LIKE A PRO

RIDGE CAP FOR 7/8" CORRUGATED METAL ROOFING

Ridge Cap With Hems - Part #WS-20H

A metal roofing ridge cap is the trim that’s installed along the peak of the roof. The point at the top of the roof where both slopes meet up is known as the peak or ridge. A ridge cap is typically the last piece of trim that will be installed. Before you begin the ridge cap installation on your metal roof, make sure that the eave trim and gable trim are installed.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/part-ws-20h-ridge-hip-cap-1.jpg

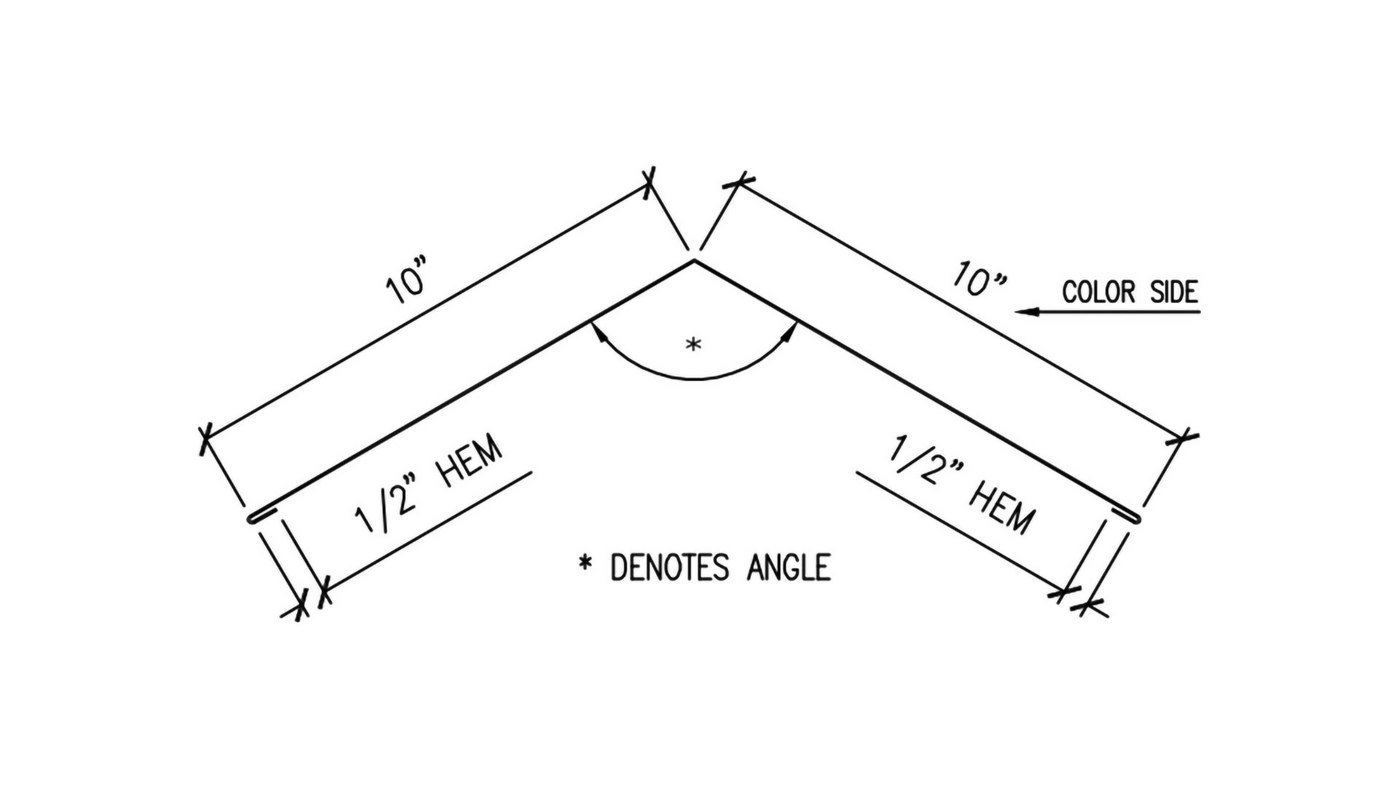

WS-20H Ridge Cap Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/detail-wsd-rh6-1.jpg

WS-20H RIDGE CAP DETAIL

CLICK TO ENLARGE

WS-20H - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

  • 1 Piece Ridge Cap Trim - WS-20H
    Roof Pitch Required
  • 20 Lap Screws (Metal to Metal) With Sealant Washer
  • 20 Linear Feet Of Outside Foam Closures
  • 20 Linear Feet Of Double Sided Butyl Tape
  • 1 Tube Silicone Sealant

If you have a vented ridge cap, then replace the foam closures with ProfileVent Ridge Vent.

DOWNLOAD INSTALLATION GUIDE

7/8" CORRUGATED METAL ROOFING INSTALLATION VIDEOS

RIDGE CAP INSTALLATION VIDEOS


How To Install A Non Vented Ridge Cap.

Step by step video with installation instructions that includes cutting and finishing the ridge cap ends to fit the gable trim. This video specifically covers non-vented ridge cap installation for an exposed fastener panel such as: 7/8" Corrugated, R Panel, and 7.2 Panel.

Watch Now


How To Install A Vented Ridge Cap

Step by step video with installation instructions that includes cutting and finishing the ridge cap ends to fit the gable trim. This video specifically covers vented ridge cap installation for an exposed fastener panel such as: 7/8" Corrugated, R Panel, and 7.2 Panel.

Watch Now

Just in case you forgot

ADDITIONAL ITEMS YOU MAY NEED...


Fasteners

Fasteners for metal roofing and wall panels.

  • Metal To Wood
  • Metal To Metal
  • Lap Screws
  • Rivets
  • Clips

Learn More


Foam Closures

Inside and outside foam closures for metal roofing.

  • 7/8" Corrugated
  • R Panel/PBR Panel
  • 7.2 Panel/Western Rib
  • Wave Panels/Western Wave
  • Expanding Foam For Concealed Fastener Panels

Learn More


ProfileVent Ridge Vent

Do you need to vent your ridge cap?

ProfileVent® is a single layer ridge vent on a roll. It is strong, durable, modified polyester, non-woven, non-wicking, fiber based matting designed specifically for metal roofs. We offer 50-foot rolls that are specifically cut to fit our corrugated metal roofing panel profiles.
