Western Reveal® Rezibond - 3.0

Metal Fascia, Soffit, And Wall Panels

This versatile metal panel system can be used as a metal soffit and fascia on your house or commercial building. It's also designed to be used as a wall panel system for interior and exterior applications. There is a three inch gap between each panel lap that adds depth and texture. You can mix and match the distance between the panel laps from no reveal, 1", 2", and 3" reveal.

Get a quote free metal samples

rezibond-western-reveal-03-1

Find out what your product would look like.

View Product Visualizer

Western Reveal®-3.0

Metal Soffits, Fascia, And Wall Panels

Your roof will often extend past the walls of your building. Using metal for soffits will provide a finished look to the roof eaves and add texture and color to your house. Western Reveal can be used for more then just a soffit installation, it's perfect for fascia and wall panels also. The modern design will attract attention and catch the eye, but will also blend in with the existing architecture.

Western Reveal is stronger and easier to install than using flat sheets. When using flats sheets on a job it is a design build application. Western Reveal has an install guide that has solutions for all of your common metal flashing conditions.

  • rezibond-western-reveal-03-13" gap or reveal between the panel side laps
  • 1.5" deep with concealed fasteners
  • Mix and match different reveals, face sizes, and widths.
  • Modern design with 1", 2" or 3" reveals.
  • 12", 14", 16", or 18" Face
  • For architectural projects that require a flush wall design, Western Reveal is also available in a "No Reveal" option.
  • Horizontal or vertical installation.

Get A Quote

Western Reveal® Flashing Details & Trim Part Numbers

View now

Product Data

western-reveal-03-all

Material Type:
Western Reveal® - 3.0
Metal Fascia, Soffit, And Wall Panel

Rib Height: 1.5"

Available Gauges: 22, 24

Substrate:
AZ50 Minimum (AKA Galvalume®/Zincalume®)

Fasteners: Concealed Fasteners

Stiffening Ribs or Pencil Ribs:
Available Upon Request

Single or Double Vent Strips:
Available Upon Request

Panel Length: 1' to 35'

Installation:
Installation Over A Solid Substrate
Vertical or Horizontal

Panel Face:
12"-18”

Overall Coverage:
15"-21"

Reveal: 3"

Applications:
Residential
Commercial
Interior

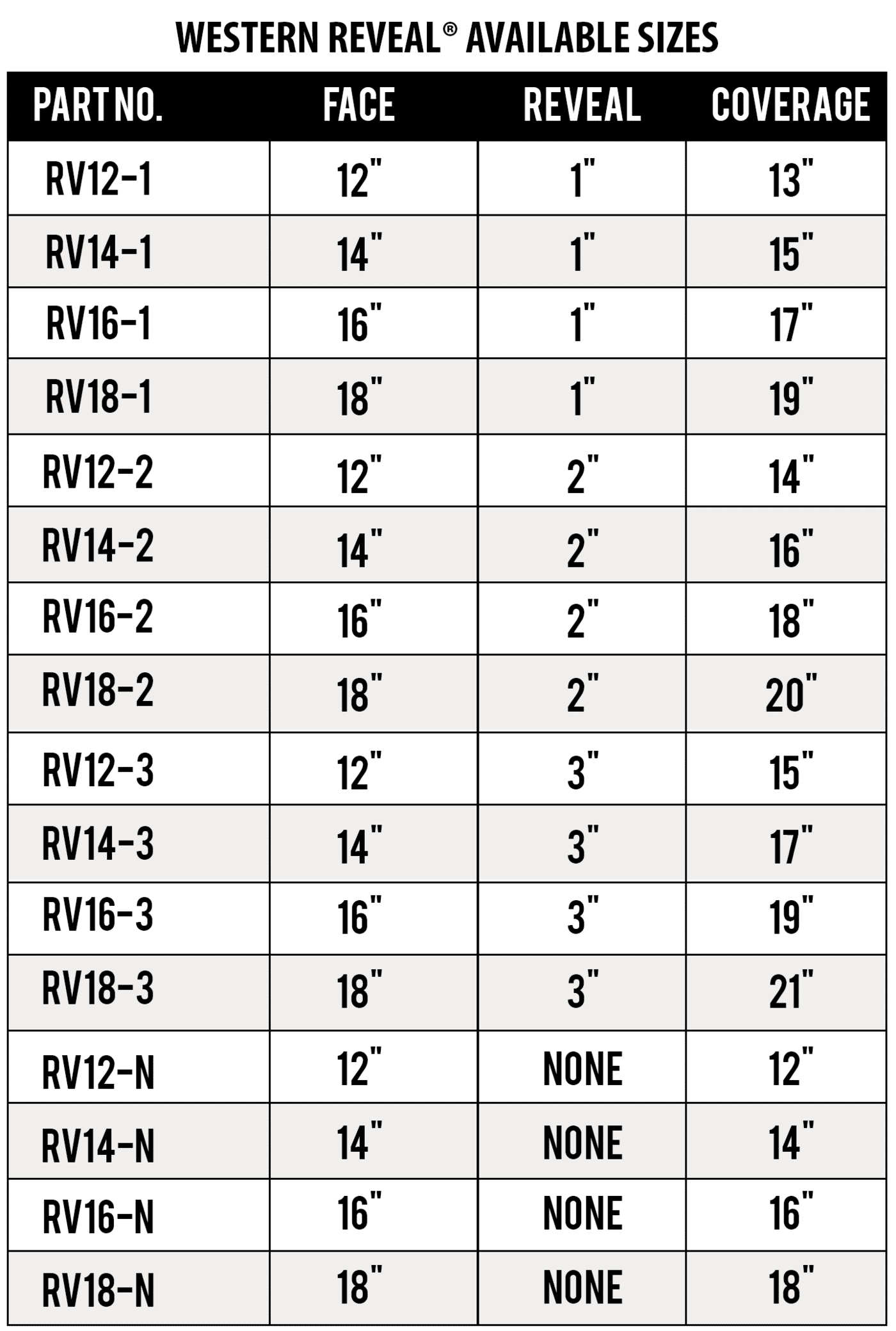

western-reveal-sizes-all

PRODUCT DOCUMENTS

Installation Guide

Product Data Sheets

Class A Fire Rating

Product Specifications

Solar Reflectivity Index

Paint Warranties

Field Cutting & Touch Up Paint

Stiffening Ribs & Vent Strips

Line Drawings

CAD Details

Care & Maintenance

Rezibond Disclaimer
