Western Reveal® Rezibond - 2.0

Metal Fascia, Soffit, And Wall Panels

This versatile metal panel system can be used as a metal fascia for houses or commercial buildings. It's also perfect for soffits or wall panels. There is a two inch gap between each panel lap that adds depth and texture. You can mix and match the distance between the panel laps from no reveal, 1", 2", and 3" reveal.

Get a quote Free Metal Samples

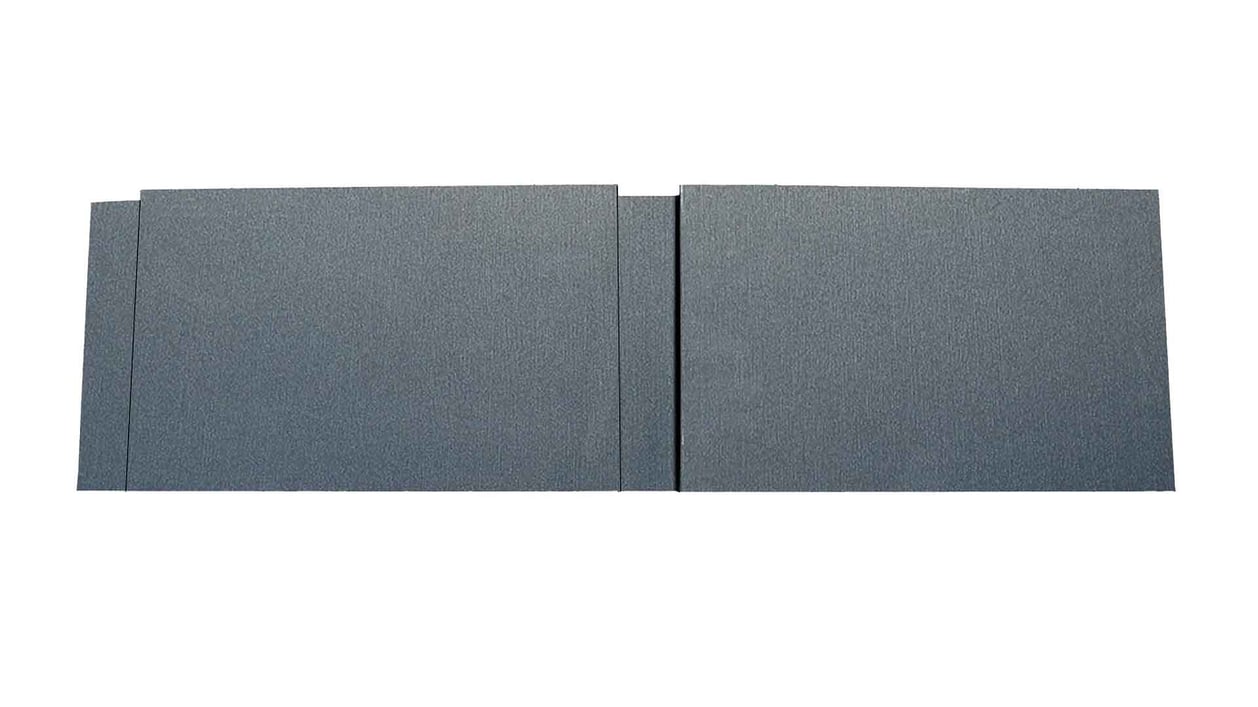

rezibond-western-reveal-02

Find out what your product would look like.

View Product Visualizer

Western Reveal® - 2.0

Fascia Metal, Soffits, And Wall Panels

Using metal for fascia underneath the edge of your roof will add texture and color to your house. Fascia metal will transform an otherwise plain surface and make it a focal point of the building. The modern design will attract attention and catch the eye, but will also blend in with the existing architecture.

Western Reveal is stronger and easier to install than using flat sheets. When using flats sheets on a job it is a design build application. Western Reveal has an install guide that has solutions for all of your common metal flashing and metal fascia trim conditions.

  • rezibond-western-reveal-022" gap or reveal between the panel side laps
  • 1.5" deep with concealed fasteners
  • Mix and match different reveals, face sizes, and widths.
  • Modern design with 1", 2" or 3" reveals.
  • 12", 14", 16", or 18" Face
  • For architectural projects that require a flush wall design, Western Reveal is also available in a "No Reveal" option.
  • Horizontal or vertical installation.

Get a quote

Western Reveal® Flashing Details & Trim Part Numbers

View now

Product Data

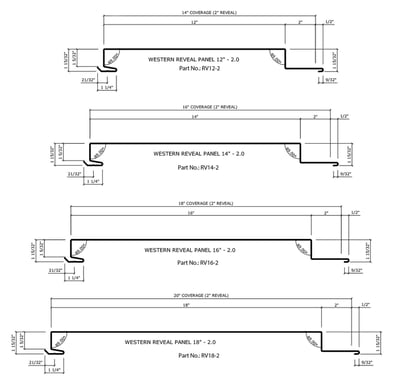

western-reveal-02-all

Material Type:
Western Reveal® - 2.0
Metal Fascia, Soffit, And Wall Panel

Rib Height: 1.5"

Available Gauges: 22, 24

Substrate:
AZ50 Minimum (AKA Galvalume®/Zincalume®)

Fasteners: Concealed Fasteners

Stiffening Ribs or Pencil Ribs:
Available Upon Request

Single or Double Vent Strips:
Available Upon Request

Panel Length: 1' to 35'

Installation:
Installation over a solid substrate

Panel Face:
12"-18”

Overall Coverage:
14"-20"

Reveal: 2"

Applications:
Residential
Commercial
Interior

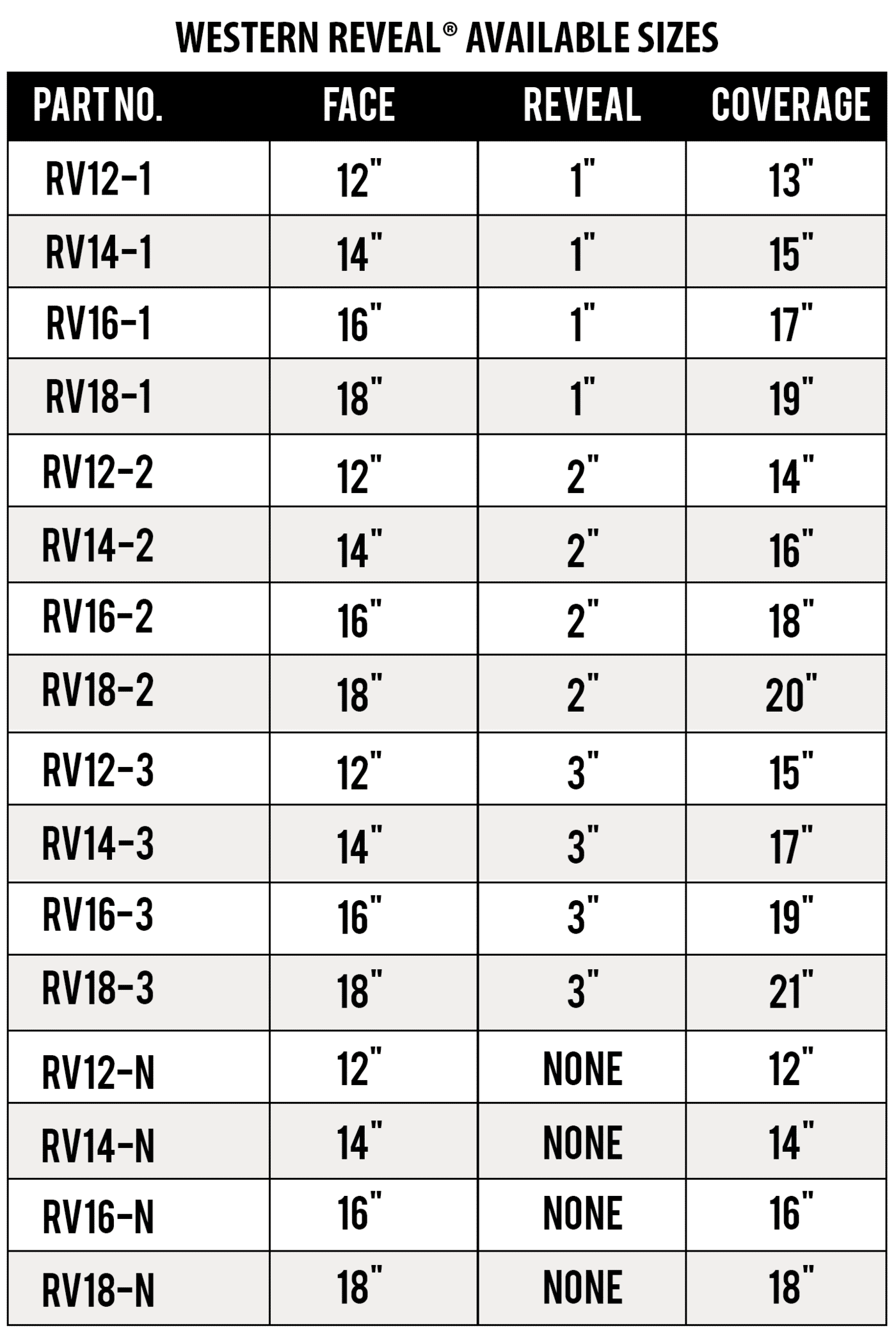

western-reveal-sizes-all

PRODUCT DOCUMENTS

Installation Guide

Product Data Sheets

Class A Fire Rating

Product Specifications

Solar Reflectivity Index

Paint Warranties

Field Cutting & Touch Up Paint

Stiffening Ribs & Vent Strips

Line Drawings

CAD Details

Care & Maintenance

Rezibond Disclaimer
