LOOKING FOR PBR PANEL INSTALLATION VIDEOS?

INSTALL LIKE A PRO

PITCH BREAK FOR PBR PANEL AND R PANEL

Transition - High To Low - Part #WS-236

Transition flashing is used when you have a roof that has two different pitches. The transition trim is located where the two different pitches meet so the metal roof does not leak. Transition flashing is also referred to as pitch break trim and comes high to low or low to high.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/pbr/part-ws-236-pitch-break-high-low-1.jpg

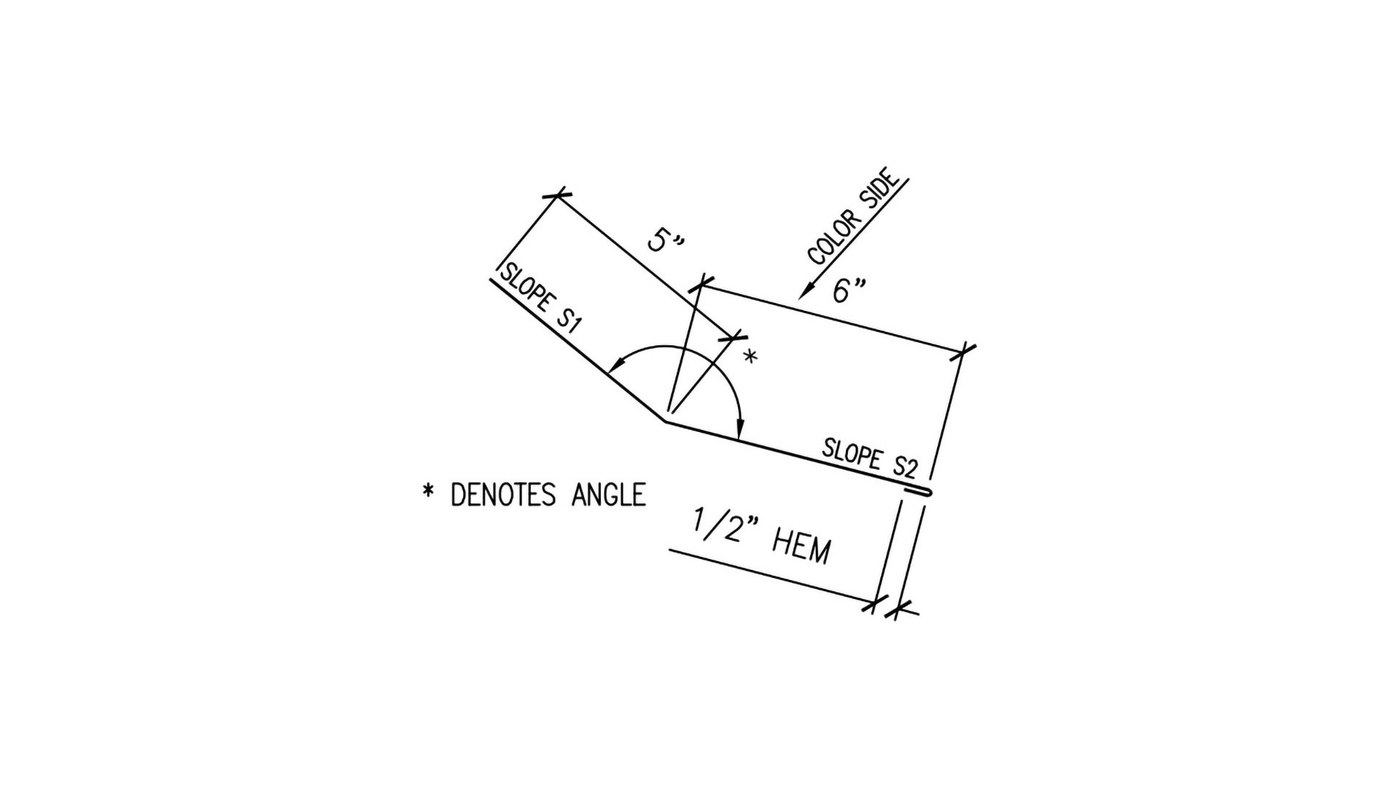

WS-236 Transition Flashing Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/pbr/detail-wsd-pb8.jpg

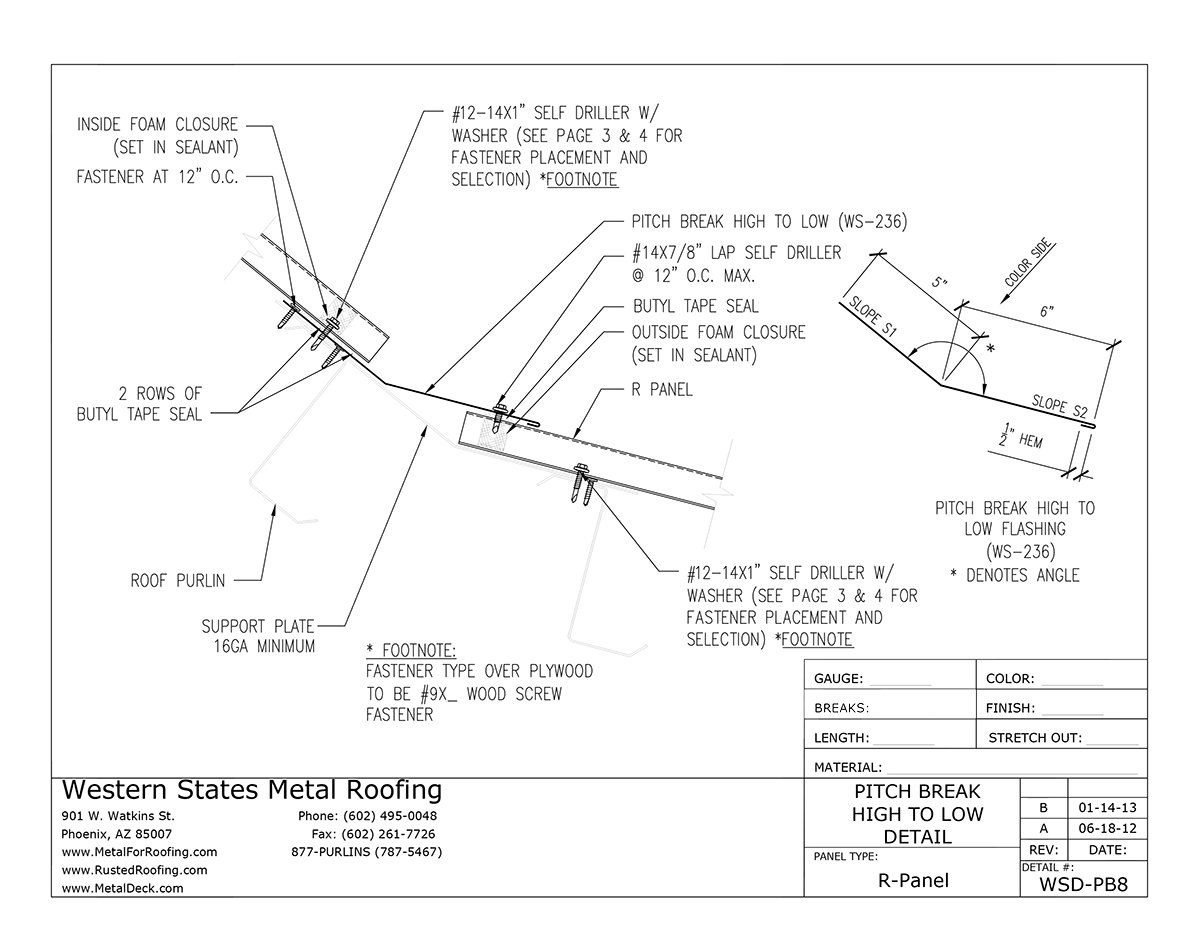

WS-236 Transition Flashing Detail

CLICK TO ENLARGE

WS-236 - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

  • 1 Piece Pitch Break - WS-236
    Roof Pitch Required - Both Sides
  • 10 Pancake Head Screws (#10X1") NO Washer
  • 10 Lap Screws (Metal to Metal) With Sealant Washer
  • 10 Linear Feet Of Outside Foam Closures
  • 10 Linear Feet Of Inside Foam Closures
  • 50 Linear Feet Of Double Sided Butyl Tape
  • 10 Linear Feet Of 8" Wide Sharkskin Ultra SA - Self Adhesive Roofing Underlayment
  • 1 Tube Silicone Sealant

DOWNLOAD INSTALLATION GUIDE

7/8" CORRUGATED METAL ROOFING INSTALLATION VIDEOS

TRANSITION FLASHING INSTALLATION VIDEOS


How To Install Transition Trim - High To Low

Step by step transition flashing installation video. This video covers installation for an exposed fastener metal roofing panel. High to low pitch break.

Watch Now


How To Install Transition Trim - Low To High

Step by step transition flashing installation video. This video covers installation for an exposed fastener metal roofing panel. Low to high pitch break.

Watch Now
