LOOKING FOR R PANEL METAL ROOFING INSTALLATION VIDEOS?

INSTALL LIKE A PRO

Reglet Flashing For PBR PANEL/R PANEL METAL ROOFING

Reglet Trim - Part #WS-229

Reglet trim is installed on the outside of a building, located between a wall and a roof. It's installed in conjunction with a counter flashing such as sidewall or endwall. It prevents leaks at one of the most water prone areas of a roof which is a 90 degree edge.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/pbr/part-ws-229-custom-trim-reglet-flashing-1.jpg

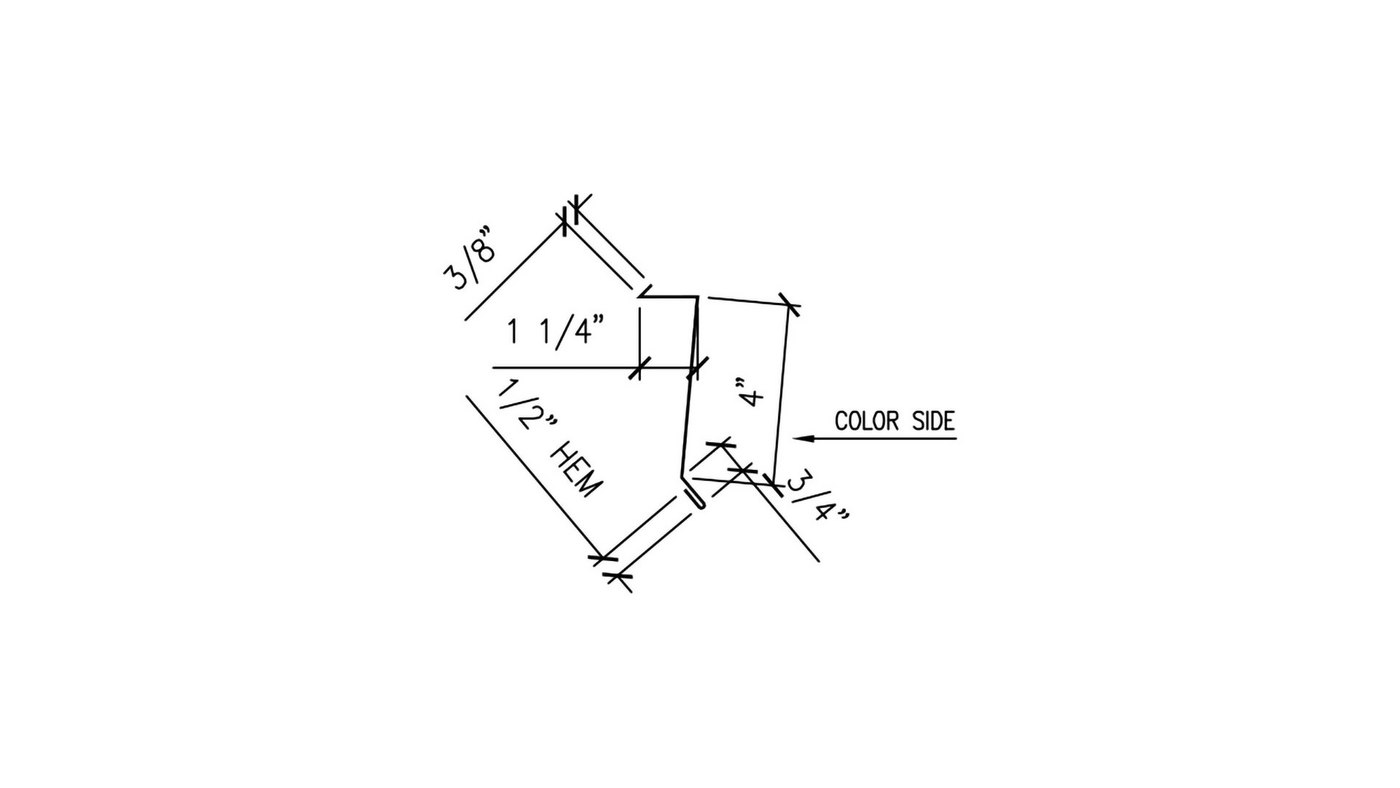

WS-229 Reglet Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/pbr/detail-wsd-cf10.jpg

End Wall With Reglet Detail

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/pbr/detail-wsd-sw4.jpg

Side Wall With Reglet Detail

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/pbr/detail-wsd-cf12.jpg

Cricket With Reglet Detail

Click To Enlarge

How To Install Reglet Flashing

Reglet Trim Installation Videos

Reglet flashing is installed between a wall and a roof. It's used in conjunction with sidewall and endwall trim. The purpose is to prevent leaks in one of the most crucial areas of a roof which is a ninety degree edge. This video covers reglet trim installation for an exposed fastener panel.

reglet-install
