Peak Flashing FOR PBR PANEL/R PANEL METAL ROOFING

Peak Flashing - Part #WS-219

Peak trim is a metal cap for a single slope roof condition that caps off the high end of the slope. Peak flashing acts like a ridge cap to keep water, snow, and ice from getting under the roof. It’s also referred to as high side eave trim.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/pbr/part-ws-219-peak-flashing-1.jpg

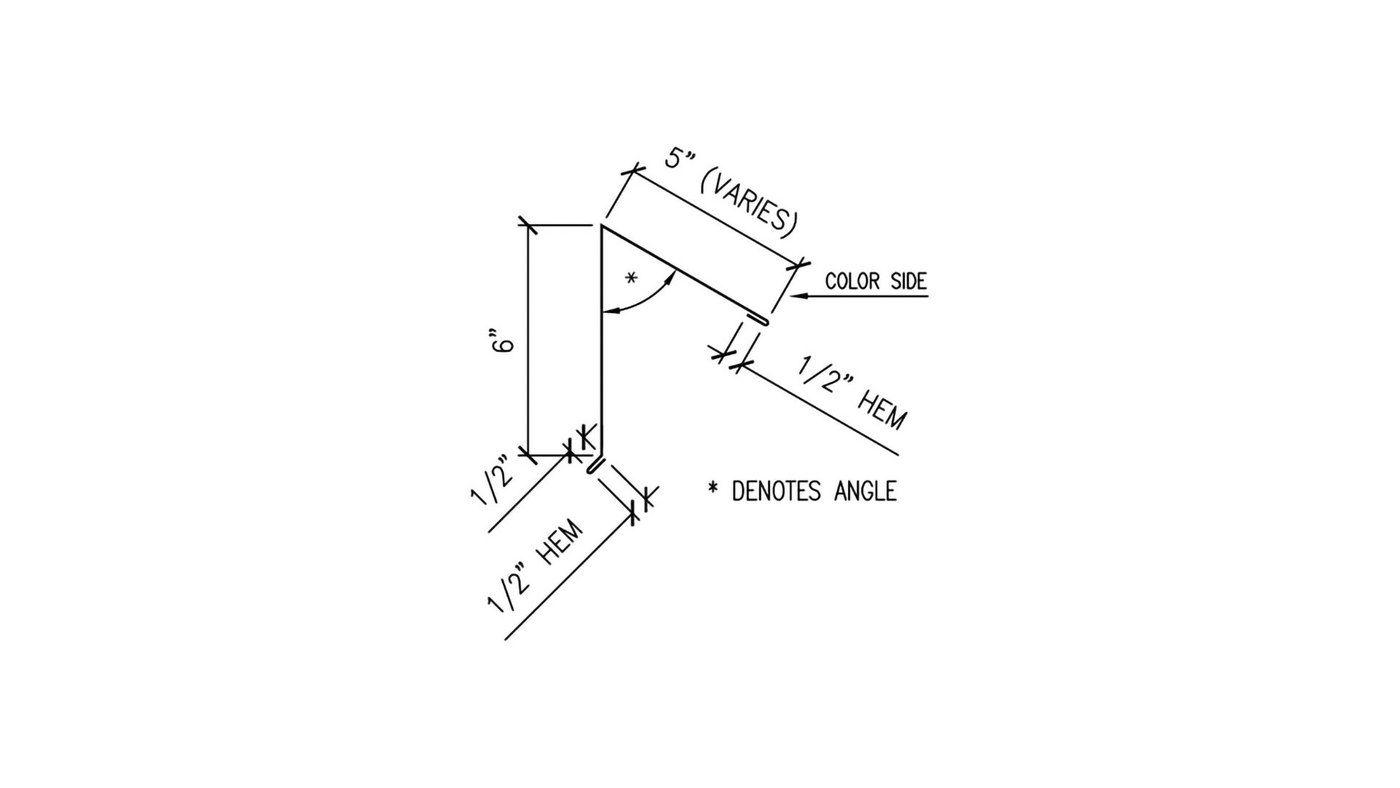

WS-219 Peak Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/pbr/detail-wsd-pk3.jpg

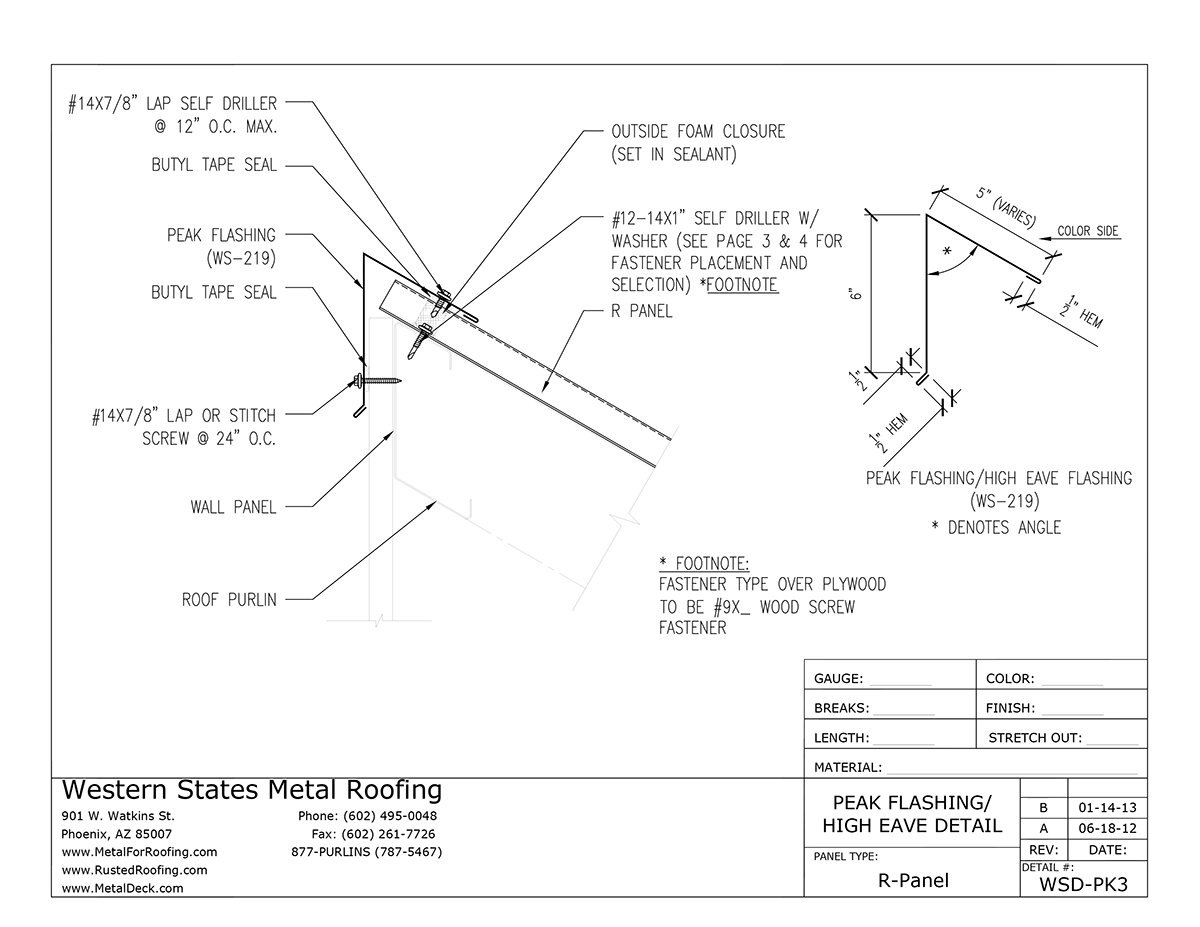

WS-219 Peak Trim Detail

CLICK TO ENLARGE

WS-219 - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Peak Trim - WS-219
    Roof Pitch Required
  • 10 Lap Screws (Metal to Metal) With Sealant Washer
  • 10 Screws With Sealant Washer To Fasten Into The Wall. The Type Of Screw Depends On Whether The Wall Is Wood Or Metal.
  • 10 Linear Feet Of Outside Foam Closures
  • 10 Linear Feet Of Double Sided Butyl Tape
  • 1/2 Tube Silicone Sealant

DOWNLOAD INSTALLATION GUIDE

PBR Panel Installation Videos


How To Install Peak Flashing For PBR Panels

Step by step video that covers installing peak flashing for PBR Panels and foam closures installation

Watch Now


How To Install Gable Flashing For PBR Panels

Gable or rake trim is installed on the high side of the roof. Step by step installation instructions that include cutting and finishing the gable flashing at the eave and the peak, overlapping, and fastening.

Watch Now
