LOOKING FOR METAL SIDING INSTALLATION VIDEOS?

INSTALL LIKE A PRO

Jamb Trim FOR R PANEL AND PBR PANEL

Jamb Trim - Part #WS-203

The term jamb means the frame of a window or a door. Metal jamb trim is installed vertically along the sides of a window or wall opening. It's similar to head trim with the key difference being it has a return versus a hem at the bottom.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/pbr/part-ws-203-jamb-trim-1.jpg

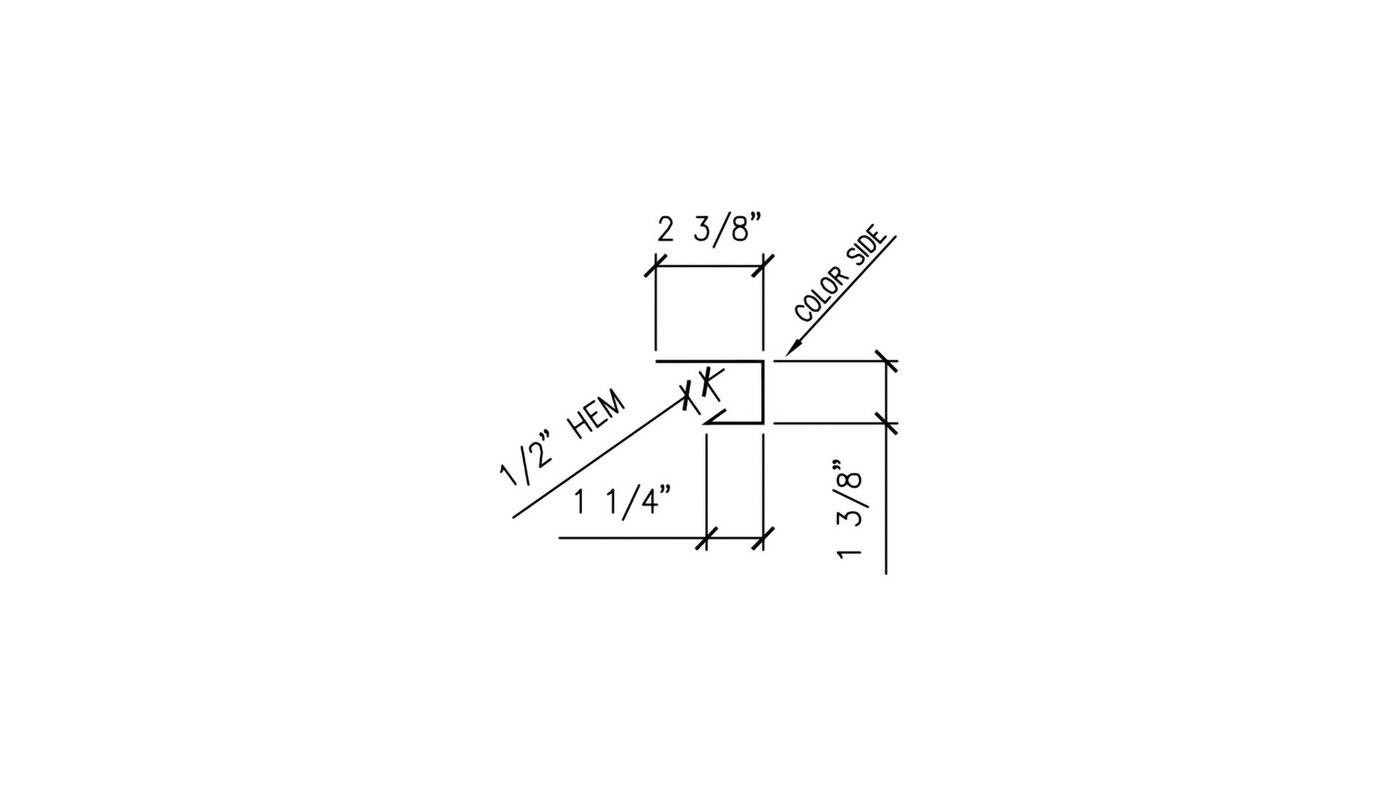

WS-203 Jamb Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/pbr/detail-wsd-w15.jpg

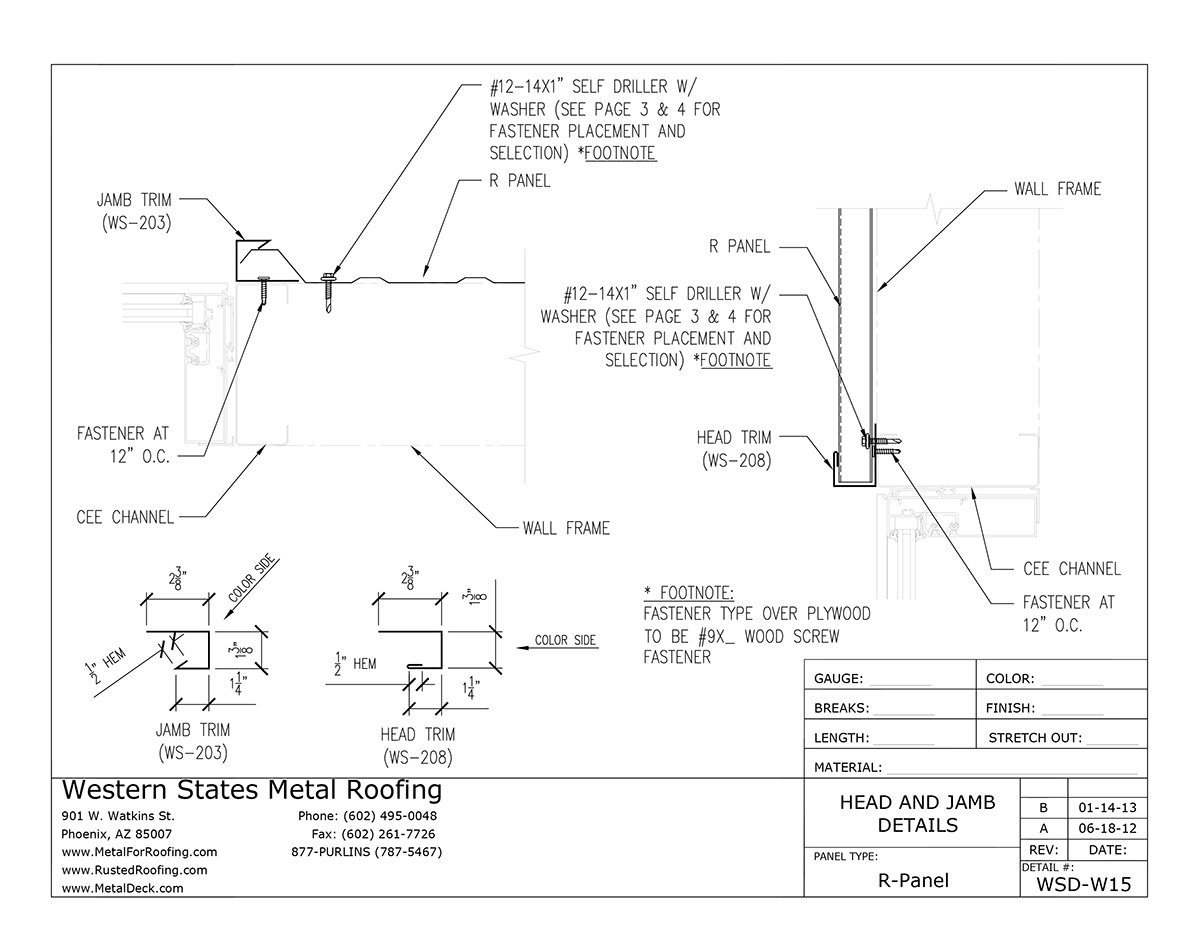

WS-203 Jamb Trim Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/pbr/detail-wsd-w16.jpg

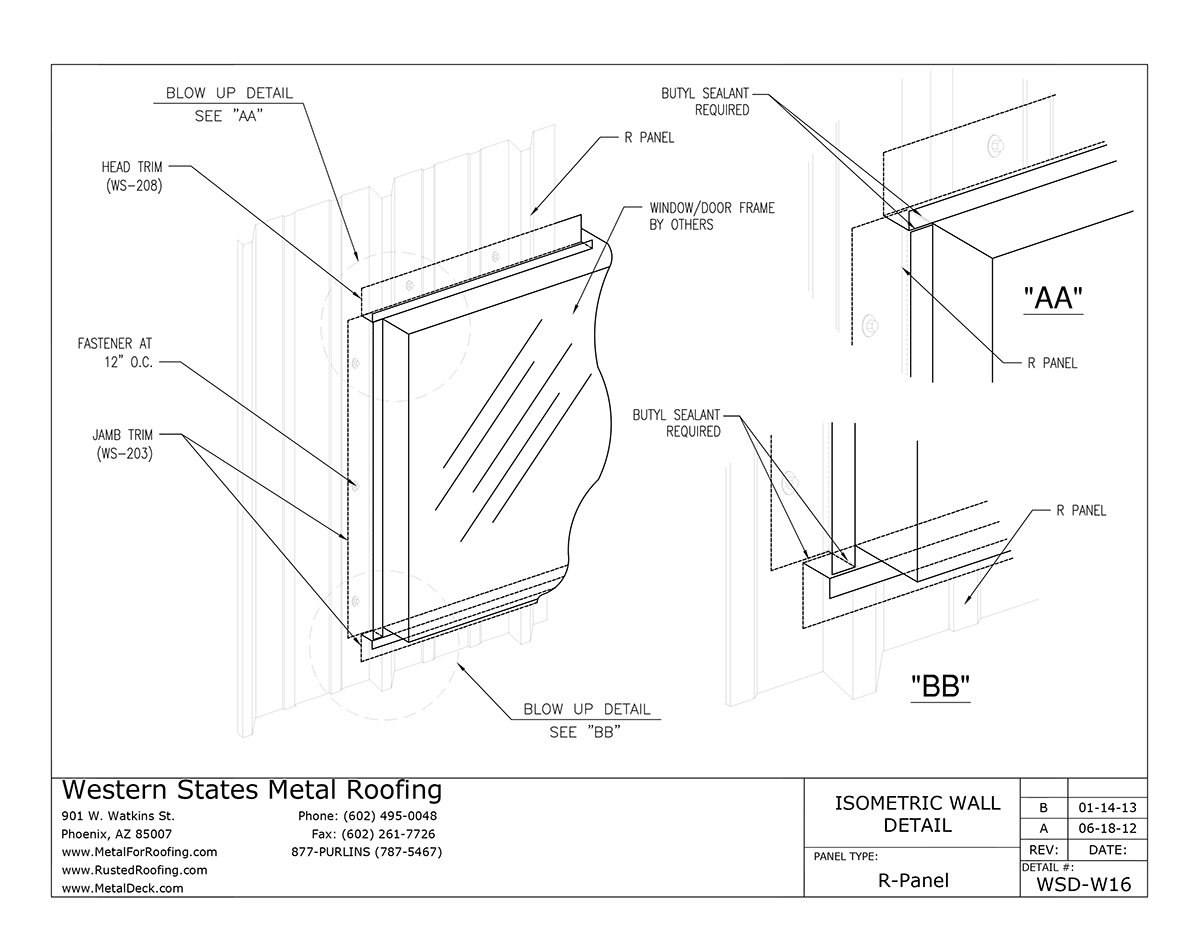

WS-203 Isometric Jamb Trim Detail

Click To Enlarge

WS-203 - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Jamb Trim - WS-203
  • 10 Pancake Head Screws (#10X1") NO Washer

DOWNLOAD INSTALLATION GUIDE

METAL SIDING INSTALLATION VIDEOS

Jamb Trim Installation For Metal Siding


How To Install Jamb Trim On The Door Of A Metal Building

When installing corrugated metal you will need to install jamb trim around a doorway. Step by step metal siding installation instructions.

Watch Now


How To Install Jamb Trim Around A Window Opening

When installing metal siding you will need to install jamb trim around a window. Step by step window flashing installation instructions

Watch Now


How To Picture Frame A Metal Wall Panel: Base Trim With J Metal Installation

Learn how to install picture frame a metal wall panel with base trim and J-Metal.

Watch Now
