S-5 PVKIT™

S-5-PV DIRECT ATTACHMENT SOLUTIONS

S-5! introduces the new and improved version of its popular S-5-PV Direct Attachment Solutions. The kit is designed specifically to secure framed photovoltaic modules to standing seam metal roof systems without penetrating the roof surface. S-5! has created a solution for the PV industry that:

• Fits the majority of metal roofs on the market—including exposed-fastened and corrugated
• Installs quickly and easily
• Universally fits both field (2 panels) and end conditions]
• Cools roofs by providing shade during intense summer heat, lessening utility costs
• Can be used with all S-5! Mini clamps; use the stainless steel mounting disk to facilitate use with brass clamps
• Costs as little as $0.07 a watt (stainless steel mounting disk) or even $0.06 a watt (aluminum mounting disk) to install

The concept of combining photovoltaic arrays with standing seam metal roofing is growing—and for good reasons. A standing seam metal roof has a life expectancy consistent with that of framed PV modules. A 30-year power source on a 40-year roof, along with zero-penetration technology creates the most sustainable roof system available with alternative power generation, all without compromising the roof’s warranty!

CHECK OUT THESE NEW S-5-PV DIRECT ATTACHMENT SOLUTIONS FEATURES!

• New, longer PV stud now accommodates PV frame thicknesses from 1.3″ (33 mm) to 2.5″ (64 mm)
• Beveled mounting disk now provides an even easier-to-use module placement guide
• Four new, strategically placed mounting disk hooks to assist in wire management
• New, broader ears on the PV grab allow for even easier installation and precise module engagement
• Mounting disk is universally directional for simplicity of installation
• Absolutely NO rails required
• Incredible holding strength that only S-5! can offer

Penetration-free attachment, lower installation costs and cooler roofs, combined with rising energy costs and increased environmental concerns all spell a bright, sunny future for PV and standing seam metal roofs. And, S-5! makes it easy.

The design of the attachment clamp and attendant round-point setscrews enable an entire installation without a single penetration through the roof’s surface. Installation is quick and easy, and costs can be as low as $0.06 a watt.The new S-5-PV Direct Attachment Solutions fits only S-5! Mini clamps, NOT standard clamps. The PVKIT can also be used with VersaBracket™ and CorruBracket™.

The new S-5-PV Direct Attachment Solutions works perfectly with our CorruBracket, and a flat mounting disk is available for using the S-5-PV Direct Attachment Solutions with our VersaBracket, allowing solar panel attachment to exposed fastened and corrugated metal roofing!

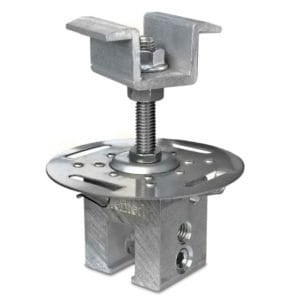

THE BASIC COMPONENTS

The S-5-PV Direct Attachment Solutions fits two grab components. The universal PV grab attaches adjacent panels, while the EdgeGrab™ cleanly resolves end condition requirements.

Note: Due to the variety of attachment needs, S-5-PV Direct Attachment Solutions are sold separately from S-5! Mini clamps. The S-5-PV Direct Attachment Solutions fits only S-5! Mini clamps, NOT standard clamps.

S-5-PV DIRECT ATTACHMENT SOLUTIONS

Note: Dimensions (in blue text) of the Universal PV Stud and the Mounting Disk are the same for the EdgeGrab illustration below.

The new S-5-PV Direct Attachment Solutions is one of the first solar module mounting solutions in the industry to be listed to the new UL Subject 2703, a standard that covers both bonding and mounting. In order to meet the UL requirements, the S-5-PV Direct Attachment Solutions had to be submitted for tests, being evaluated under the severest of conditions to confirm that the product would withstand the elements while maintaining electrical conductivity.

Furthermore, the S-5-PV Direct Attachment Solutions has gained an ETL Listing to UL 1703. UL and ETL listings are widely recognized by most Authorities Having Jurisdiction, which means fewer inspection hassles for installers.

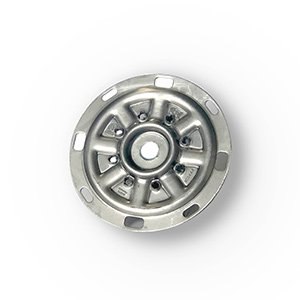

Previously, electrical continuity between modules (called “bonding” within the industry) required the mounting of an electrical lug to each PV module, and interconnection of the lugs with a copper wire. However, the S-5-PV Direct Attachment Solutions’ groundbreaking NEW stainless steel mounting disk has twelve nodes designed to ensure the module-to-module conductivity of anodized aluminum module frames.

With the new S-5-PV Direct Attachment Solutions, the module is simply anchored with the kit and automatically provides a ground path in the module frame. No lugs or wire required except to connect one string of modules to another and to ground the system. This connection detail represents installed electrical cost savings of $6-$12 per unit.

In most cases, the savings in time and materials is sufficient to pay for the entire S-5-PV Direct Attachment Solutions and clamp setup! The S-5-PV Direct Attachment Solutions continues to be the easiest, most cost-effective way to install solar panels directly to standing seam metal roofs and remains the most popular choice worldwide: mounting hardware as low as $0.07 per watt; aluminum disk mounting hardware as low as $0.06 per watt!

Introducing The Ultimate Solution For Solar Array End Conditions: EdgeGrab™

S-5-PV Direct Attachment Solutions Packaging

Contact your distributor for pricing and ordering. Broken box quantities may incur additional charges.

S-5 UL PVKIT
Product packages in boxes of 75 and cases of 300.

Setscrews, flanged bolts and a screwgun bit tip are included in each box.

See our full line-up of clamps for detailed information and pricing.

To help you and your distributor design a S-5-PV Direct Attachment Solutions system for your purposes, check out our Web-based calculator.

Note: Do not use S-5-PV Direct Attachment Solutions with attachment spacing greater than 32" (81.3 cm). Custom S-5-PV Direct Attachment Solutions, Splice and SnoClips™ are available for seam spacing greater than 32" (81.3 cm). Please inquire through a distributor.

Suggestions for Spacing of S-5! Clamps for PV Assemblies

The following suggestions assume that determination has been made that the roof to which the S-5! clamps will be attached is structurally adequate. Any loads imposed on the S-5! clamps will be transferred to the panels. Panel seams must have sufficient flexural strength to carry these loads. Panels must also be adequately attached to the building structure, and the structure must be sufficient to carry these loads. The makers of S-5! clamps make no representations with respect to these variables. It is the responsibility of the user to verify this information or seek assistance from a qualified design professional, if necessary.

The key to frequency and spacing of attachment points for PV is to distribute loads to the metal standing seam panels in a manner that is consistent with the intended distribution of loads from the roof panels into the building structure. With very few exceptions, the attachment of a single S-5! clamp (even the “Mini”) to the seam will be stronger than a single point of attachment of the seam to the building structure. Hence the “weak link” is not the S-5! clamp, but the attachment clips that hold the metal panels to the building structure, or the beam strength of the roof panel seam itself.

The most conservative approach to the spacing/frequency of PV attachment to the roof is to determine the spacing/frequency of the roof’s attachment to the building structure, then duplicate it at minimum. Determining panel attachment spacing in one axis is very simple: Standing seam panels’ attachment will be made using concealed hold-down clips within the seam area of the panel. So, in that axis, the clip spacing is the same as the seam spacing. The location of the clips along the seam (in the other axis) can be determined by a) consultation with the roof system manufacturer or installer, b) checking from the underside or, c) close examination from the topside along the seam. There will usually be a slight, but detectable, deformation of the seam at the clip location visible from the roof’s topside. Many standing seam roofing systems are installed on “pre-engineered steel” buildings. The attachment spacing in that industry is typically 5′-0″ and is readily apparent by inspecting the structural purlins to which the panel clips are attached from the roof underside (interior of the building).

If the panel clips are spaced, for instance, 5′-0″ on center along the seam, then use the 5′-0″ dimension as a maximum spacing for the S-5! clamps. (S-5! clamps may also be spaced at closer centers, but not wider.) When modules are direct attached (without racking) in the landscape orientation, this spacing dimension is dictated by the smallest dimension of the PV frame. Using the roof panel clip spacing as a maximum spacing template for S-5! clamps is a sound practice, whether the PV modules are attached directly to S-5!, or to a racking system, which is in turn attached to the S-5! (and panel seams). To evenly distribute loads, it is also necessary that each seam be involved in the finished assembly. Thus, every time a seam is traversed, it should be attached. Such an attachment scheme should evenly distribute wind loads into the building structure through the panels and their attachment, as was intended in the original roof construction assembly.

Note: Wind dynamics are complex, and S-5! advises review by a qualified licensed professional who understands wind effects and metal roof design and construction.

S-5!® has the best solar attachment solutions in the industry for exposed fastened roofs. Our extensive line of versatile and affordable brackets fit every shape and size of virtually every exposed fastened and corrugated roof profile on the market. S-5! brackets have been extensively tested for load-to-failure results and water tightness, and come with an industry-leading 25-year manufacturers warranty.

Our VersaGard™ bracket can be used in lieu of an L-foot to support the installation of photovoltaic panels. Fixed into the substrate, VersaGard works with most rail or racking systems on trapezoidal roofs, and can be oriented parallel or perpendicular to the roofline. In addition to VersaGard, the following S-5! brackets work with our S-5! PVKIT:

• VersaBracket™ 47 and 67—trapezoidal roofs, fixed into the substrate
• RibBracket I-IV™—fixed into the sheeting on the rib on trapezoidal roofs (covering 85% of all trapezoidal shapes)

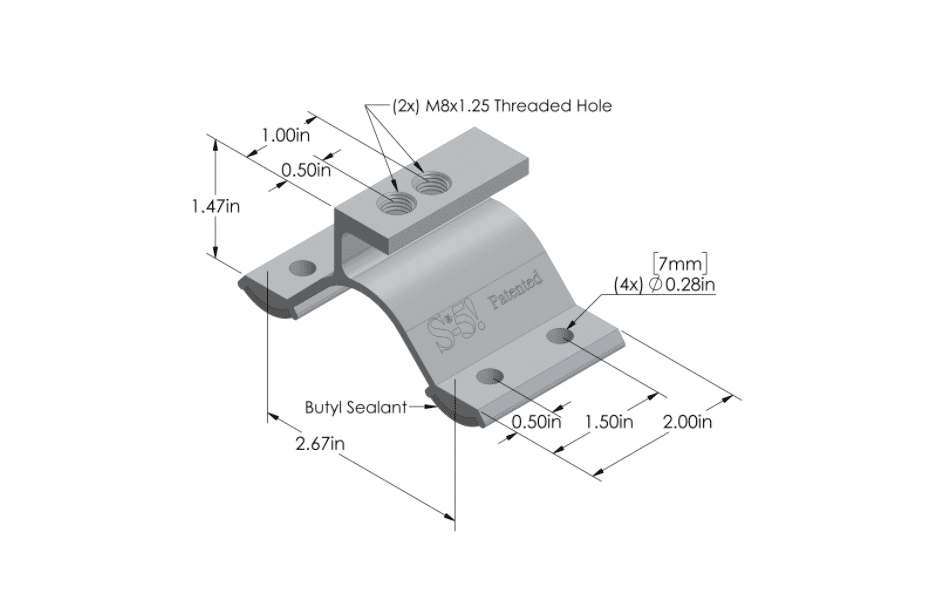

• CorruBracket™ 100T and 500T—perfect for corrugated roofs, fixed into the substrate
• CorruBracket™ and CorruBracket™ 100T Mini and 500T Mini—for rail, attached into the sheeting on the rib
• ProteaBracket™—fitting all trapezoidal rib shapes, fixed into the sheeting (usable with the PVKIT for direct attach solutions, or with a side or top mounted rail)
