LOOKING FOR CORRUGATED METAL ROOFING INSTALLATION VIDEOS?

INSTALL LIKE A PRO

Peak Flashing For 7/8" Corrugated Metal Roofing

Peak Flashing - Part #WS-19

What Is Peak Flashing?

Peak flashing is a metal cap for a single slope roof condition that caps off the high end of the slope. Peak trim acts like a ridge cap to keep water, snow, and ice from getting under the roof. It’s also referred to as high side eave trim.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/part-ws-19-peak-high-eave-flashing-1.jpg

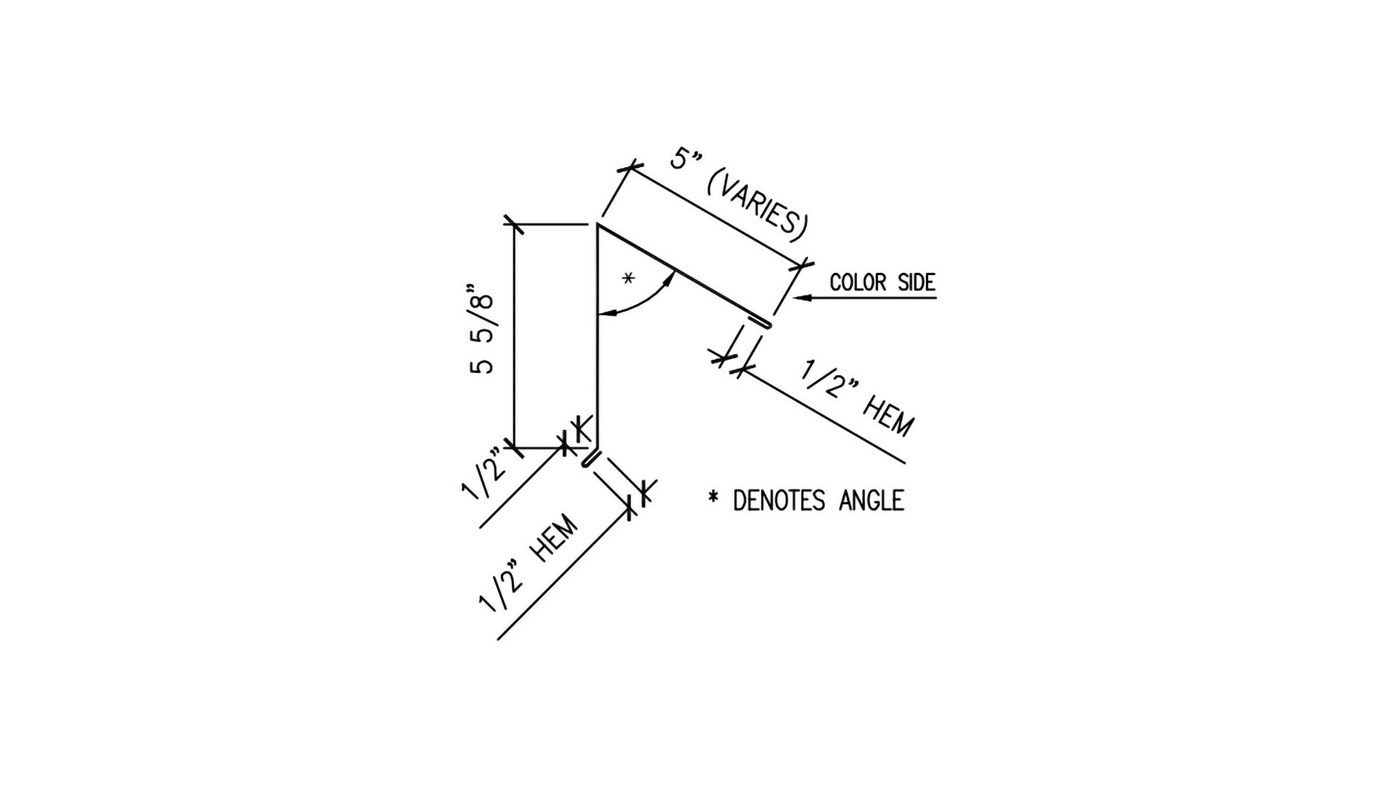

WS-19 Peak Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/detail-wsd-pk3.jpg

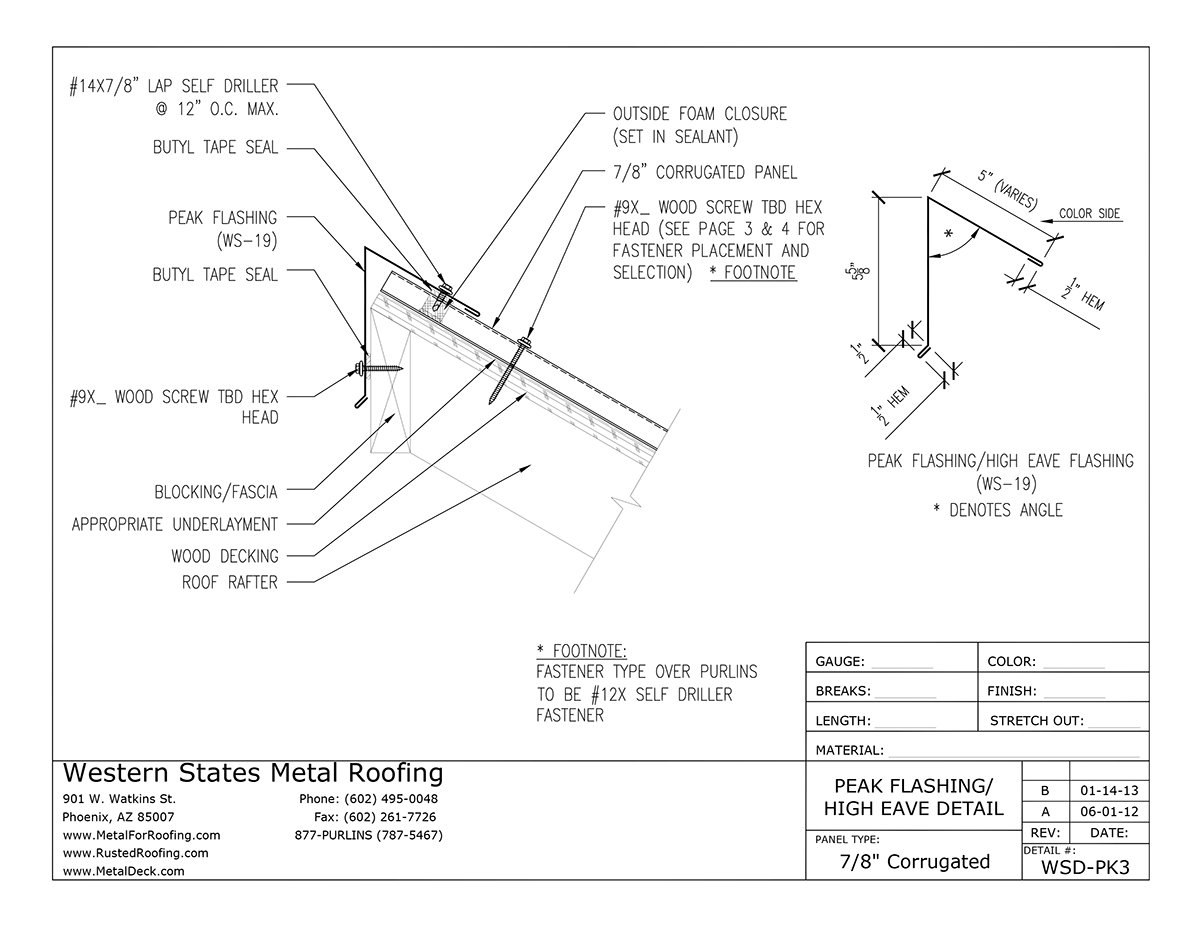

WS-19 Peak Trim Detail

CLICK TO ENLARGE

WS-19 - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Peak Trim - WS-19
    Roof Pitch Required
  • 10 Lap Screws (Metal to Metal) With Sealant Washer
  • 10 Screws With Sealant Washer To Fasten Into The Wall. The Type Of Screw Depends On Whether The Wall Is Wood Or Metal.
  • 10 Linear Feet Of Outside Foam Closures
  • 10 Linear Feet Of Double Sided Butyl Tape
  • 1/2 Tube Silicone Sealant

DOWNLOAD INSTALLATION GUIDE

How To Install Peak Trim

Peak Flashing Installation Videos

Install peak flashing on a corrugated metal roofing panel. Step by step video that covers finishing and cutting the ends of the peak trim at the gable corner, overlapping peak trim, foam closure installation, and fastening. This video is for installation of an exposed fastener panel.
