Parapet Cap - # WS-611

Parapet Wall Cap - Horizontal Installation

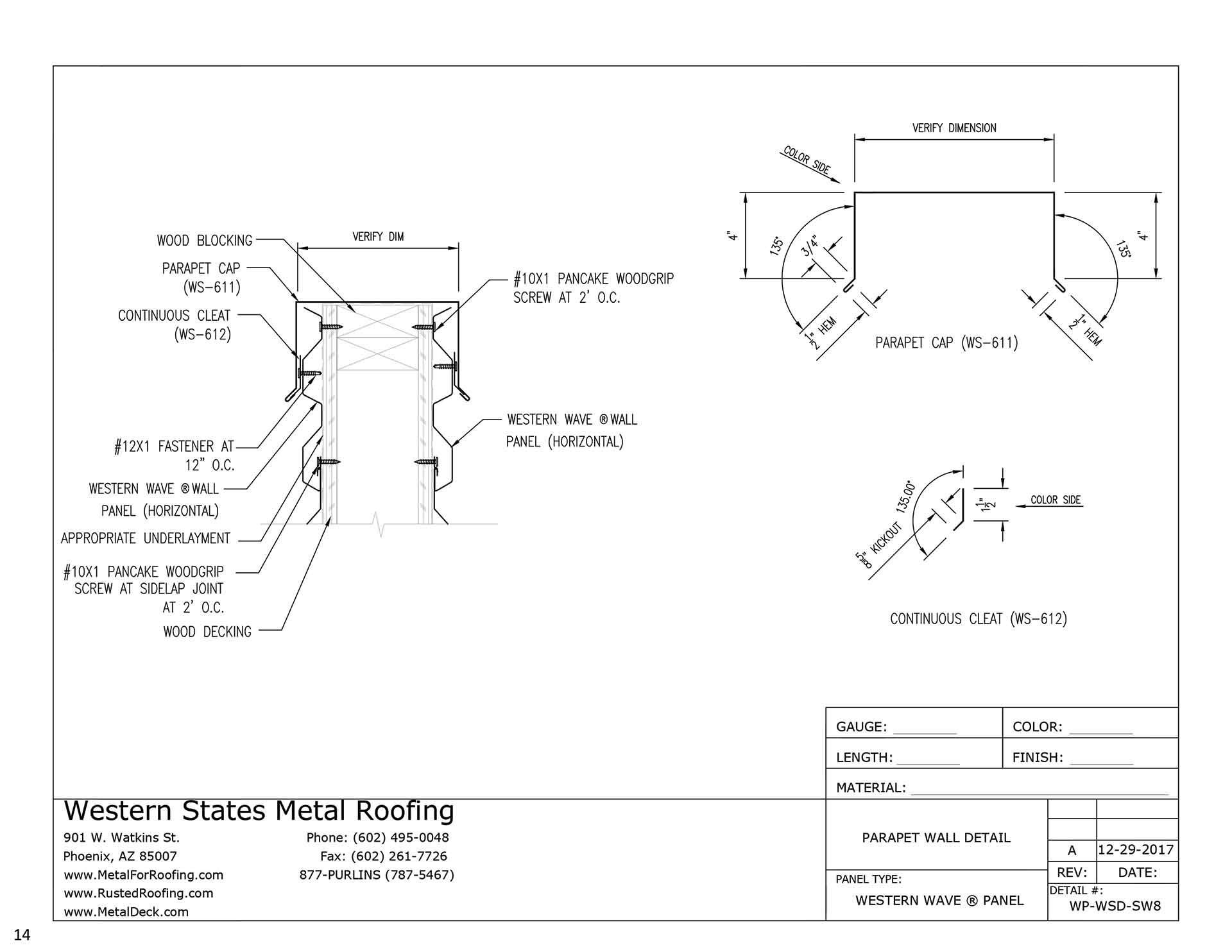

Detail WP-WSD-SW8

A metal parapet cap is used when you have a wall that has metal panels on both sides of the wall. The parapet cap covers the wall and both ends of the metal panels. It creates a uniform look and prevents water intrusion.

This installation detail is for a horizontal metal wall panel only. It should not be used for vertical metal wall panels.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-sw8-parapet-wall-detail.jpg

Parapet Wall - Horizontal Installation - Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/parapet-cap-ws-611-western-wave-panel-trim-flashing-1.jpg

WS-611 Parapet Cap Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/trim-cleat-ws-612-western-wave-panel-trim-flashing-1.jpg

WS-612 Trim Cleat Dimensions

For every 10' of parapet cap flashing, you will need 20' of trim cleat.

Click To Enlarge

PARAPET WALL DETAIL- HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Parapet Cap Flashing - WS-611
  • 2 Pieces Trim Cleat - WS-612
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 1/4 Tube Of Silicone Sealant

DOWNLOAD INSTALLATION GUIDE
