Mini Eave Flashing - Part #WS-40

Eave trim is the metal flashing that covers the low side of the building. Simply put, it’s installed on the side of the building that follows the pitch of the roof. Eave trim is used when a gutter is not required. The bottom leg of the eave trim has a kick out that is designed to keep water away from the wall. Eave trim is also referred to as drip edge or eave flashing.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/part-ws-40-mini-eave-flashing-1.jpg

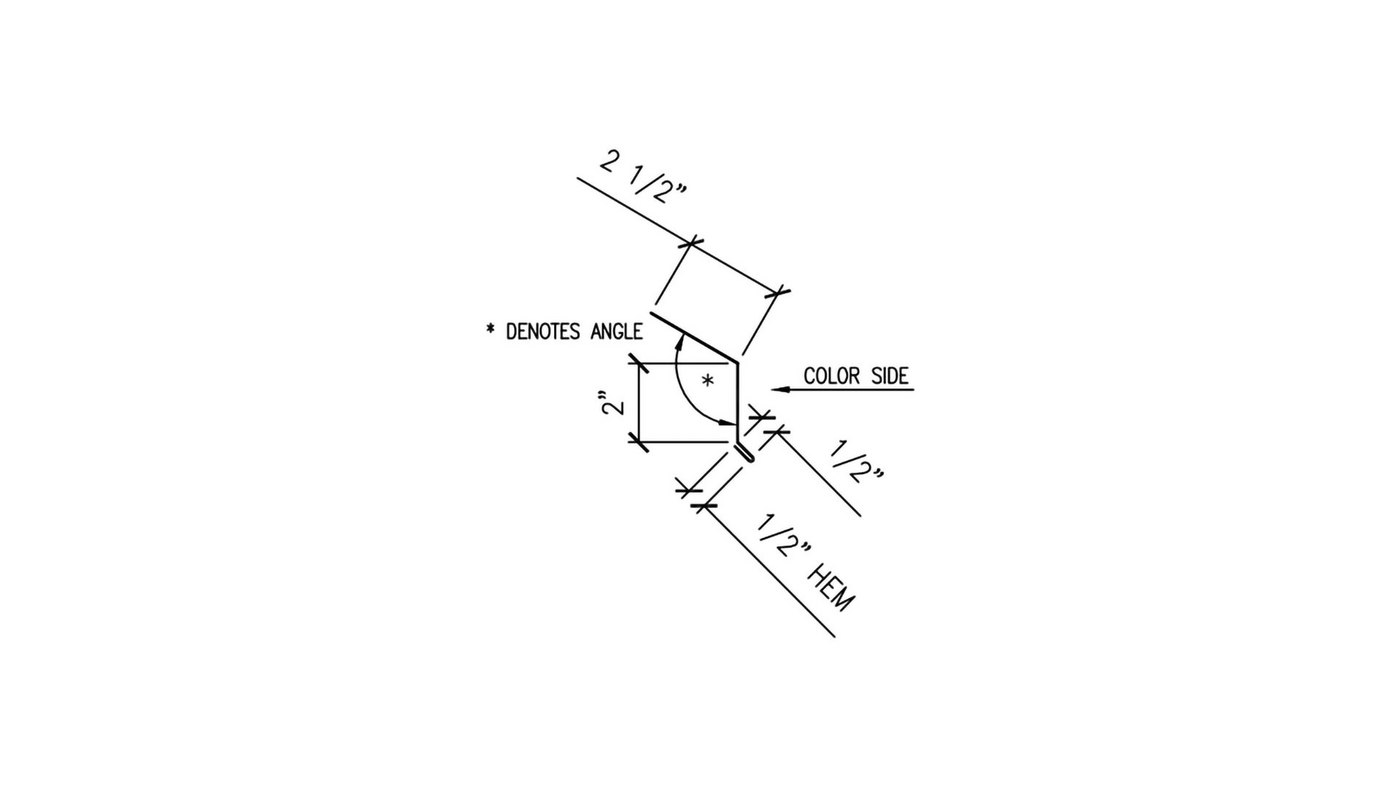

WS-40 Mini Eave Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/detail-wsd-me2.jpg

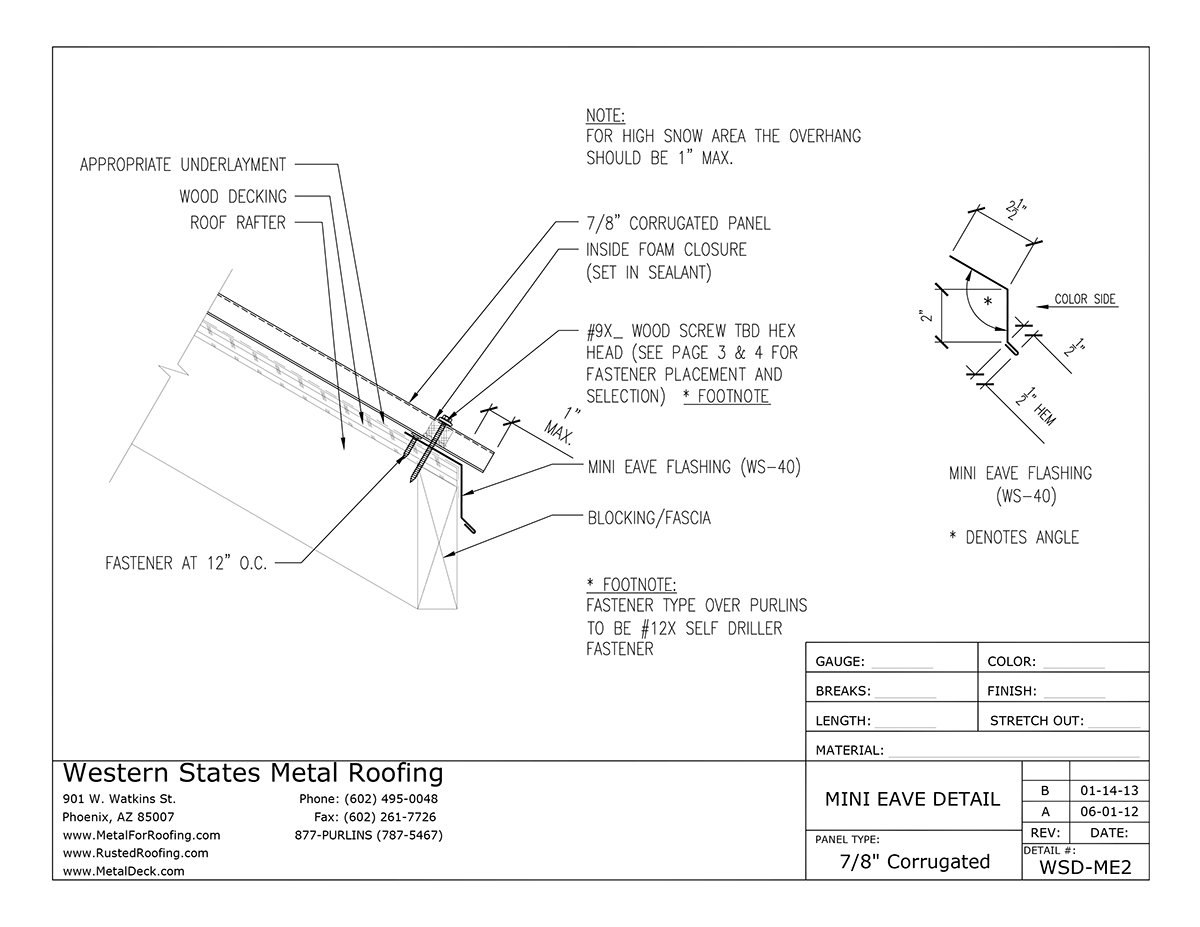

WS-40 Mini Eave Trim Detail

CLICK TO ENLARGE

WS-40 - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

1 Piece Mini Eave Trim - WS-40
Roof Pitch Required
10 Pancake Head Screws (#10X1") NO Washer
10 Linear Feet Of Inside Foam Closures
10 Linear Feet Of Double Sided Butyl Tape
10 Linear Feet Of 8" Wide Sharkskin Ultra SA - Self Adhesive Roofing Underlayment
1/4 Tube Silicone Sealant

DOWNLOAD INSTALLATION GUIDE

How To Install Eave Trim

Eave Trim Installation Videos

When you're installing eave trim it's the first piece of trim that's installed. The roofing panels are installed after the eave flashing. This video covers eave trim installation for an exposed fastener panel such as: 7/8" Corrugated, R Panel, and 7.2 Panel.
