Mechanically Seamed Metal Roofing - MS2®

This popular type of standing seam metal roofing has a two inch panel seam. It's perfect for very low sloped commercial or residential roofs. A standing seam roof has a more difficult metal roof installation because it is a concealed fastener panel and is normally installed by professionals.

Interactive Color Chart Pre-Notching

Is Mechanically Seamed Metal Roofing right for you?

Mechanically Seamed Clips: Everything That You Need To Know

Don't Forget About The Seamer Tool! You'll Need One.

Rent One Here How To Use Seamer Tool

Mechanically Seamed Standing Seam Panels

What Is Mechanically Seamed Roofing?

Mechanically seamed roofing is a standing seam metal panel that has edges that line up with each other. A roof seamer is used to bend the roof panel edges and interlock the sheets together. This is referred to as a single lock or a double lock system.

Double Lock has two folds and has 180 degree seams. It’s used more often and is a more weather-tight connection.
Single Lock has one fold and has 90 degree seams. It’s rarely used and requires a greater roof slope.

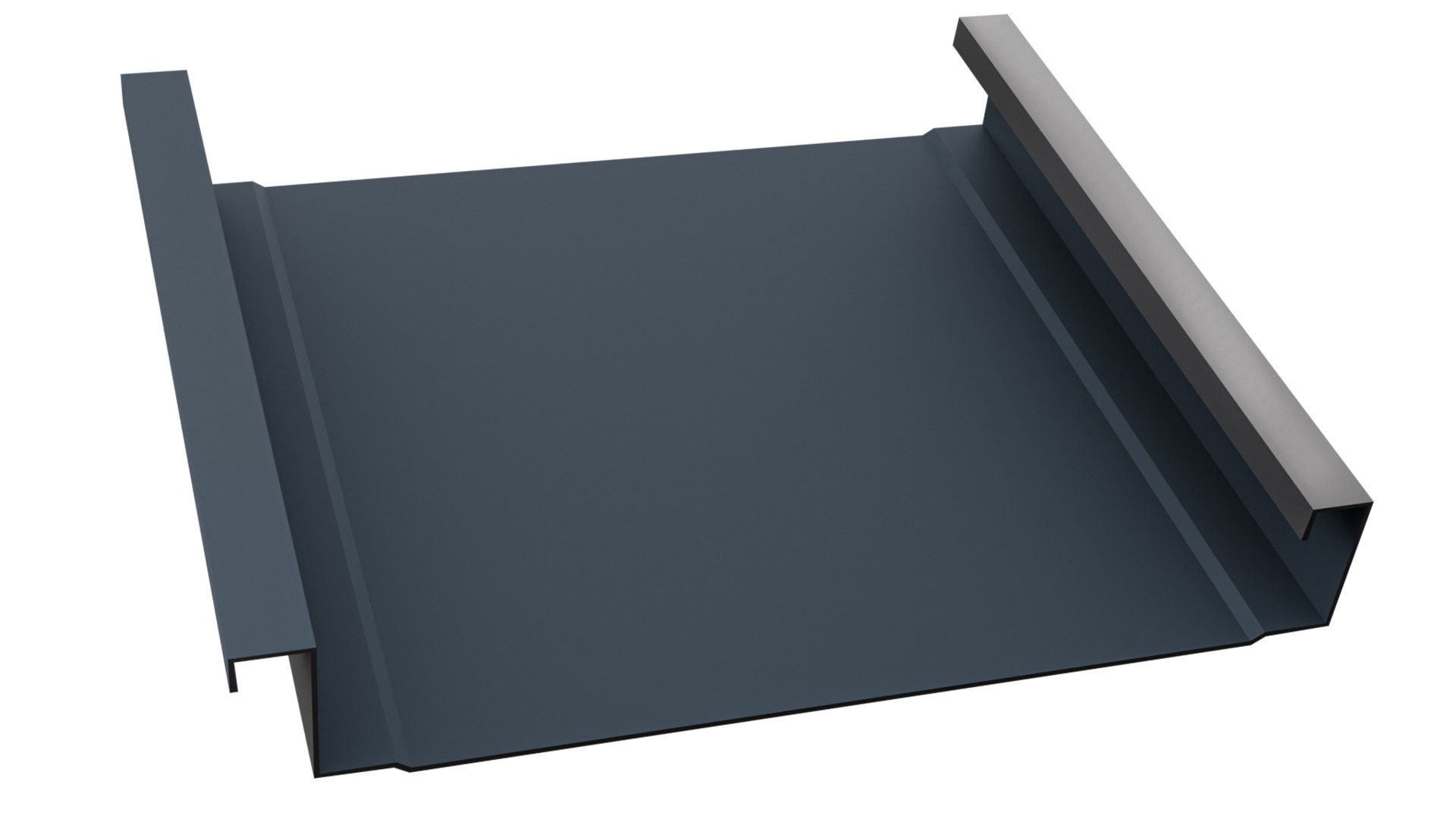

MS2® Standing Seam – 2” Mechanically Seamed

Mechanically seamed metal roofing is the most weather-tight roofing system compared to the other standing seam systems. It's more durable than snap lock panels or nail strip standing seam roofing. MS2® is ideal for a flat roof and can handle pitches as low as 1" in 12". It's ideal for snow country and can be seamed with a single or double lock connection. Roof seamer rentals are available to make your installation as smooth as possible.

Mechanically Seamed Metal Roofing - MS2®

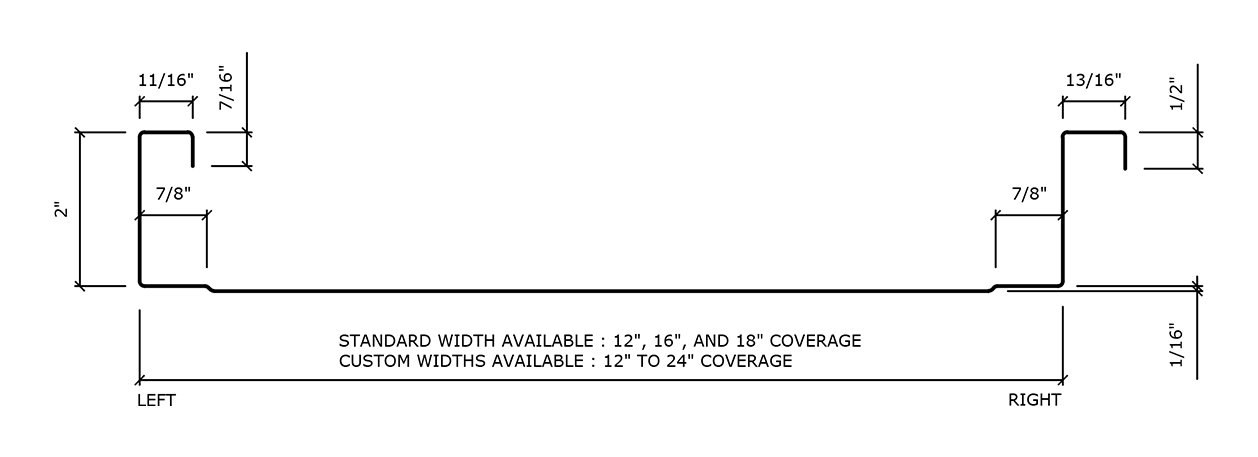

Dimensions

MS2® Mechanically Seamed Standing Seam Panel With 2

View Panel Dimensions Installation Details

Material Type: Mechanically Seamed Metal Roofing

Rib Height: 2"

Overall Width:
Standard: 12", 16", 18"
Custom Widths Available: 12"-24"

Finishes: PVDF Resin Based

Panel Length: 1' to 52'

Product Data

Material Type: Mechanically Seamed Metal Roofing

Available Gauges:

24/Standard
22/Custom Ordered

Substrate:

AZ50 Minimum (aka Galvalume®/Zincalume®)

Fasteners: Concealed

Recommended Minimum Roof Slope: 1/12

Clip Relief: Included on all panels

Striations, stiffening ribs, or pencil ribs are available upon request.

Installation:
Installation over a solid substrate with an underlayment between the panel and the substrate.

Product Documents

Clip Relief & Striations

Field Cutting & Touch Up Paint

Installation Guide

Paint Warranties

Product Data Sheets

Product Specifications

Solar Reflectivity Index

UL Report

More Than 100 colors to choose from in standing seam metal

Standing Seam Metal Roofing Colors

Besides the typical solid colors found almost everywhere else, we are best known for our specialty paint prints. These are colors that have been painted repeatedly giving the finish depth, texture, and a one of a kind design. The drop down menu has grouped these metal roofing colors and styles into categories - making it easier for you to find.

Quick Links

Color Charts

Color Visualizer

Metal Color Samples

Metal Roofing Color Guide

Paint Warranties

Standard Colors (PVDF)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

† This material is batch sensitive and directional. Do not mix batches or coil lots. Premium color. Slightly higher prices.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Royal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Classic Green
Matte Black
Dark Bronze
Medium Bronze
Mansard Brown
Burnished Slate
Silver Metallic†
Zinc Metallic†
Charcoal Gray
Gun Metal Gray
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Copper Penny†
Desert Tan
Champagne†
Sandstone
Almond
Bone White
Regal White

View Color Page

Matte Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

*Minimum Order of 5,000 sq. ft.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Matte Regal White*
Matte Sandstone*
Matte Desert Tan*
Matte Slate Gray*
Matte Musket Gray
Matte Zinc Metallic
Matte Patina
Matte Charcoal Gray
Matte Burnished Slate*
Matte Mansard Brown*
Matte Medium Bronze*
Matte Dark Bronze
Matte Midnight Black
Matte Black
Matte Classic Green*
Matte Colonial Red*
Matte Orange*

View Color Page

Special Order Colors (500 Sq. Ft. Minimum)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Solar White
Stone White
Surrey Beige
Sierra Tan
Aged Patina
Sage Green
Hemlock Green
Hartford Green
Evergreen
Burgundy
Pre-Weathered Galvalume

View Color Page

Additional Finishes

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Galvalume®/ Zincalume®
Galvanized G90
A606-4 (aka Corten®)
Bare Cold Rolled
Bonderized
Black Phosphate®
Rezibond®
Copper
Stainless Steel
Aluminum - Mill Finish

View Color Page

View Available Panels

Black Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Black Zinc Matte®
Black Ore Matte®
Matte Black
Matte Midnight Black
Dark Bronze
Matte Dark Bronze
Medium Bronze
Blackened Steel Matte®
Speckled Blackened Rust®
Blackened Copper®
Vintage®
Burnt Wood®

View Color Page

Copper Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Speckled Copper®
Speckled Blue Copper®
Copper Patina®
Green Copper®
Aged Copper®
Black Copper Matte®
Speckled Blackened Copper®
Blackened Copper®
Burnished Slate
Weathered Metallic®
Copper Penny†

View Color Page

Gray Colors

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Burnished Slate
Charcoal Gray
Gun Metal Gray
Patina
Slate Gray
Dolphin Gray
Dove Gray
Ash Gray
Matte Burnished Slate**
Matte Charcoal Gray
Matte Patina
Matte Zinc Metallic
Matte Musket Gray
Matte Slate Gray**
Silver Metallic†
Zinc Metallic†
Vintage®
Black Zinc Matte®
Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized*

View Color Page

Rusted Colors

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Speckled Rust®
Fresh Rust®
Corten AZP Raw®
Rustic Rawhide®
Weathered Rustic®
Weathered Metallic®
Reclaimed Metal Rust®
Speckled Galvanized Rust®
Speckled Blackened Copper®
Blackened Copper®

View Color Page

View Available Panels

View Color Page

Zinc Series

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Gray Zinc Matte®
Silver Zinc Matte®
Blue Zinc Matte®
Black Zinc Matte®
Vintage®
Zinc Patina®
Zinc Metallic†®
Matte Musket Gray®
Bonder-Paint® Light
Bonder-Paint® Dark
Bonderized®*
Rezibond®*

View Color Page

Aluminum (Standard Colors)

Colors represented on this chart may not exactly match actual material. All colors should be verified using actual metal samples.

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Aluminum - Mill Finish
Matte Black
Dark Bronze
Charcoal Gray
Almond
Regal White
Fresh Rust®

View Available Panels

Aluminum (Special Order Colors)

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Regal Blue
Slate Blue
Regal Red
Colonial Red
Terra Cotta
Aged Patina
Evergreen
Hartford Green
Medium Bronze
Mansard Brown
Slate Gray
Dove Gray
Ash Gray
Pre-Weathered Galvalume
Sierra Tan
Surrey Beige
Sandstone
Solar White
Stone White
Copper Metallic†
Silver Metallic†

View Available Panels

Copper (20oz/16oz)

Real Copper

Click the dropdown menu to explore more color options for this panel type.

Download Color Card

Hide List of Colors Show Colors as List

Copper

View Color Page

Ordering Information

On-Site Rollforming In Arizona

We use a portable roll forming machine to manufacture your metal roofing and siding panels right on your job site location. We bring the factory to you. There is no limitation to the length of your panels.

Only Available In Arizona
Commercial Jobs Only
Not Available For Residential Jobs

More Details

ADDITIONAL ITEMS YOU WILL NEED

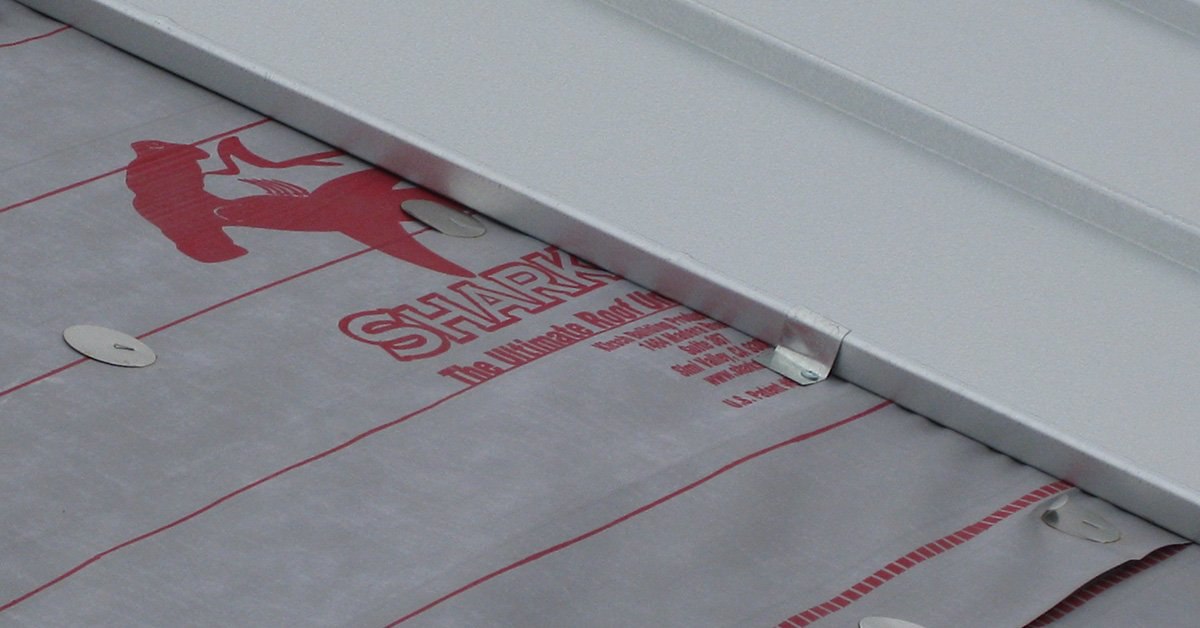

Sharkskin® Roof Underlayment

All metal roofs need roofing underlayment. Synthetic underlayment provides an extra barrier of protection from water penetration and will protect your home from the elements. Learn about the differences between Sharkskin Comp, Ultra, and Ultra SA.

Learn More

https://f.hubspotusercontent30.net/hubfs/6069238/images/menu/metal-purlins.jpg

Metal Purlins and Channel

C purlins, Z purlins, and channel are available in a galvanized or primed red finish. Purlins and channel from 4” up to 12” deep. Immediately available in a 14 gauge metal thickness. Heavier and lighter gauges are available upon request.

Learn More

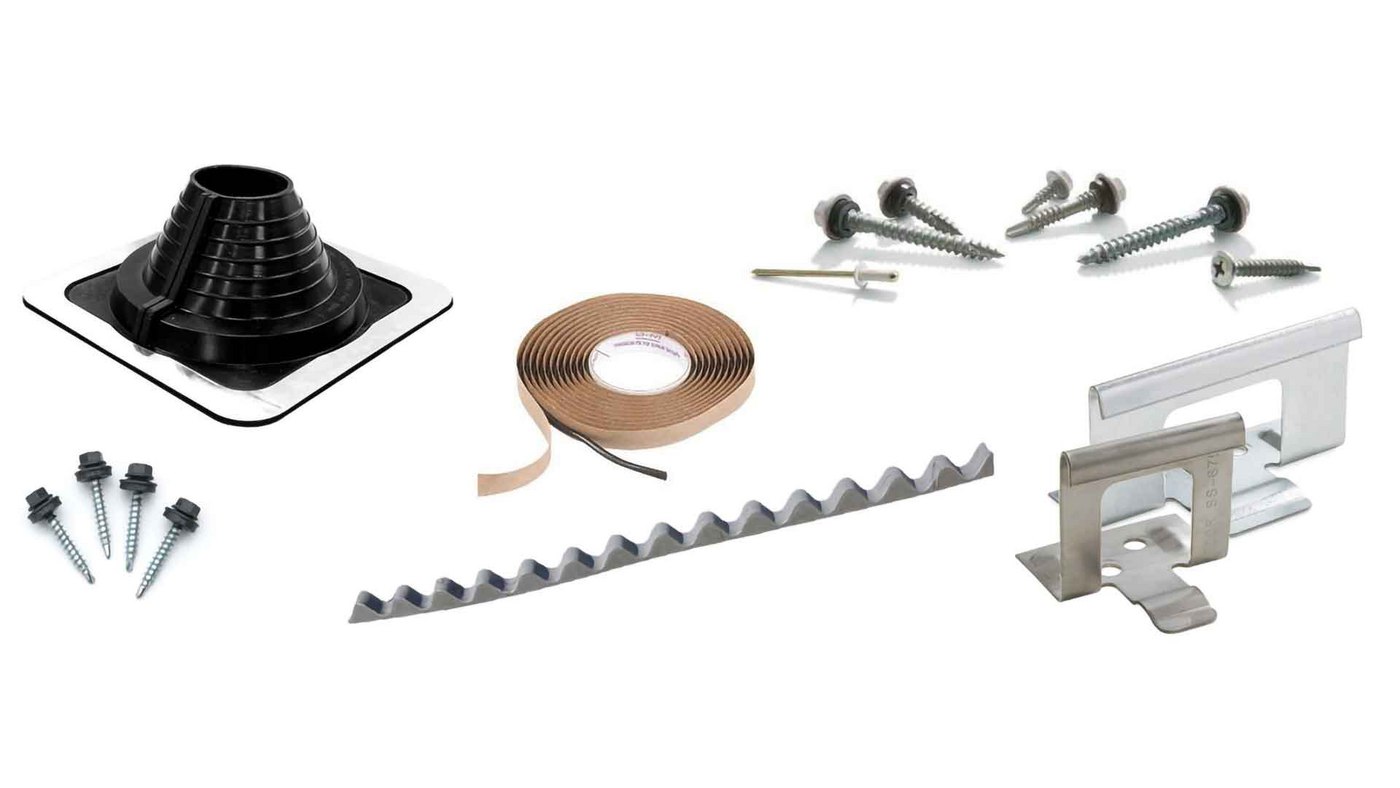

Accessories

Metal roofing fasteners, foam closures, fiberglass panels, trim and flashings, snow retention systems, galvanized square tube, rubber pipe boots, butyl sealant tape, ridge vent, solar solutions, more…..

Learn More

Do You Have Questions about metal roofing? We have the answers.

The Metal Roofing Learning Center

It's a great resource for contractors, architects, and homeowners.

Easy to navigate learning center with videos and blogs that will answer your questions.

Installation Videos
Panel Comparisons
Cost
Much More

Visit Now

ARTICLES DIRECT FROM THE LEARNING CENTER

Everything You Need To Know About Standing Seam

How To Use A 4 Station Seamer Tool

Step by step installation instructions that show how to use a roof seaming machine for a double lock connection.

Watch Video

Single Lock v. Double Lock

Mechanically seamed standing seam panels are connected by using a roof seamer. The panels are joined together with a single lock or double lock system.

Find out which system is best for you.

Learn More

Snap Lock Standing Seam v. Mechanical Seamed Panels

These are the two best performing types of standing seam metal roofing. However, there are times when one will work better then the other.

Head to head comparison that discusses the pros and cons of both panel systems.

Learn More

What are striations, stiffening ribs, and pencil ribs?

Adding structure to your panel is a great way to minimize oil canning. In this video we discuss clip relief, striations, stiffening ribs, and pencil ribs.

Watch Video

Standing Seam Vs Corrugated - Pros & Cons + Cost

The first step when choosing a metal roofing panel is to decide whether you will use an exposed fastener panel or a standing seam panel.

This video provides a head to head comparison of both panel systems. By the end of this video you will know which panel system is best for your roof.

Watch Video

What is Oil Canning?

Have you ever seen a metal roof that looked like it was wrinkled? This is known as oil canning and it's common on standing seam metal roofs.

Oil canning on a standing seam metal roof is an aesthetic issue only. Striations, stiffening ribs, and clip relief can disguise the appearance of oil canning on your metal roofing panels.

Watch Video

Let your imagination run wild!

Choose Different Textures, Colors, Finishes, and Panel Types On Your Home Before You Decide.

Visualize Your Building
