MS2® MECHANICALLY SEAMED ROOFING

Floating Valley Flashing - Part #WS-129

Floating valley means that the standing seam panels aren't pinned in place at the valley. This allows for expansion and contraction. If you have a floating valley, you will need a fixed connection at the other end of the standing seam panel.

This is the most popular valley detail that we supply

Valley trim is a raised section at the lowest point of the valley that's designed to keep water from moving up the opposite slope and penetrating the roof. Valley trim is installed prior to the installation of the metal roofing panels. The valley of a metal roof is an area created by two intersecting slopes.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/ms2-wsd-w22.jpg

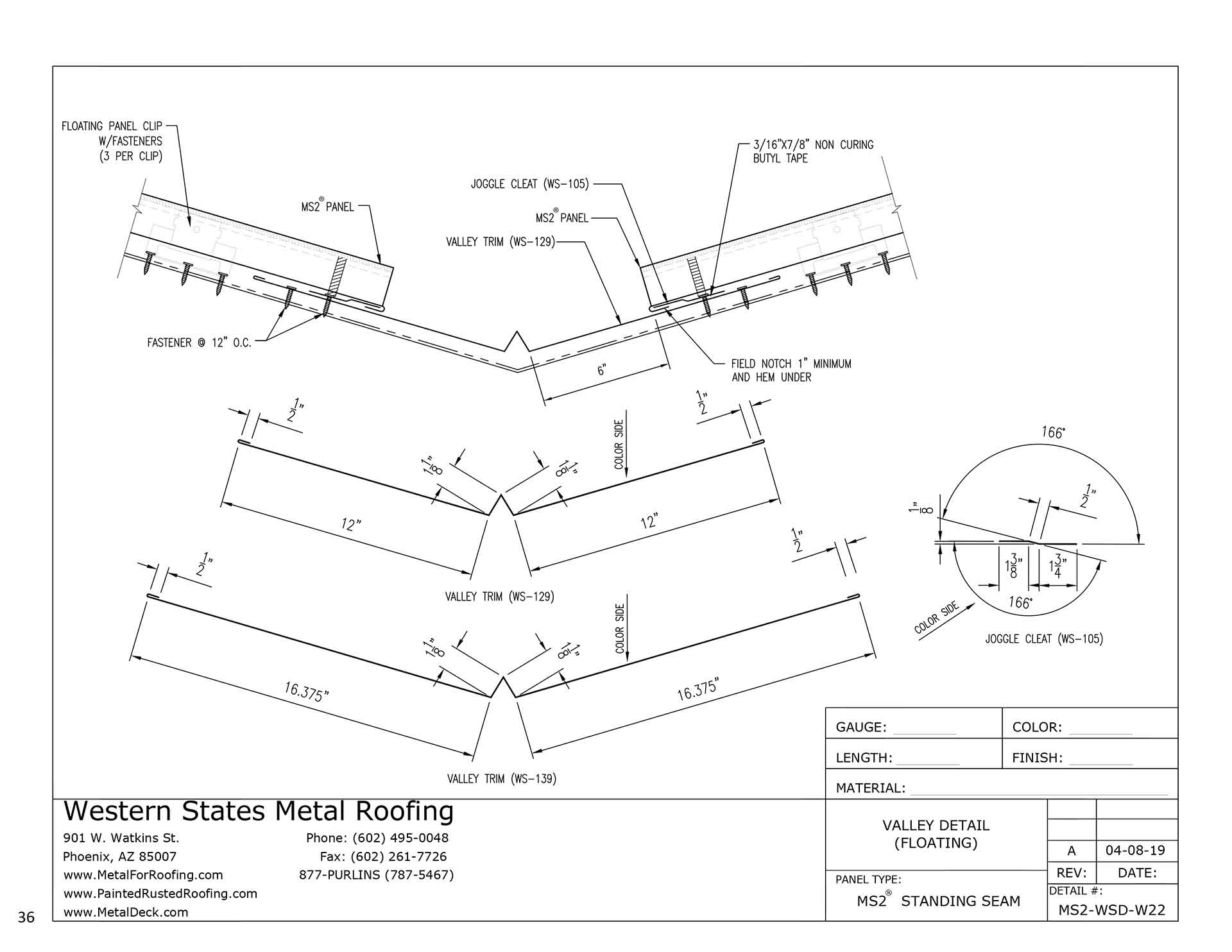

WS-129 Floating Valley Flashing Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-129-1.jpg

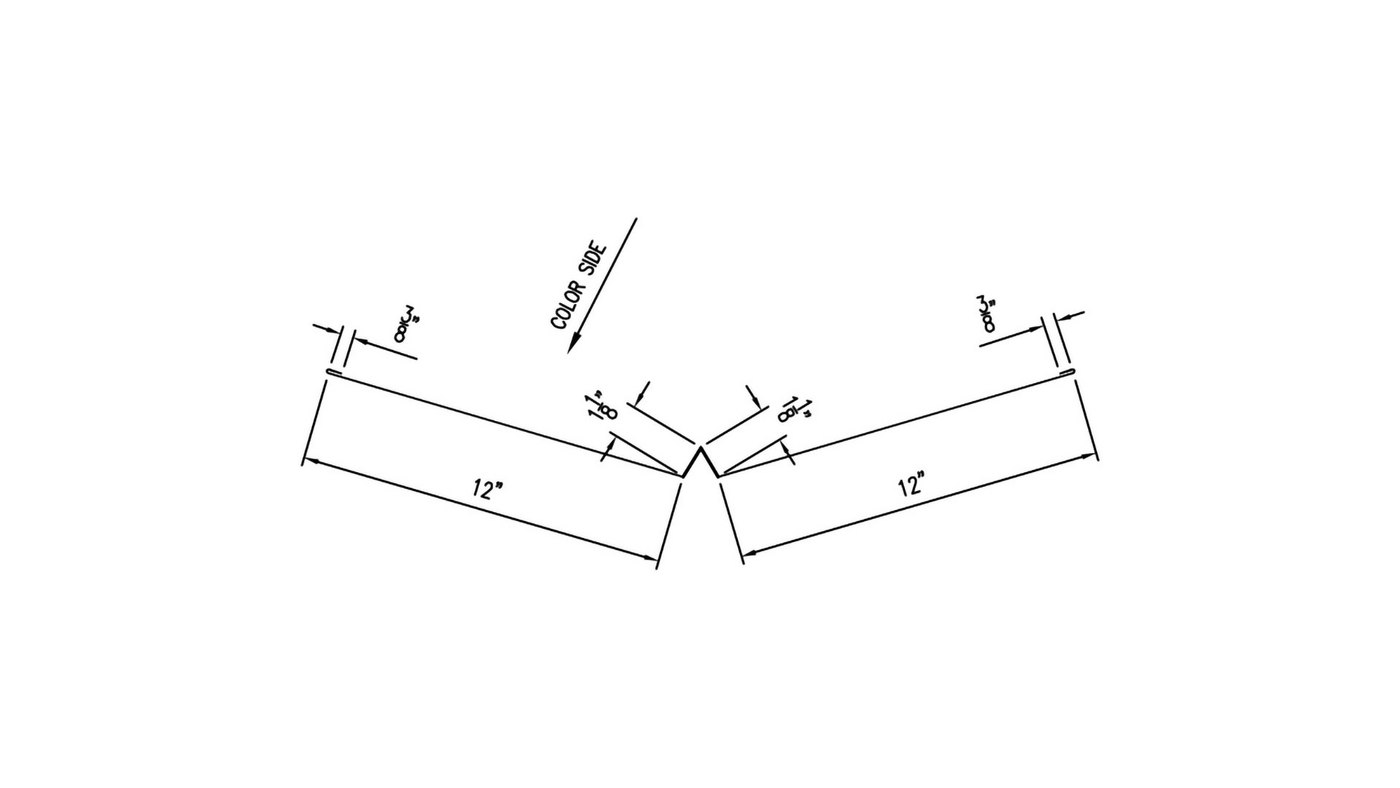

WS-129 Floating Valley Flashing Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-105-1.jpg

WS-105 Joggle Cleat Dimensions

For every 10' of valley flashing, you will need 20' of joggle cleat.

Click To Enlarge

WS-129 - FLOATING VALLEY - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

1 Piece Valley Flashing - WS-129
Roof Pitch Required (Both Sides)
2 Pieces Joggle Cleat - WS-105
40 Pancake Head Screws (#10X1") NO Washer
Verify Metal To Wood
20 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
1/2 Tube Butyl Sealant
1/2 Tube Silicone Sealant
Additional 10 Linear Feet Of 48" Wide Sharkskin Ultra SA - Self Adhesive Roofing Underlayment
We recommend an additional layer of underlayment at the valley condition. You will need the normal underlayment on the wood substrate plus an additional layer of underlayment at the valley
