MS2® MECHANICALLY SEAMED ROOFING

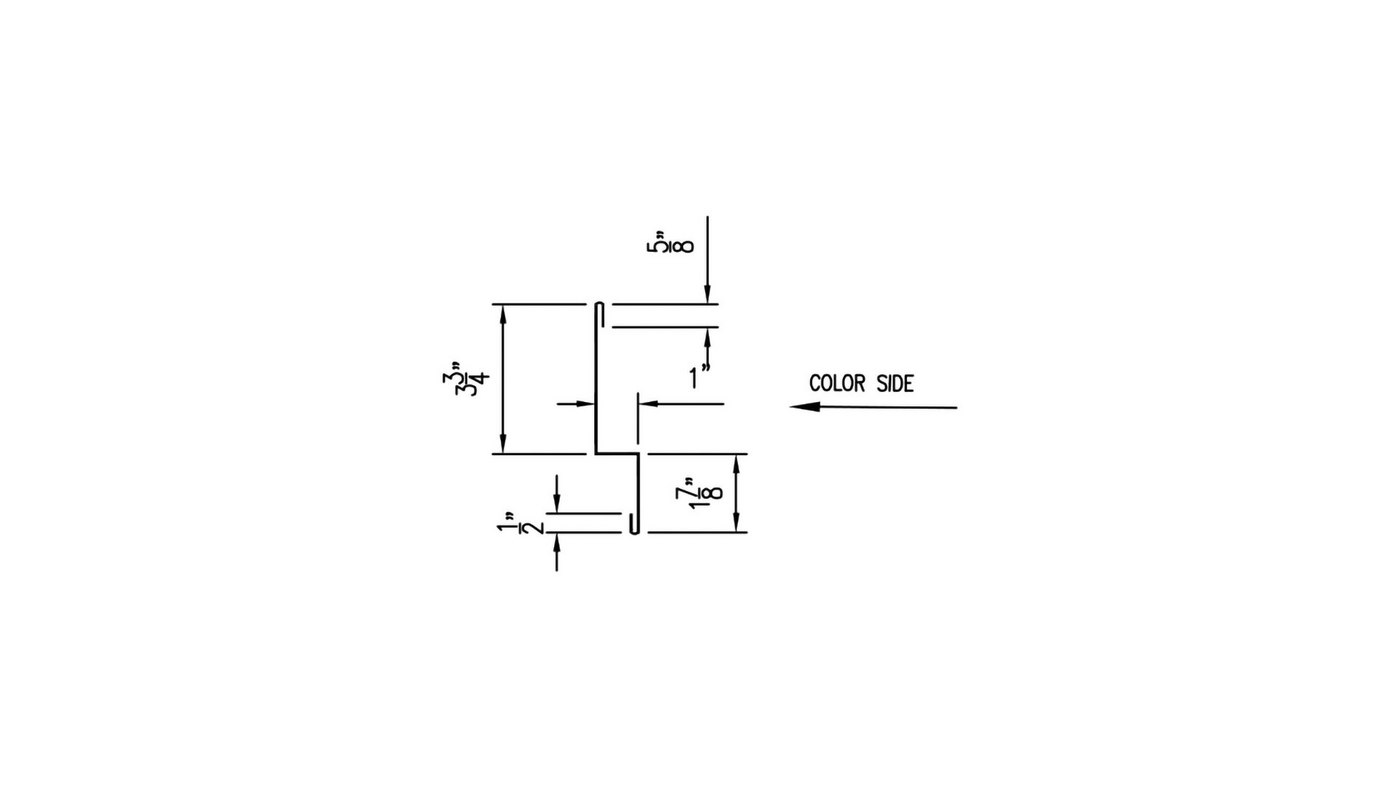

Sidewall/Rake Wall - Part #WS-123

Sidewall flashing is installed on a vertical wall on the gable side of a metal roof. The purpose of sidewall trim is to keep the water from dripping down the wall and leaking into the roof. It can be installed with or without a reglet trim.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/ms2-wsd-w16.jpg

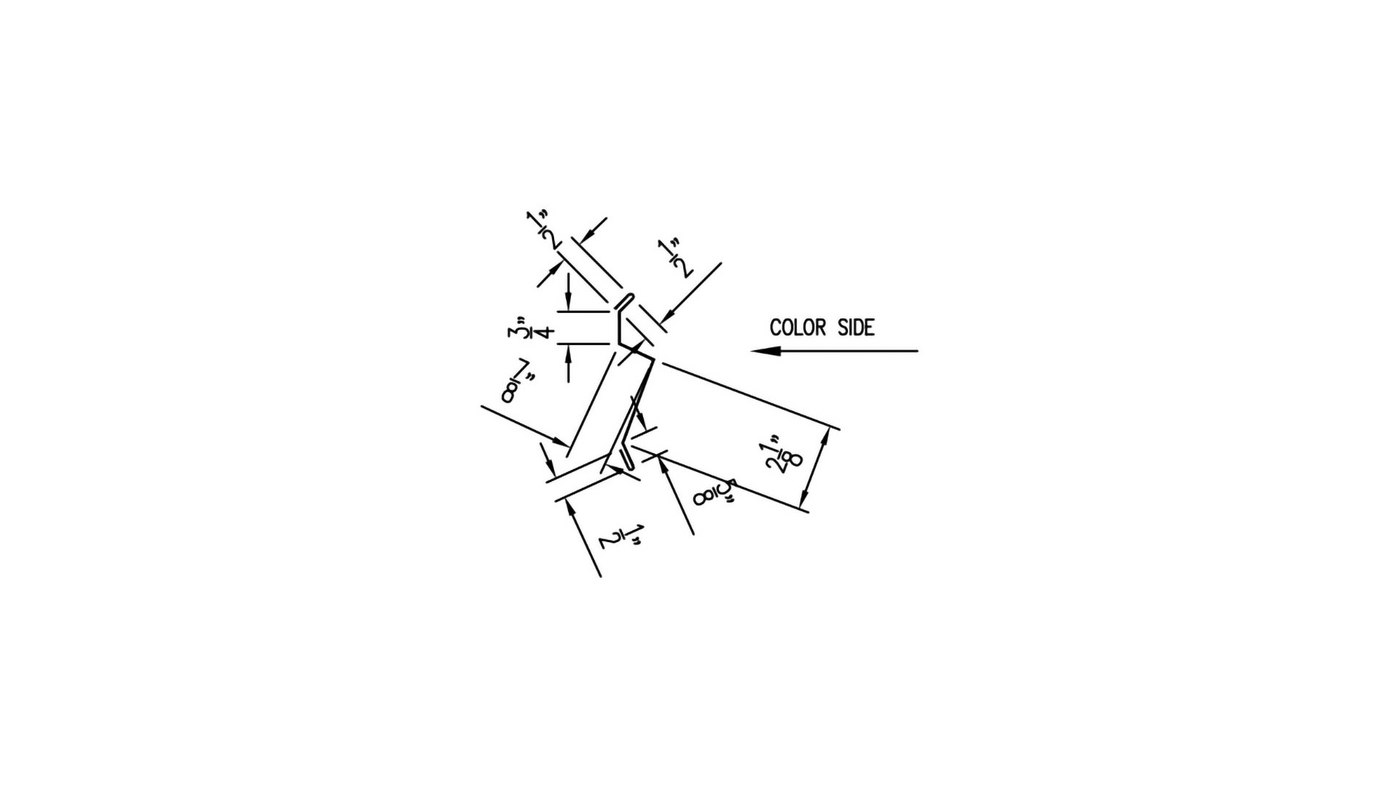

WS-122 Reglet Dimensions

For every 10' of sidewall, you will need 10' of reglet trim.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-110-1.jpg

WS-110 Receiver Trim Dimensions

For every 10' of sidewall, you will need 10' of receiver trim.

Click To Enlarge

WS-123 - SIDEWALL/RAKE WALL - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

1 Piece Sidewall Flashing - WS-123
1 Piece Receiver Trim - WS-110
1 Piece Reglet Trim - WS-122
10 Pancake Head Screws (#10X1") NO Washer
Verify Metal To Wood
10 Rivets
1 Tubes Of Butyl Sealant
1/4 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.

We recommend:

DOWNLOAD INSTALLATION GUIDE
