MS2® MECHANICALLY SEAMED ROOFING

Half Valley - Fixed - Part #WS-132

Fixed half valley means that the standing seam panels will be pinned in place at the valley. If you have a fixed point at the half valley, you will need a floating connection at the other end of the standing seam panel.

Most of the jobs that we supply have a floating half valley. This detail is not used that often.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/ms2-wsd-w24.jpg

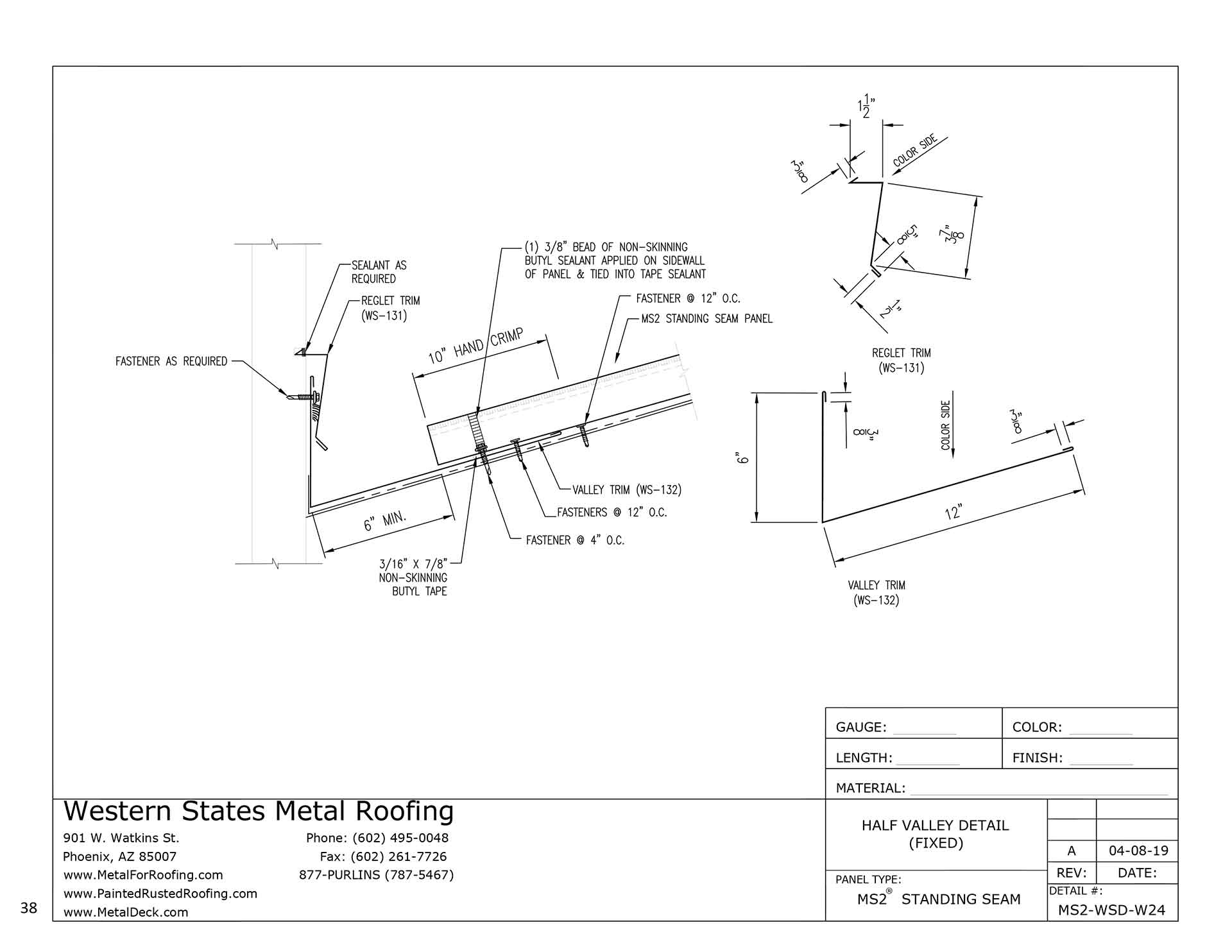

WS-132 Half Valley - Fixed Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-132-1.jpg

WS-132 Half Valley Fixed - Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/ms2/MS2-WS-131-1.jpg

WS-131 Reglet Trim Dimensions

For every 10' of half valley flashing, you will need 10' of reglet trim.

Click To Enlarge

WS-132 - HALF VALLEY - FIXED - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

1 Piece Valley Flashing - WS-132
Roof Pitch Required
1 Piece Reglet Trim - WS-131
10 Pancake Head Screws (#10X1") NO Washer
Verify Metal To Wood
10 Screws With Sealing Washer
Verify Metal To Wood
10 Linear Feet Of Double Sided Butyl Tape, 3/16" X 7/8"
1 1/4 Tube Butyl Sealant
1/2 Tube Silicone Sealant

WSMR Recommends the use of a water barrier or underlayment prior to the installation of the trim components or metal roofing panels.
