MS2® MECHANICALLY SEAMED ROOFING

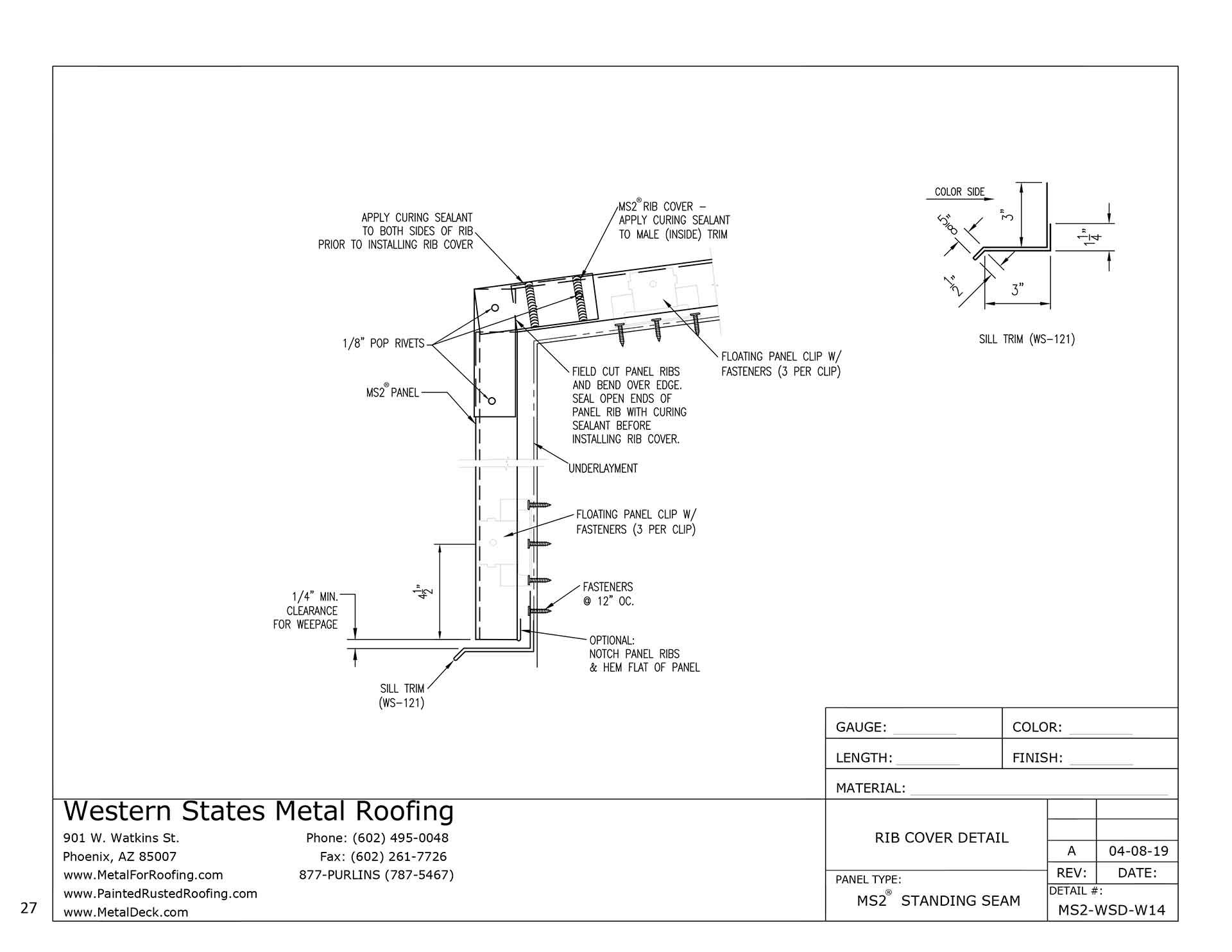

Knee/Rib Cover - Detail For MS2

Knee and rib covers are used when you have a building that has standing seam roofing and wall panels. It covers the gap where the roof and wall panels meet. The standing seam panels must be the same width and must be in perfect alignment.

TURN DOWN/KNEE - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

  • 7 Pieces Knee/Rib Cover - WS-406
  • 1 Piece Sill Trim - WS-121
  • 10 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 42 Rivets
  • 1 Tube Of Butyl Sealant
Just in case you forgot

ADDITIONAL ITEMS YOU MAY NEED...
