LOOKING FOR CORRUGATED METAL SIDING INSTALLATION VIDEOS?

INSTALL LIKE A PRO

Jamb Trim For 7/8" Corrugated Metal Siding

Jamb Trim - Part #WS-3-78U

What Is Metal Jamb Trim?

The term jamb means the frame of a window or a door. Metal jamb trim is installed vertically along the sides of a window or wall opening. It's similar to head trim with the key difference being it has a return versus a hem at the bottom.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/part-ws-3-78u-jamb-trim-1.jpg

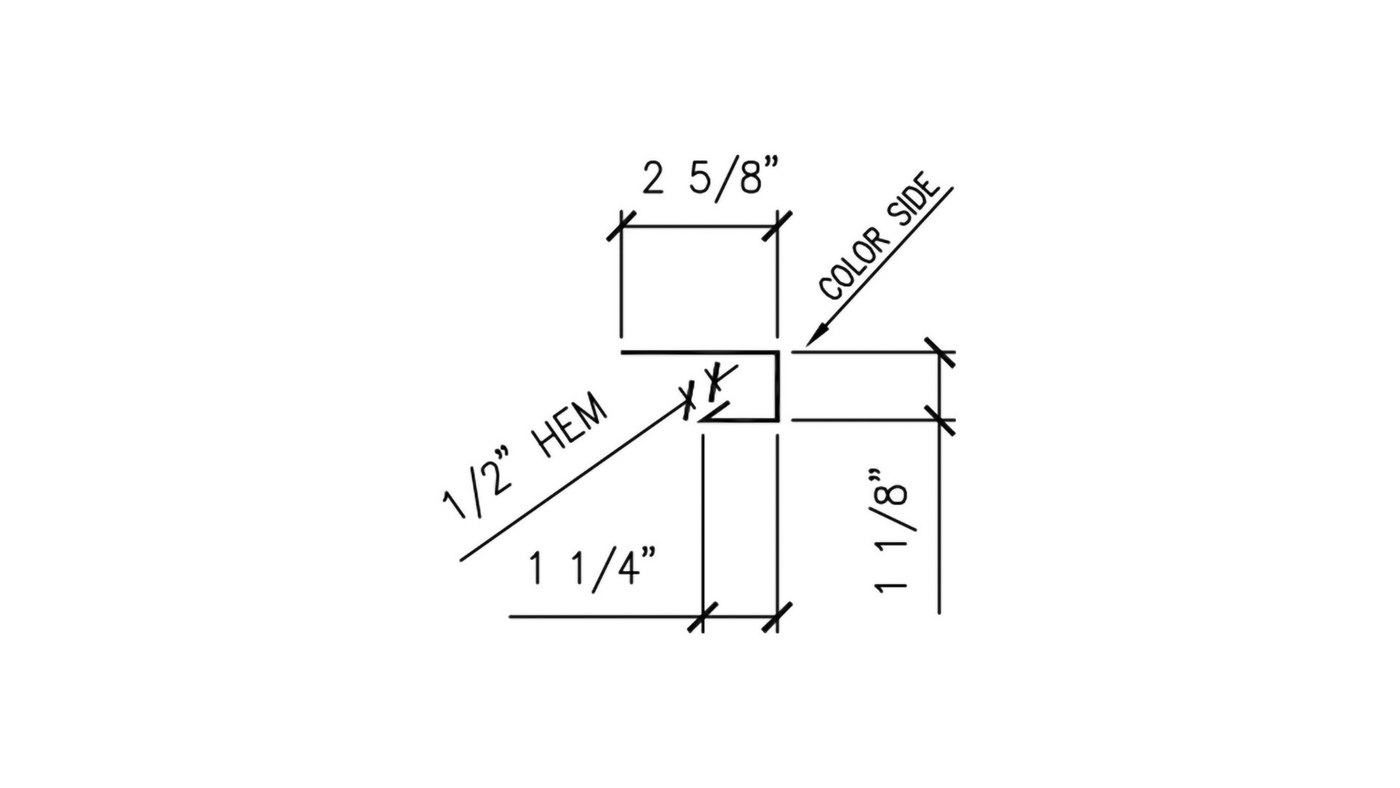

WS-3-78U Jamb Trim Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/detail-wsd-w13.jpg

WS-3-78U Jamb Trim Detail

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/corrugated-wsd-w14-isometric-wall-detail.jpg

WS-3-78U Isometric Jamb Trim Detail

Click To Enlarge

WS-3-78U - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Jamb Trim - WS-3-78U
  • 10 Pancake Head Screws (#10X1") NO Washer

DOWNLOAD INSTALLATION GUIDE

7/8" CORRUGATED METAL SIDING INSTALLATION VIDEOS

Jamb Trim Installation For Metal Siding


How To Install Door Jamb Trim For Corrugated Metal Siding

Step by step jamb trim installation for an exterior door.

Watch Now


How To Install Jamb Trim Around A Window Opening

When installing corrugated metal siding you will need to install metal jamb flashing around a window. Step by step window jamb flashing installation instructions

Watch Now
