Inside Corner For Board & Batten Metal Siding

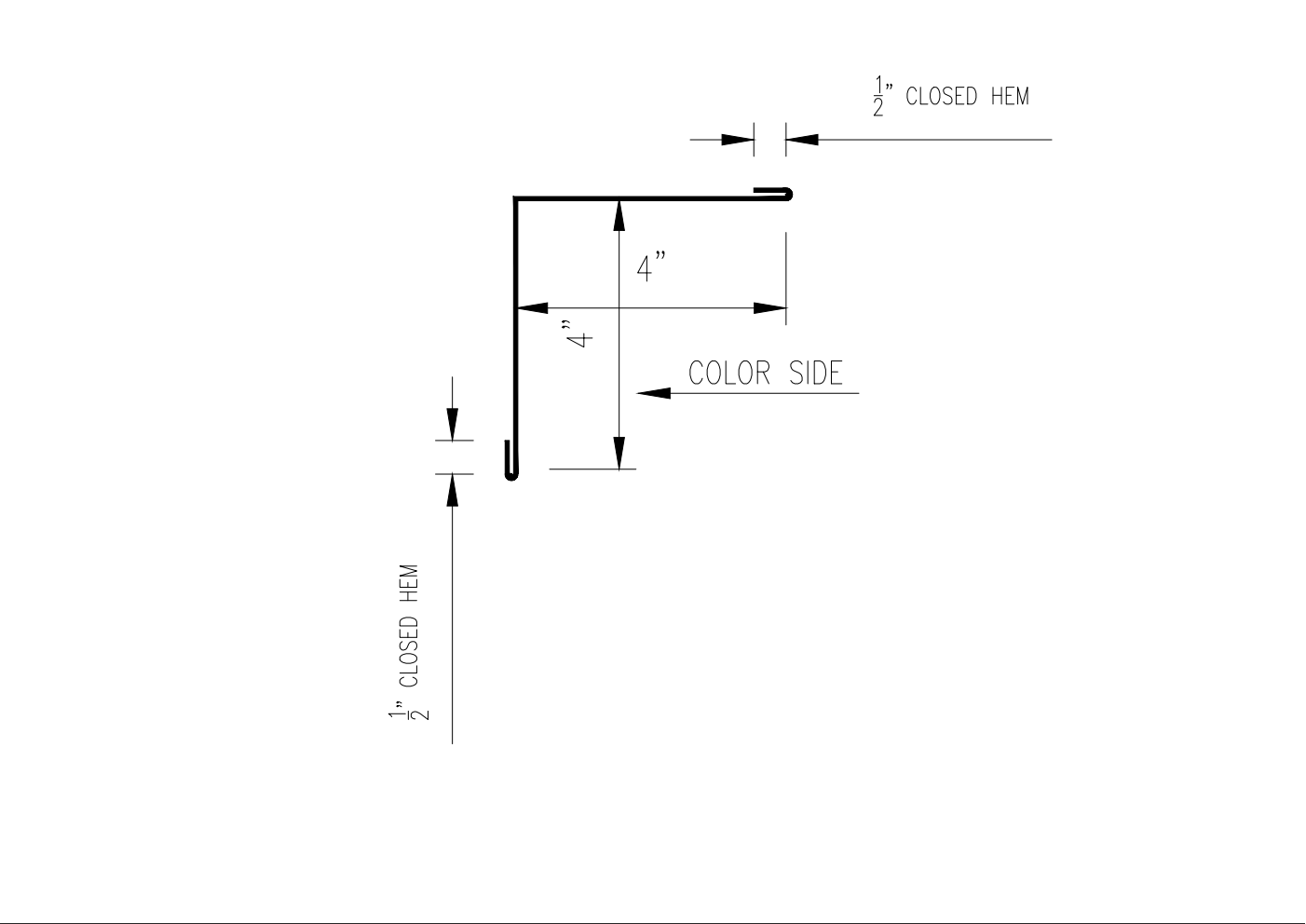

Inside Corner Trim - # WS-1206

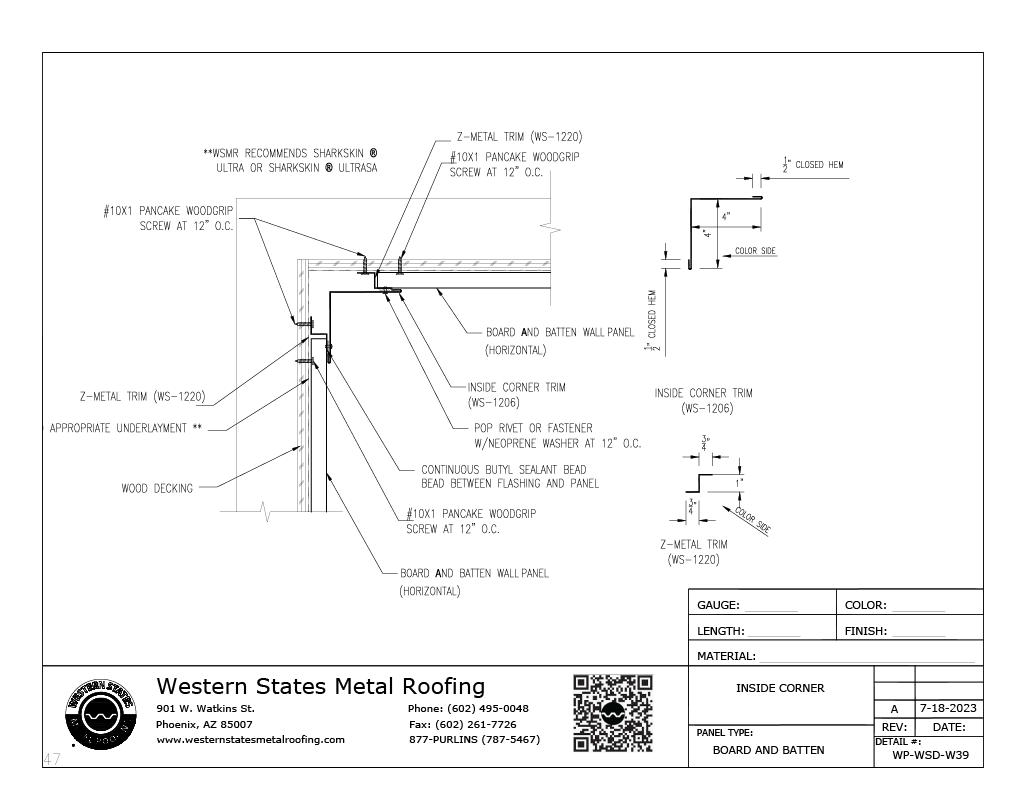

Inside Corner Trim - Horizontal Installation

Detail #WR-WSD-W39

We offer two different types of inside corner trim, but this is the easiest one to install. The trade-off is that it has exposed rivets. This installation detail is different when the panels are installed vertically versus horizontally. This installation detail is for a horizontal wall panel only.

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/board-batten-trim-flashing/trim-details/bb-wp-wsd-w39.png

INSIDE CORNER TRIM DETAIL - HORIZONTAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.
