RIDGE CAP FOR 7/8" CORRUGATED METAL ROOFING

Die Formed Ridge Cap - Part #WS-21

What Is Die Formed Ridge Cap?

Die formed ridge cap is corrugated to match the profile of the metal roofing panel. It's difficult to install and both ends of the ridge need to line up perfectly or it will not nest. It's not recommended for roofs with a pitch that's greater than 6" in 12"

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/part-ws-21-die-formed-ridge-cap-1.jpg

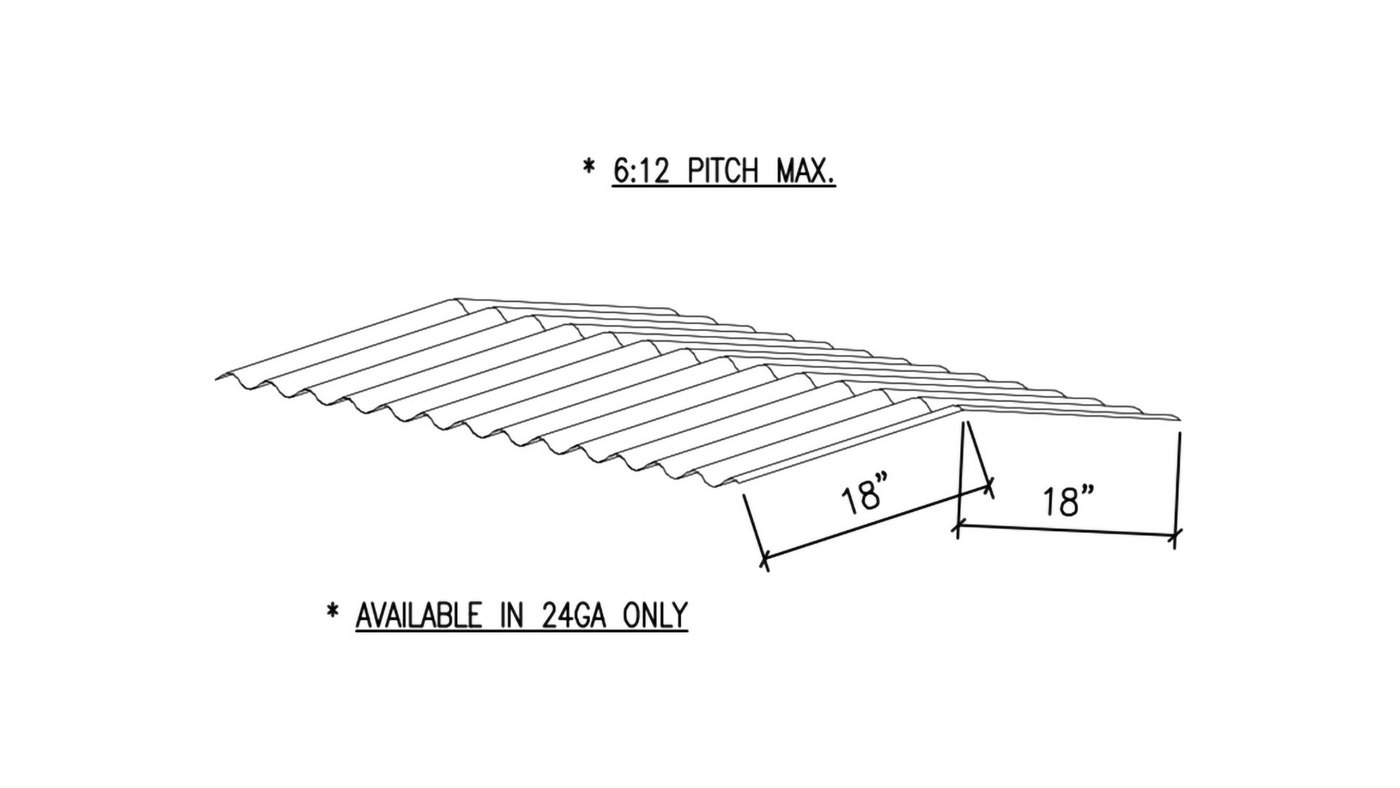

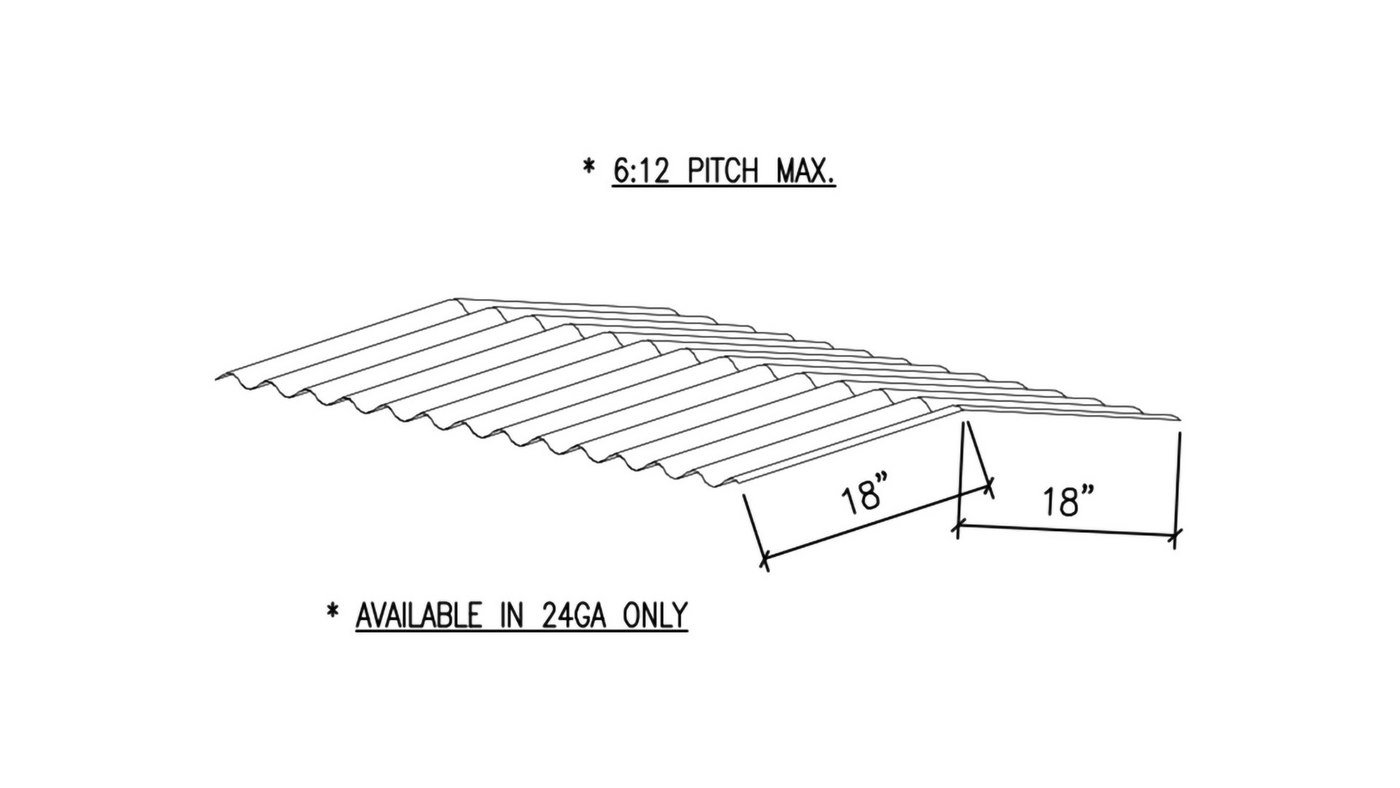

WS-21 Die Formed Ridge Cap Dimensions

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/detail-wsd-fr6.jpg

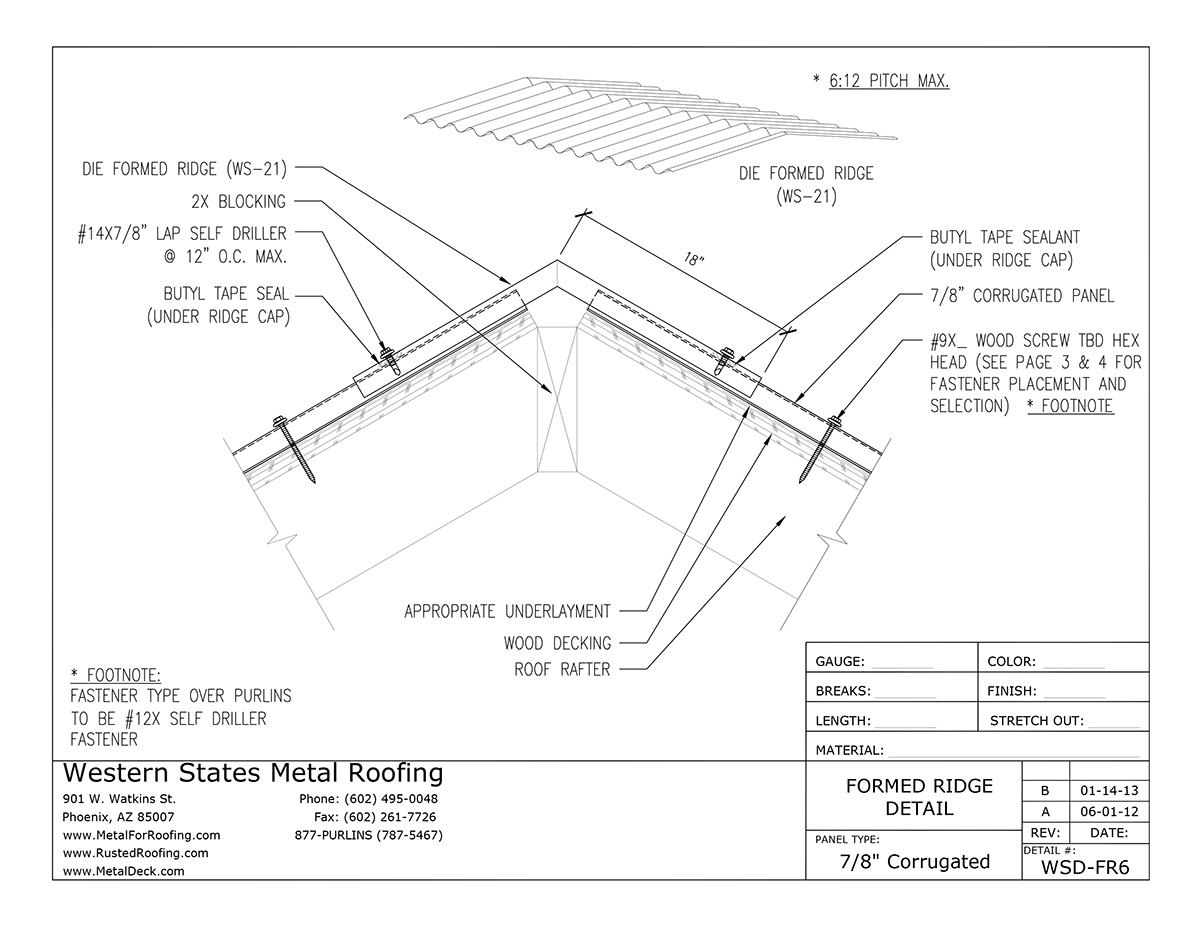

WS-21 Die Formed Ridge Cap Detail

CLICK TO ENLARGE

WS-21 - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

Components List

  • 1 Piece Ridge Cap Trim - WS-21
    Roof Pitch Required/6" in 12" Maximum Roof Pitch
  • 16 Lap Screws (Metal to Metal) With Sealant Washer
  • 10 Linear Feet Of Double Sided Butyl Tape

DOWNLOAD INSTALLATION GUIDE
