LOOKING FOR CORRUGATED METAL ROOFING INSTALLATION VIDEOS?

INSTALL LIKE A PRO

Gutter FOR 7/8" CORRUGATED METAL ROOFING

Gutter End Caps - Part #WS-14

What Is A Gutter End Cap?

A gutter end cap is a piece of metal that closes off the ends of a gutter. Most jobs will require a right and a left end cap for each run of gutter. The end caps are attached to the gutter with rivets.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/part-ws-14-box-gutter-end-cap-1.jpg

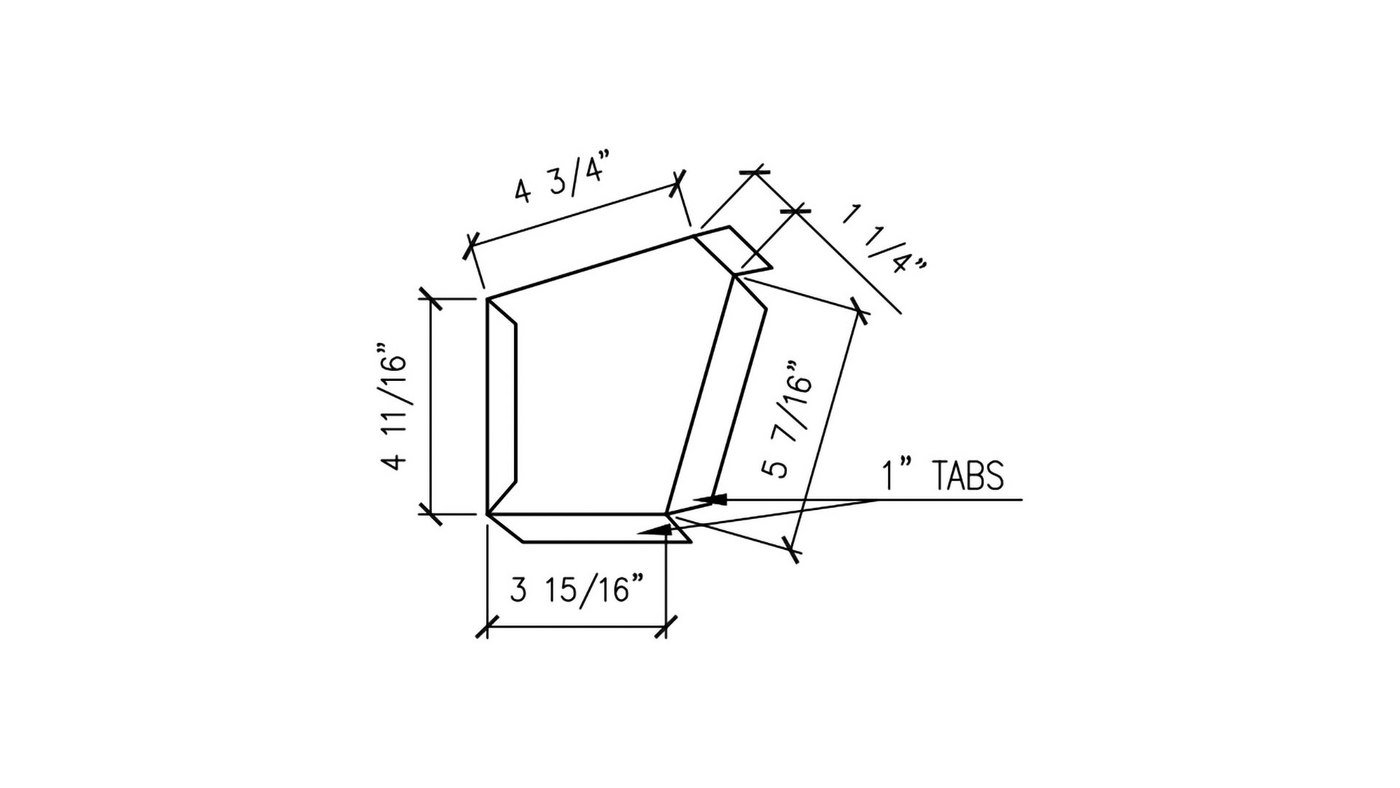

WS-14 Gutter End Cap Dimensions

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/part-ws-13-splice-for-box-gutter-1.jpg

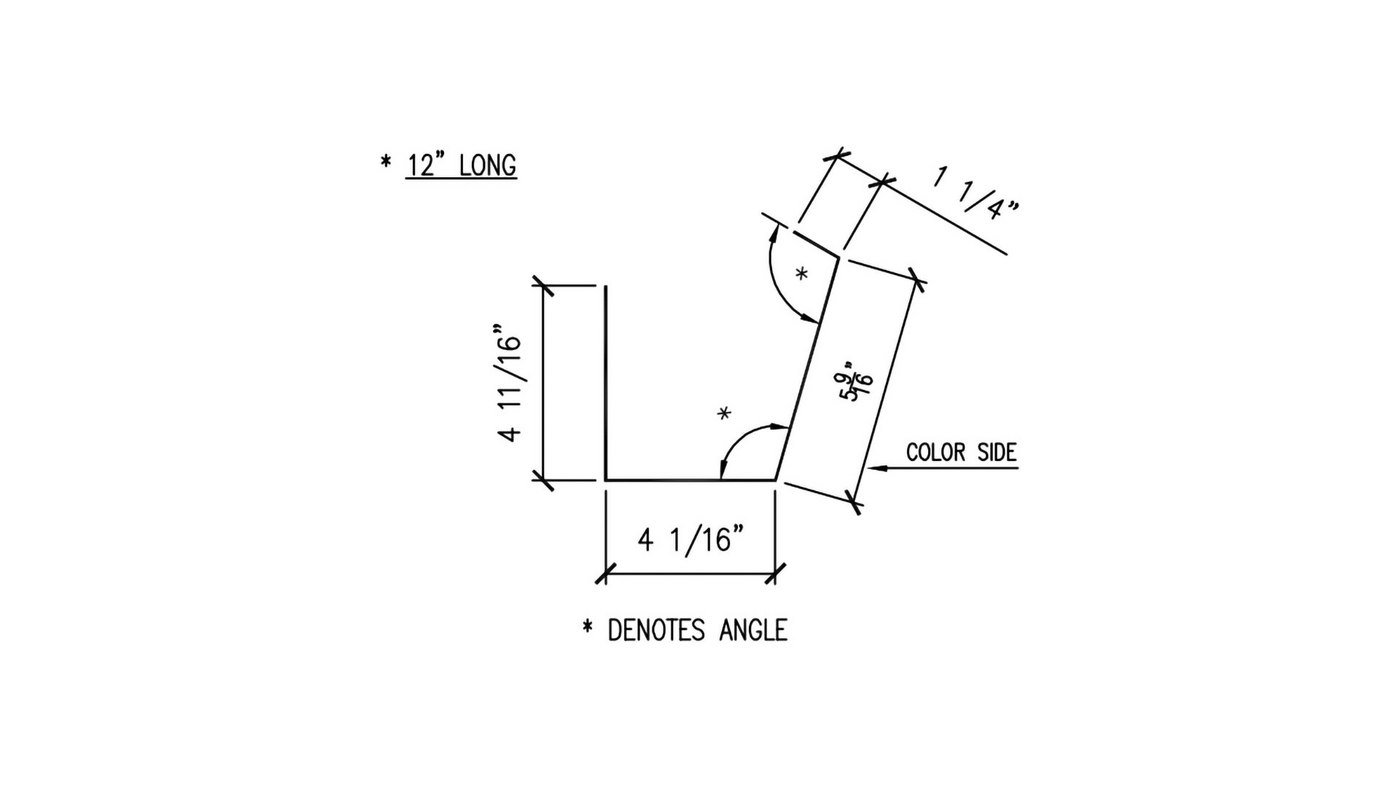

WS-13 Gutter Splice Dimensions

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/corrugated/part-ws-12-gutter-strap-1.jpg

WS-12 Gutter Strap Dimensions

CLICK TO ENLARGE

How To Install Pre-Hung Box Gutters

Gutter Installation Video

Step by step pre-hung box gutter installation instructions that includes downspout outlet, end caps, gutter splice, and fastening. This video covers an exposed fastener metal roofing panel.

pre-hung-box-gutter-installation

Additional Gutter And Downspout Installation Videos


Gutter Splice Installation

If you have a gutter that is longer about twenty feet then you will have to overlap the gutter with a gutter splice. It's a simple installation that requires a small piece of gutter splice to be installed where the two pieces of gutter meet.

Watch Now


Downspout Outlet/Dropout Installation

Step by step installation instructions that show you how to attach downspout drop outlet to a gutter system.

Watch Now


Post-Hung Gutter Installation

Are you installing gutters on a metal roof after the roof is already installed? Post hung box gutters are a good solution for adding gutters to a metal roof.

Watch Now


Downspout Installation

Step by step downspout installation instructions that include elbows, downspout strap, and fastening.

Watch Now
