Board & Batten Metal Siding Parapet

Parapet Cap - # WS-1211

Parapet Wall Cap - Vertical Installation

Detail # WP-WSD-W10

A metal parapet cap is used when you have a wall that has metal panels on both sides of the wall. The parapet cap covers the wall and both ends of the metal panels. It creates a uniform look and prevents water intrusion.

This installation detail is for a vertical metal wall panel only. It should not be used for horizontal metal wall panels.

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/board-batten-trim-flashing/trim-details/bb-wp-wsd-w10.png

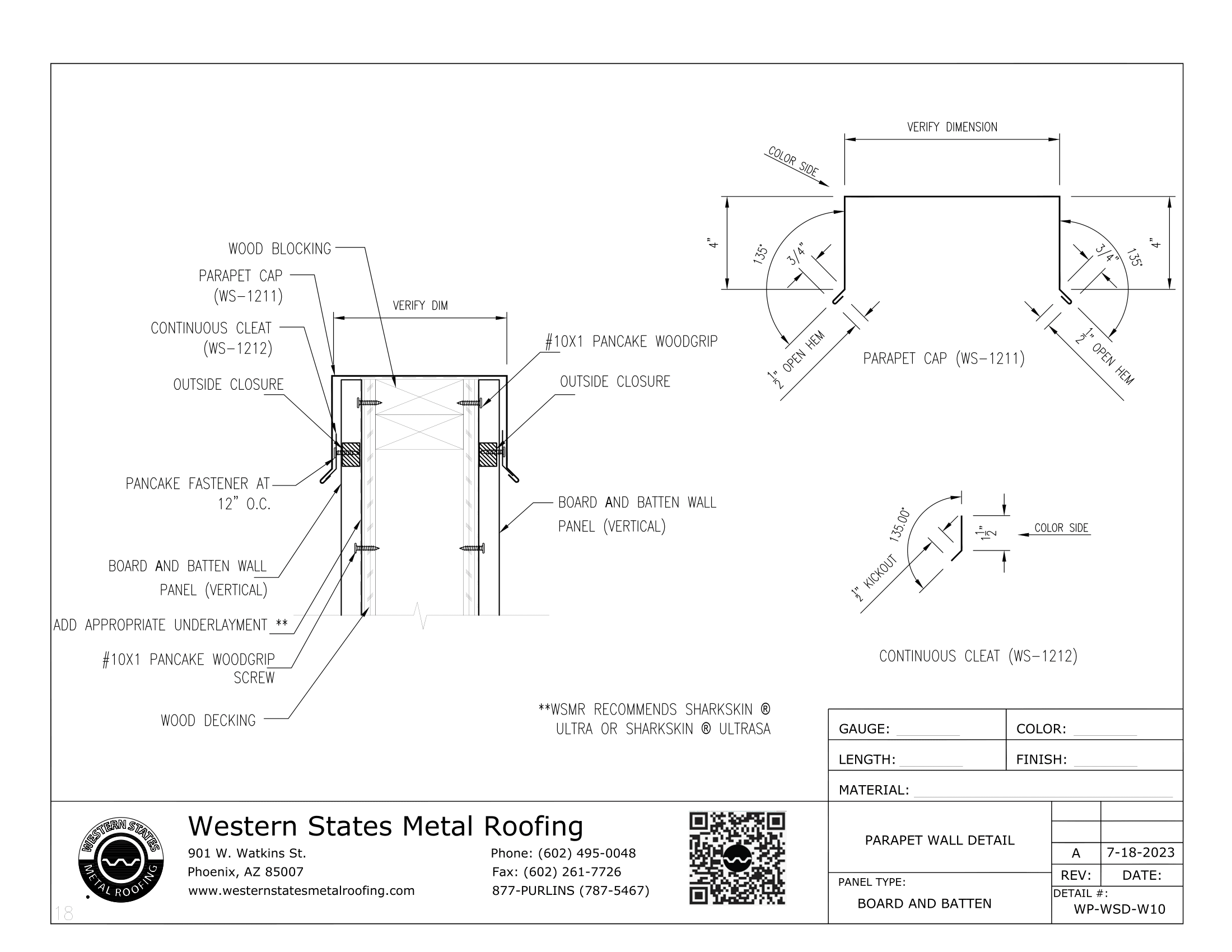

Parapet Wall - Vertical Installation - Detail

CLICK TO ENLARGE

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/board-batten-trim-flashing/trim-parts/bb-wsd-ws-1211.png

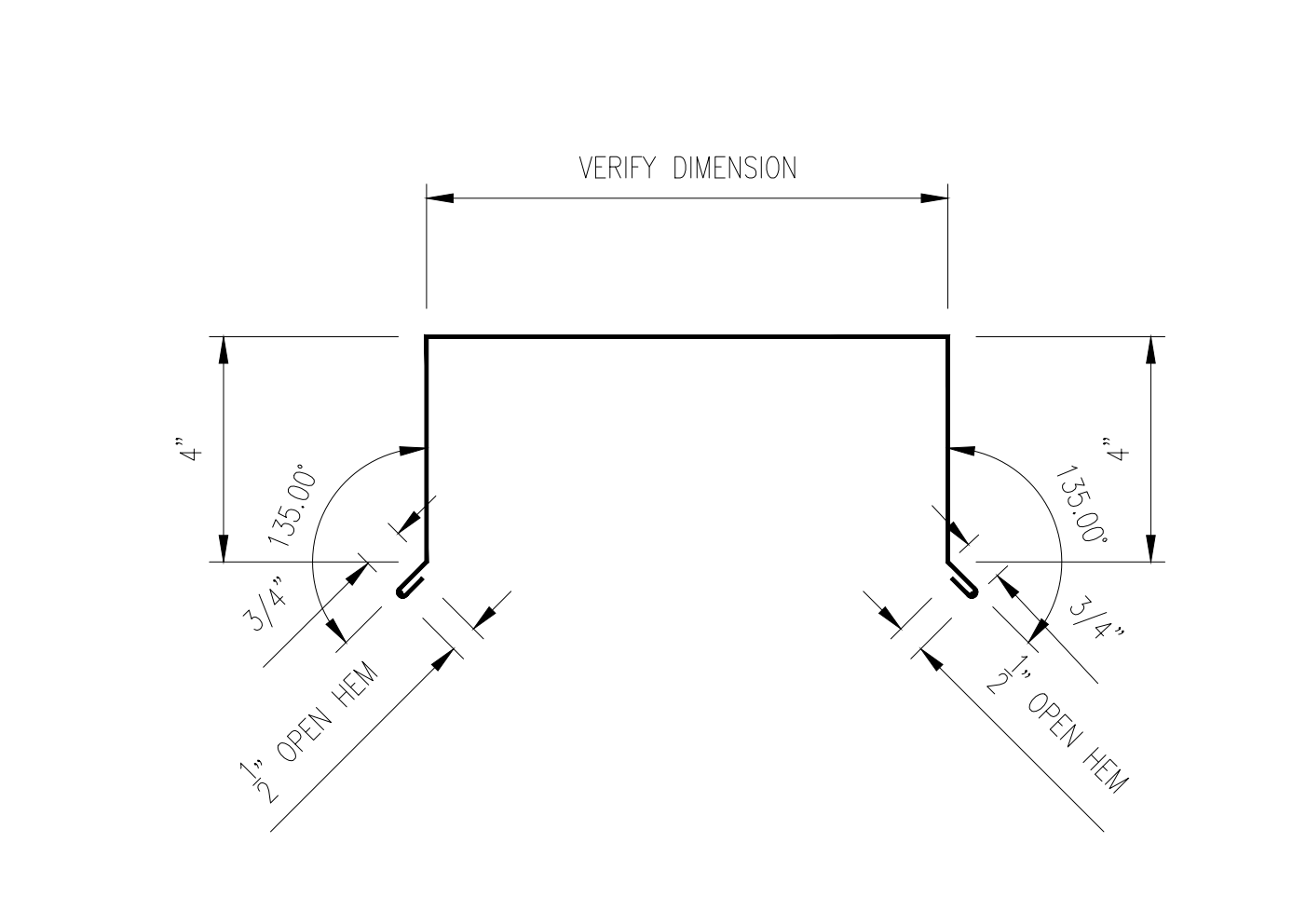

WS-1211 Parapet Cap Dimensions

CLICK TO ENLARGE

https://6069238.fs1.hubspotusercontent-na1.net/hubfs/6069238/board-batten-trim-flashing/trim-parts/bb-wsd-ws-1212.png

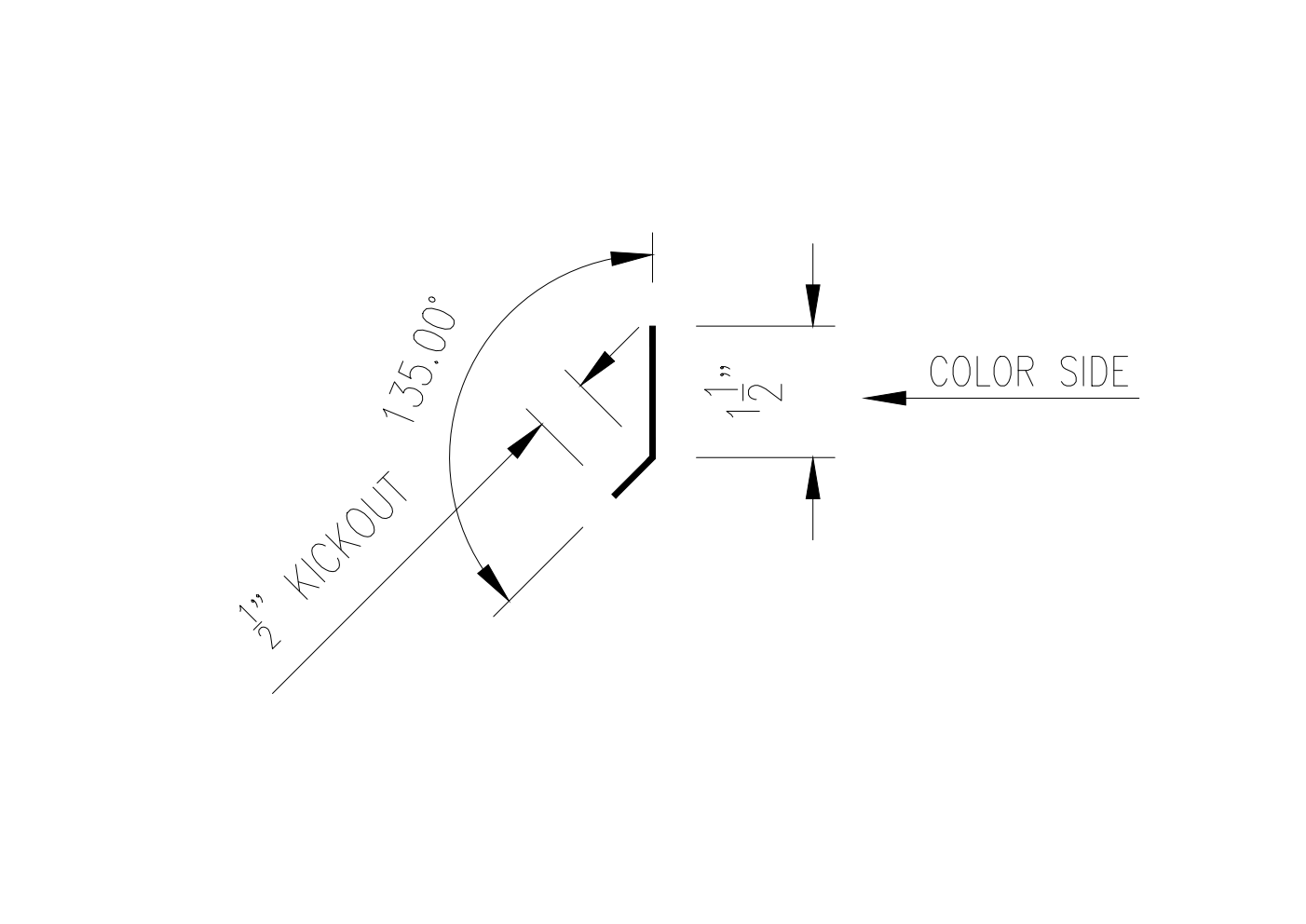

WS-1212 Trim Cleat Dimensions

Click To Enlarge

PARAPET WALL DETAIL - VERTICAL INSTALLATION - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

  • 1 Piece Parapet Cap Flashing - WS-1211
  • 2 Pieces Trim Cleat - WS-1212
  • 20 Pancake Head Screws (#10X1") NO Washer
    Verify Metal To Wood
  • 1 Tube Of Butyl Sealant
  • 3/4" Deep Outside Foam Closures - 20 Lin. Ft.

DOWNLOAD INSTALLATION GUIDE
