Soffit To Horizontal Wall Installation

Detail # WP-WSD-SW5/W18

You will need to use this detail when you have horizontal Western Wave® wall and soffit panels. This is the flashing that's used where the two panels intersect. There are two sill flashings shown on this detail. Choose the one that has the most desirable aesthetic for your job as both will work equally well.

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/h-wp-wsd-sw5-soffit-to-wall-drip-detail.jpg

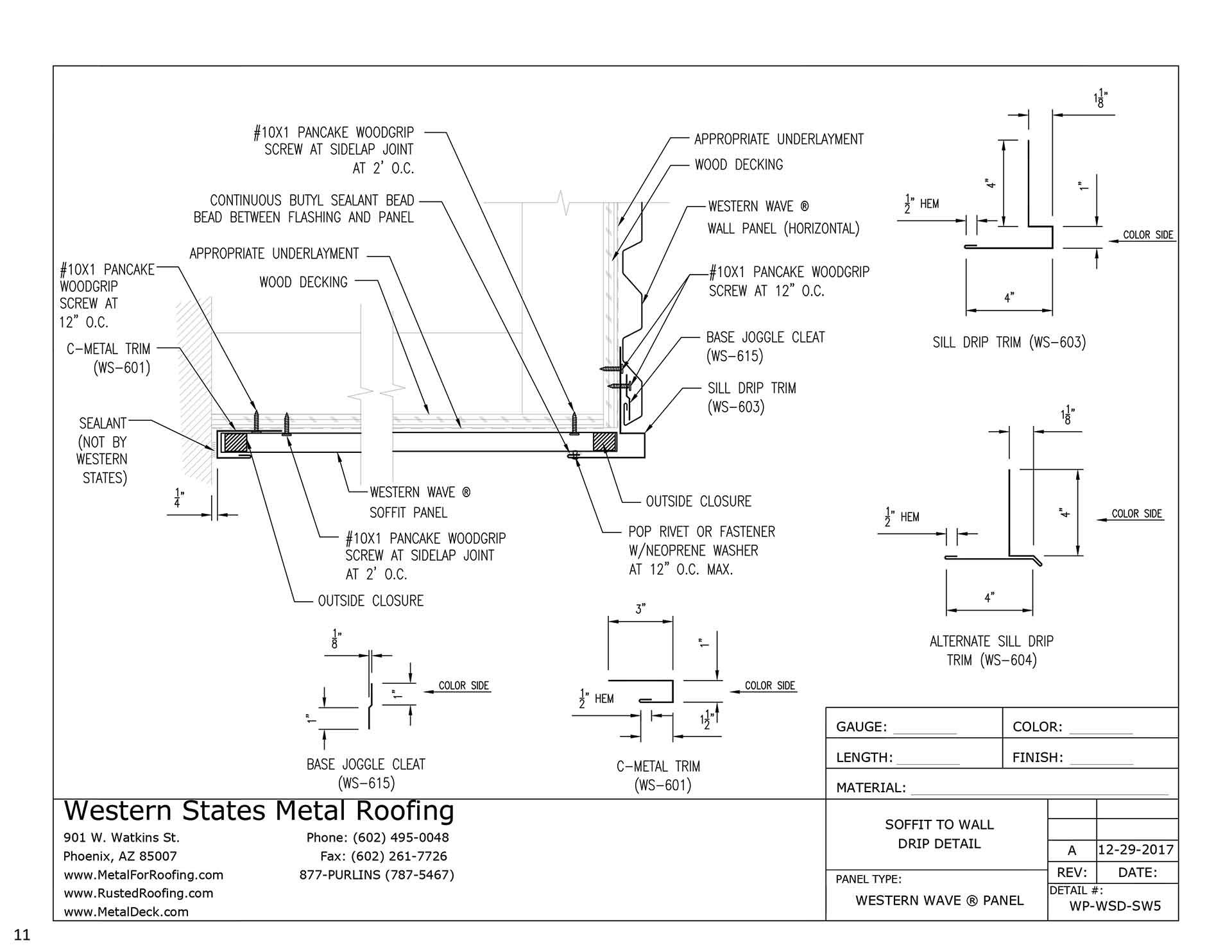

Soffit To Horizontal Wall - Detail

CLICK TO ENLARGE

Soffit To Horizontal Wall - Alternate Detail

Alternate Detail

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/sill-drip-trim-ws-603-western-wave-panel-trim-flashing-1.jpg

WS-603 Sill Trim Dimensions

Choose the type of sill trim that you prefer. Use either part # WS-603 0r WS-604

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/alternate-sill-drip-trim-ws-604-western-wave-panel-trim-flashing-1.jpg

WS-604 Alternate Sill Trim Dimensions

Choose the type of sill trim that you prefer. Use either part # WS-603 0r WS-604

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/c-metal-j-trim-ws-601-western-wave-panel-trim-flashing-1.jpg

WS-601 C-Metal Trim Dimensions

For every 10' of sill trim, you will need 10' of C-Metal.

CLICK TO ENLARGE

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/base-joggle-cleat-ws-615-western-wave-panel-trim-flashing-1.jpg

WS-615 Base Joggle Cleat Dimensions

For every 10' of sill trim, you will need 10' of base joggle cleat.

This part # will be used for detail # WP-WSD-SW5 only.

Click To Enlarge

https://f.hubspotusercontent30.net/hubfs/6069238/images/trim-flashings/western-wave-horizontal/z-metal-trim-ws-605-western-wave-panel-trim-flashing-1.jpg

WS-605 Z-Metal Dimensions

For every 10' of sill trim, you will need 10' of z-metal.

This part # will be used for detail # WP-WSD-W18 only.

Click To Enlarge

SOFFIT TO HORIZONTAL WALL DETAIL - PARTS LIST

This parts list is designed to help you calculate the quantity of accessories that you’ll need for your trim installation. It has all of the accessories that are needed to install 1 full piece of trim, which is 120" long. To calculate the total number of accessories you will need for your job, simply take the number of trim pieces associated with the trim part purchased and multiply the list by that number for a total for your project.

COMPONENTS LIST

1 Piece Sill Trim - WS-603 or 1 Piece Alternate Sill Trim - WS-604
Choose One Only
1 Piece C-Metal Trim - WS-601
1 Piece Base Joggle Cleat - WS-615 or 1 Piece Z-Metal WS-605
Choose One Only
30 Pancake Head Screws (#10X1") NO Washer
Verify Metal To Wood
20 Rivets
8 Pieces Outside Foam Closures
2 Tubes Of Butyl Sealant
